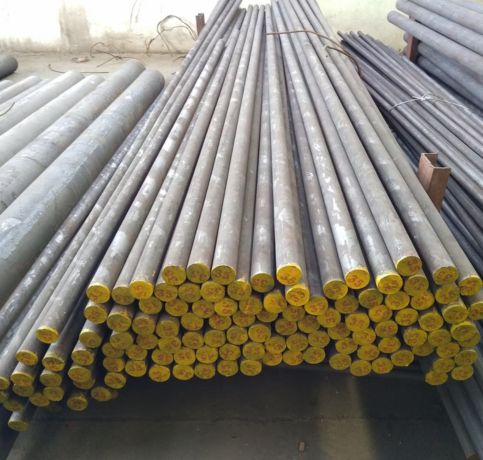

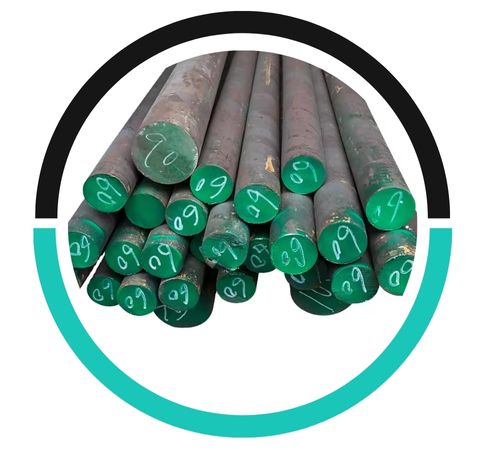

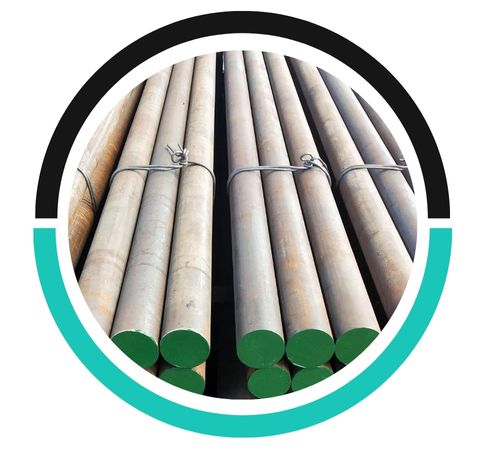

Reputable for producing and supplying high-quality Tool and Die Steel S1 Bars, Neil Metals is based in Kolkata, India. These bars are known for their resilience to impact and durability in harsh working conditions. Neil Metals produces S1 tool steel bars that satisfy both national and international standards with a strong emphasis on quality, accuracy, and client satisfaction. S1 steel is well-known for having exceptional shock resistance, making it perfect for tools that are subjected to high mechanical stress. Neil Metals provides custom-cut solutions and fast delivery to satisfy specific tooling needs in important industries like forging, mining, construction, and heavy engineering.
Reputable for producing and supplying high-quality Tool and Die Steel S1 Bars, Neil Metals is based in Kolkata, India. These bars are known for their resilience to impact and durability in harsh working conditions. Neil Metals produces S1 tool steel bars that satisfy both national and international standards with a strong emphasis on quality, accuracy, and client satisfaction. S1 steel is well-known for having exceptional shock resistance, making it perfect for tools that are subjected to high mechanical stress. Neil Metals provides custom-cut solutions and fast delivery to satisfy specific tooling needs in important industries like forging, mining, construction, and heavy engineering.
| C | Mn | Si | Cr | Ni | Mo | W | V | Cu | P | S |
| 0.40-0.55 | 0.10-0.40 | 0.15-1.20 | 1.00-1.80 | 0.30 | 0.50 | 1.50-3.00 | 0.15-0.30 | 0.25 | 0.03 | 0.03 |
| Properties | Metric | Imperial |
|---|---|---|
| Hardness, Rockwell C (air cooled from 899°C, 30 mins) | 54.5 | 54.5 |
| 56 | 56 | |
| Hardness, Rockwell C (air cooled from 982°C, 30 mins) | 56.5 | 56.5 |
| Modulus of elasticity | 207 GPa | 30000 ksi |
| Charpy impact (V-notch; oil quenched from 954°C; 149°C temper temperature) | 10.8 J | 8.00 ft-lb |
| Charpy impact (V-notch; oil quenched from 954°C; 625°C temper temperature) | 29.8 J | 22.0 ft-lb |
| Machinability (1% carbon steel) | 70.0 – 75.0% | 70.0 – 75.0% |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| AISI / SAE | DIN / W.Nr | UNS | JIS | GB | AFNOR |
| S1 | 1.2550 | T41901 | G4053 | GB/T 3077 | 55 WC 20 |
| Properties | Conditions | ||
|---|---|---|---|
| T (°C) | Treatment | ||
| Thermal expansion | 12.4 x 10-6/ºC | 20-100 | – |
When choosing Tool and Die Steel S1 bars, consider hardness, wear resistance, toughness, machinability, heat treatment capabilities, and the specific requirements of the application to ensure optimal performance and durability.
Tool and Die Steel S1 bars resist corrosion due to their alloy composition, which includes elements like chromium and molybdenum. These elements form a protective oxide layer, enhancing resistance to oxidation and rust.
Die steel and tools About 0.50–0.60% carbon, 2.75–3.25% nickel, 1.20–1.60% manganese, 0.90–1.40% molybdenum, and trace amounts of silicon and vanadium make up S1 Bars, shock-resistant tool steels. These components offer superior durability and impact-resistant crack resistance. After heat treatment, S1 steel usually reaches a hardness of 56–60 HRC and exhibits high tensile strength and ductility. It is appropriate for demanding cold and hot work applications because it works well at both low and high temperatures and has good hardenability and wear resistance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
