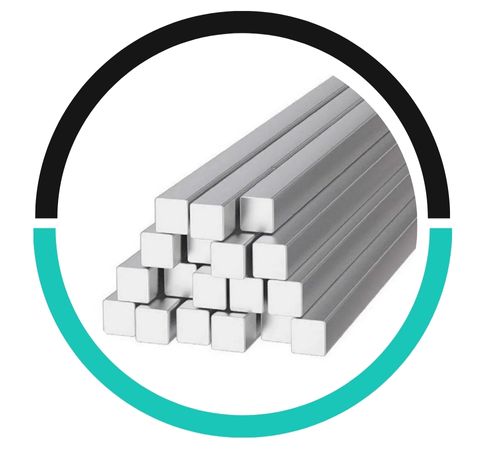

Based in Kolkata, India, Neil Metals is a well-known manufacturer and supplier that specialises in producing premium titanium square bars for demanding engineering applications. These bars, which are made from premium-grade titanium and are well-known for their strength-to-weight ratio, durability, and resistance to corrosion, are perfect for industries that need high-performance materials. Neil Metals offers square bars in a range of sizes and grades, guarantees accuracy in manufacturing, and complies with international quality standards. Supported by a dedication to dependability, prompt delivery, and technical know-how, the business consistently provides excellent service to a wide range of clients in the chemical processing, aerospace, medical, and marine industries.
In Grade 2, titanium square bars are usually 99.2% pure titanium; in Grade 5, they are alloyed with aluminium (6%) and vanadium (4%) (Ti-6Al-4V). These bars have outstanding corrosion resistance, elongation of up to 20%, and tensile strengths ranging from 345 MPa (Grade 2) to 900 MPa (Grade 5). They provide outstanding fatigue strength, low heat conductivity, and non-magnetic qualities while retaining structural integrity in extremely hot and cold temperatures. These bars are appropriate for demanding industrial and biomedical settings due to titanium’s high biocompatibility and oxidation resistance.
| Standard | ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3), AMS4928, MIL-T-9047G, JIS etc |
| Grade | TA1-TA4, TA7-TA10, TA15-TA18, GR1-GR5, GR6,GR7, GR9, GR11, GR12, TI-6AL-4V, TI-6AL-4VELI,GR23 |
| Diameter | 5-350mm |
| Length | Max6000mm |
| Technique | Forging ,Machining |
| Surface | acid surface or polishing, sand blasted surface |
| Shape | Square |
| Application | Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc. |
Hardness, Brinell | 120 | 120 | annealed |
Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
Hardness, Rockwell B | 70 | 70 | annealed |
Hardness, Vickers | 122 | 122 | Estimated from Brinell |
Tensile Strength, Ultimate | 240 MPa | 34800 psi | – |
Tensile Strength, Yield | 170 – 310 MPa | 24700 – 45000 psi | – |
Elongation at Break | 24 % | 24 % | – |
Reduction of Area | 35 % | 35 % | – |
Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
Compressive Modulus | 110 GPa | 16000 ksi | – |
Poisson’s Ratio | 0.37 | 0.37 | – |
Charpy Impact | 310 J | 229 ft-lb | V-notch |
Shear Modulus | 45 GPa | 6530 ksi | – |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neilmetals.co.in
Titanium Square Bars offer exceptional strength, lightweight properties, and corrosion resistance, making them ideal for high-performance applications in aerospace, medical, and industrial sectors.
Titanium Square Bars maintain excellent strength and stability even at elevated temperatures, making them suitable for use in extreme environments like aerospace engines and high-temperature industrial processes.
Because of their great strength and low weight, titanium square bars are frequently found in aerospace components like landing gear, engine parts, and airframes. They are perfect for valves, pumps, and heat exchangers in the chemical and marine industries because they don’t corrode when exposed to harsh chemicals or seawater. Because titanium is biocompatible, the medical industry uses it for implants and surgical tools. Strength, durability, and resistance to harsh environments are critical factors in defence equipment, power generation, sporting goods, and automotive racing. They are extremely useful in high-performance engineering solutions due to their versatility.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
