With its main office in Kolkata, India, Neil Metals is a reputable producer and supplier of Titanium Grade 8 Bars and Rods, offering high-performance materials designed for demanding industrial uses. Neil Metals, which is well-known for its accuracy and quality, provides Titanium Grade 8 products that satisfy strict international requirements for durability, strength, and resistance to corrosion. The chemical, medical, marine, and aerospace industries all have high demand for their products. Neil Metals guarantees a consistent supply of Titanium Grade 8 Bars/Rods with specialised sizes and exceptional metallurgical integrity to serve both domestic and international markets by emphasising customer satisfaction, on-time delivery, and technical know-how.
Ti-3Al-1.5Mn (approximately) is the typical composition of titanium grade 8, which also contains 1.5% manganese and 3% aluminium. This alloy provides exceptional corrosion resistance, good weldability, and a good balance of moderate strength. It has an approximate elongation of 15–20%, a yield strength of 530 MPa, and a tensile strength of 620 MPa. Applications requiring strength and corrosion resistance at the same time can benefit from the alloy’s mechanical stability in oxidising and mildly reducing environments as well as its consistent performance at high temperatures.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

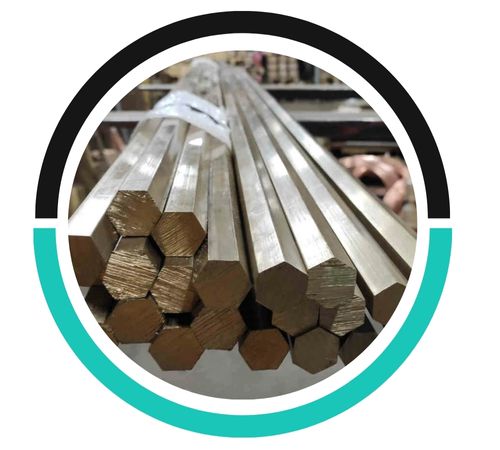

| Hex Bar size : | 2-100mm A/F |

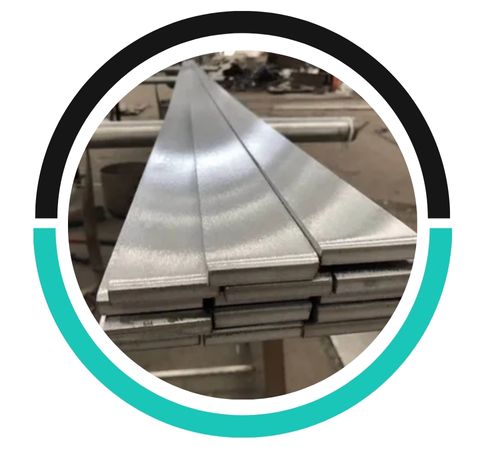

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

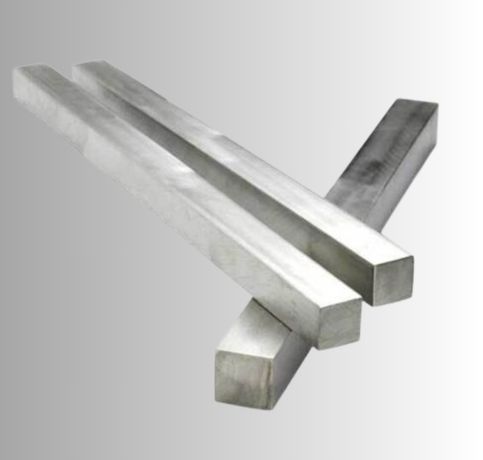

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 8 | – | R54810 |
| Grade | O | N | C | H | Fe | Al | Mo | V |
| 8Al 1Mo 1V | 0.15 | 0.05 | 0.08 | 0.0125 | 0.3 | 7.5-8.5 | 0.75-1.25 | 0.75-1.25 |
| Grade | Tensile strength (MPa) | Yield strength (MPa) | Elongation in 4D (%) | Reduction of area (%) | Hardness (HV) |
| 8Al 1Mo 1V | 1020 | 930 | 10 | 40 | 350 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neilmetals.co.in
Titanium Grade 8 Bars and Rods offer high strength, excellent corrosion resistance, and superior performance in high-temperature environments, making them ideal for aerospace and marine applications.
Titanium Grade 8 combines 90% titanium, 6% aluminum, and 4% vanadium, offering enhanced strength and heat resistance compared to other grades, making it suitable for demanding industrial applications.
Titanium Grade 8 bars and rods are widely used in marine fittings, airframe parts, and aerospace structures where materials that are strong, lightweight, and resistant to corrosion are crucial. The alloy is perfect for desalination systems, offshore oil platforms, and chemical processing equipment because of its exceptional performance in chloride-containing environments. Because of its biocompatibility and resistance to sterilising conditions, it is utilised in the medical field for non-implantable surgical instruments. Titanium Grade 8 provides a dependable answer for demanding structural and corrosive service conditions and is also used in industrial piping, heat exchangers, and power generation.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Neil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kolkata, India
