Based in Kolkata, India, Neil Metals is a well-known manufacturer and supplier of high-grade titanium Grade 7 bars and rods for use in extremely corrosive industrial settings. Because palladium is added, Titanium Grade 7 is well known for its exceptional resistance to oxidising and reducing media as well as its superior corrosion resistance. Neil Metals delivers precision-engineered bars and rods that meet international standards, serving industries such as chemical processing, marine, desalination, and energy. With a strong focus on quality, traceability, and on-time delivery, Neil Metals has earned a solid reputation as a reliable source for titanium alloy products in India and abroad.
Titanium Grade 7 (UNS R52400) is a commercially available, pure titanium alloy that has been enhanced with 0.12–0.25% palladium to greatly increase corrosion resistance, particularly in environments that contain acid and chloride. It has comparable mechanical qualities to Grade 2 and contains roughly 99.2% titanium. The alloy is very ductile and formable, with a tensile strength of about 344 MPa and a yield strength of about 275 MPa. Both industrial and marine service conditions can benefit from its high resistance to pitting and crevice corrosion, as well as its ability to maintain performance over a broad temperature range.
| Grade | ASTM B348 Ti Gr7 Flat Bar |
|---|---|

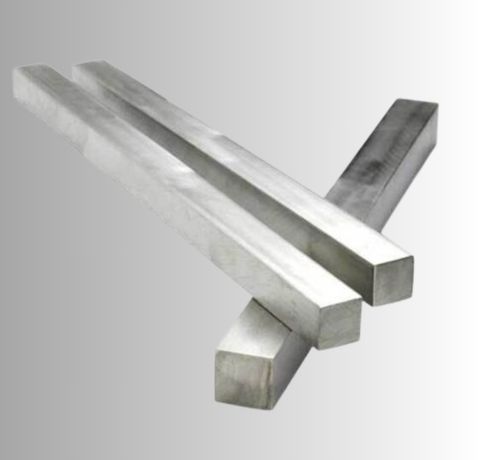

| Titanium Grade 7 Square bar size | 4 to 100mm |

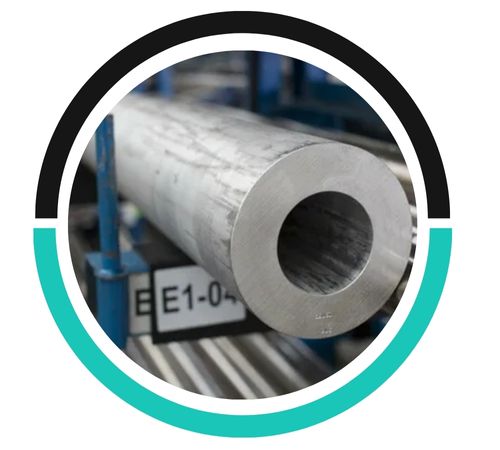

| Titanium Alloy Grade 7 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

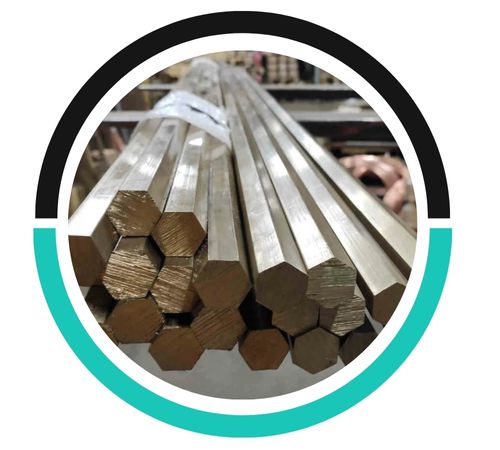

| CP Titanium Alloy Gr7 Hex Bar size | 2-100mm A/F |
| Titanium Grade 7 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

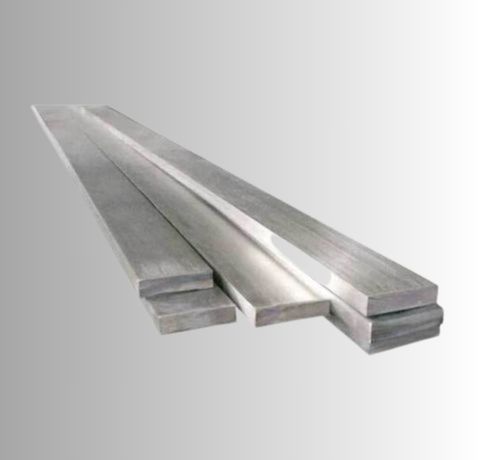

| Titanium Alloy Grade 7 Rectangles Size | 33 x 30mm to 295 x 1066mm |

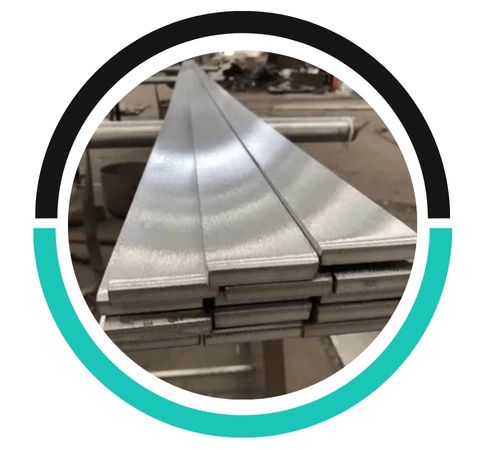

| CP Titanium Alloy Gr7 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Titanium Grade 7 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Titanium Alloy Grade 7 Section | 3.0 to 12.0mm thickness |

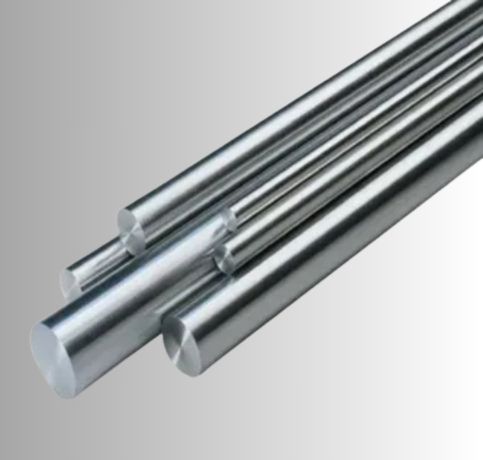

| CP Titanium Alloy Gr7 Round bar size | Diameter: 3-~800mm |
| Titanium Grade 7 Billet Size | 1/2″ to 495mm Diameter |
| Titanium Alloy Grade 7 Round Bar Standard Dimensions | Diameter / Height: |
| Titanium Grade 7 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Titanium Alloy Grade 7 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| CP Titanium Alloy Gr7 Technique | Titanium Grade 7 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Titanium Grade 7 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

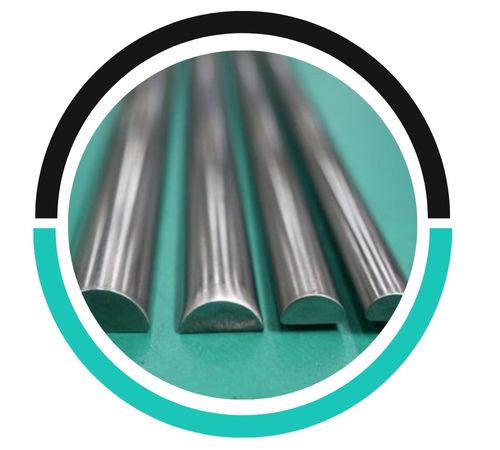

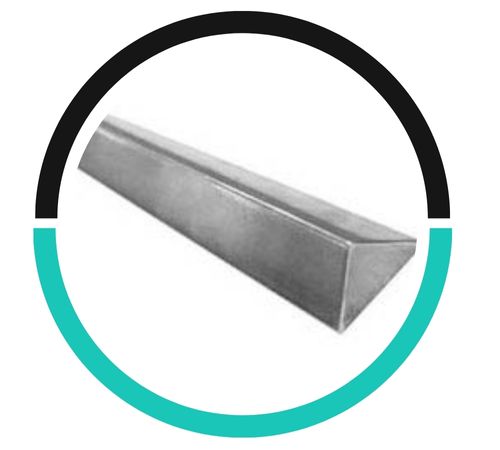

| Form | Titanium Grade 7 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Titanium Grade 7 Round bar conforms to NACE MR0175/ISO 15156 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 7 | 3.7235 | R52400 |
| Grade | C | Fe | N | Ti | H | O | Pd |
| Titanium Gr. 7 | 0.08 max | 0.30 max | 0.03 max | Balancen | 0.0150 max | 0.25 max | 0.20 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3 | 1668 °C | Psi – 39900 , MPa – 275 | Psi – 59500 , MPa – 410 | 20 % |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

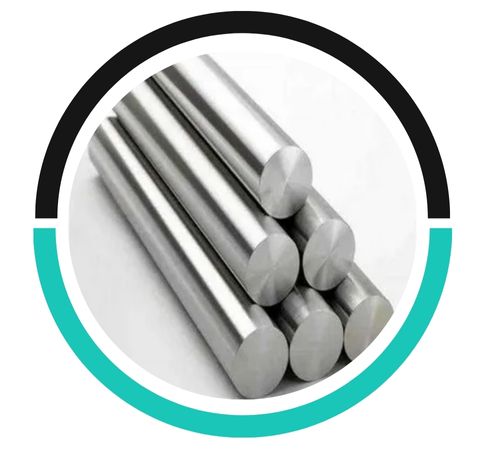

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 7 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 7 Bars and Rods can be recycled. Titanium is highly recyclable without significant degradation of its properties, making it an environmentally sustainable material for reuse in various applications.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neilmetals.co.in
No, Titanium Grade 7 Bars and Rods do not attract magnets. Titanium, including Grade 7, is a non-ferromagnetic material, meaning it has little to no magnetic properties and is not attracted to magnets.
Chemical processing facilities place a high value on titanium grade 7 bars and rods for use in heat exchangers, reactors, and piping systems that handle aggressive media. They are perfect for environments with chlorine dioxide in the pulp and paper industry because of their remarkable resistance to corrosion. They are employed in seawater handling systems and desalination units in the maritime industry. Because of its dependability and durability in corrosive environments, Grade 7 is also used in the nuclear and power generation industries. It is also utilised in food processing and pharmaceutical equipment, where non-toxic, corrosion-resistant materials are necessary for hygienic and safety reasons.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
