A well-known producer and supplier of titanium grade 6 bars and rods, Neil Metals is based in Kolkata, India, and provides high-end materials designed to satisfy demanding industrial requirements. The versatile alpha alloy titanium grade 6 (Ti-5Al-2.5Sn) is renowned for its outstanding weldability, moderate strength, and remarkable resistance to corrosion. These bars and rods are supplied by Neil Metals in a range of specifications that are tailored to fit a variety of industries, such as power generation, marine, and aerospace. Strict quality control procedures and a customer-focused strategy are used by Neil Metals to guarantee prompt delivery of precisely finished goods that satisfy performance requirements and global standards.
About 5% aluminium, 2.5% tin, and the remaining titanium make up Titanium Grade 6 (Ti-5Al-2.5Sn), an alpha titanium alloy. Compared to commercially pure grades, it offers improved structural strength and weldability. With an elongation of 10–15% and a yield strength of 725 MPa, the typical tensile strength is approximately 825 MPa. It is appropriate for high-performance settings due to its exceptional resistance to oxidation and corrosion at high temperatures. It is a dependable option for structural applications under difficult circumstances due to its moderate density and mechanical qualities.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

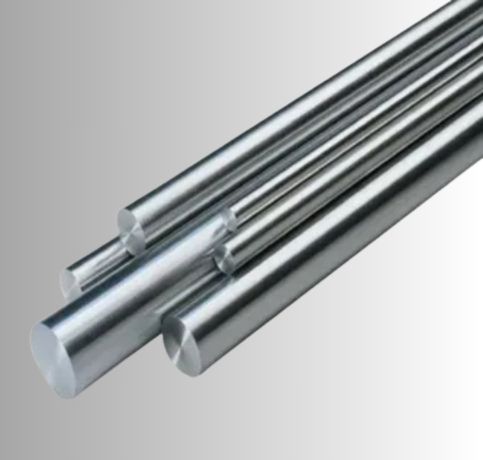

| Round bar size : | Diameter: 3-~800mm |

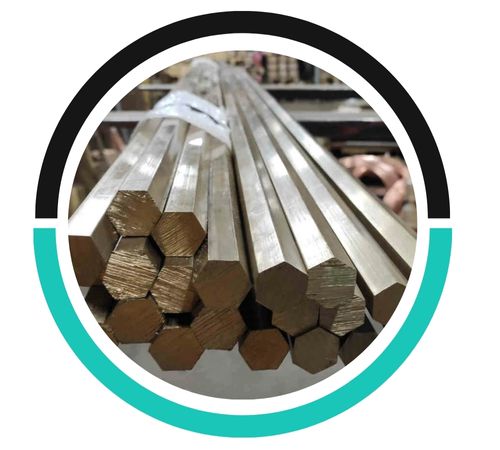

| Hex Bar size : | 2-100mm A/F |

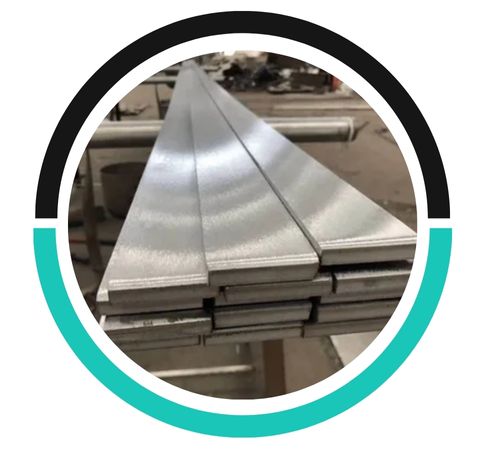

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

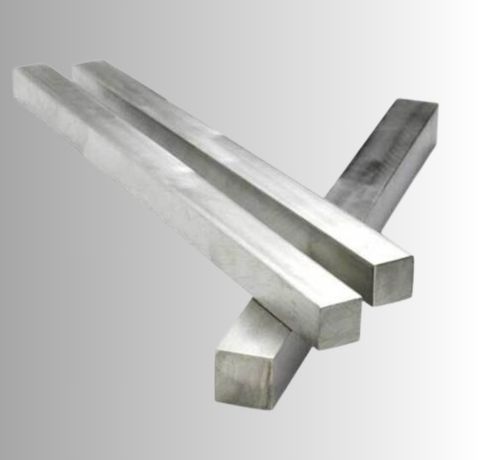

| Square bar size : | 4 to 100mm |

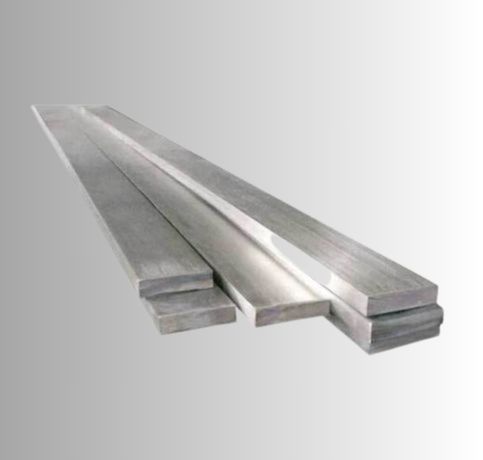

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 6 | 3.7114 | R54520 |
| Grade | C | Fe | N | Ti | H | O | Al | Sn |
| Titanium Gr. 6 | .08 max | 0.50 max | .05 max | Balance | .0175 – .020 | .20 max | 4.0 – 6.0 | 2.0 – 3.0 |
| Element | Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson’s Ratio |
| Ti Grade 6 | 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 6 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neilmetals.co.in
Titanium Grade 6 Bars and Rods provide excellent strength-to-weight ratio, outstanding corrosion resistance, high-temperature stability, and good formability, making them ideal for high-performance applications.
Titanium Grade 6 Bars and Rods offer superior strength, corrosion resistance, and weldability, along with excellent performance in high-temperature and aggressive environments, making them suitable for critical industrial applications.
Because of their strength and ability to withstand high temperatures, titanium grade 6 bars and rods are frequently found in airframes, jet engine parts, and aerospace structures. Their ability to withstand corrosion in seawater makes them perfect for the marine industry’s offshore platforms, propeller shafts, and desalination systems. Because of their resistance to high temperatures, power plants use them in heat exchangers and turbine components. Titanium Grade 6 is also appropriate for applications requiring material stability and durability in harsh conditions, such as nuclear reactors, medical implants, and chemical processing equipment.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
