High-performance titanium grade 4 bars and rods are manufactured and supplied by Neil Metals, a reputable company with headquarters in Kolkata, India. Neil Metals is well-known for providing one of the strongest grades of commercially pure titanium and making sure that its goods satisfy the strictest industry requirements. Because of their exceptional biocompatibility, high tensile strength, and superior corrosion resistance, their Titanium Grade 4 Bars and Rods are in great demand. Neil Metals is dedicated to providing accuracy-engineered products with dependable performance, customised dimensions, and prompt delivery to satisfy a range of application requirements. These industries include aerospace, chemical processing, marine, and medical.
The strongest of the CP grades, titanium grade 4 is a commercially available pure titanium alloy. With trace amounts of oxygen (≤0.40%), iron (≤0.50%), carbon (≤0.08%), and hydrogen (≤0.015%), it is composed of 99.2% titanium. Its yield strength is 480 MPa, its tensile strength is about 550 MPa, and its elongation is about 15%. It retains good formability and corrosion resistance in spite of its strength. It is perfect for more demanding structural applications because of its mechanical qualities, particularly when greater strength and resistance to harsh environments are crucial.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

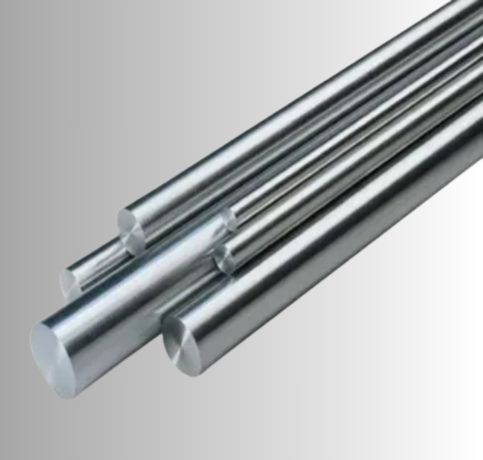

| Round bar size : | Diameter: 3-~800mm |

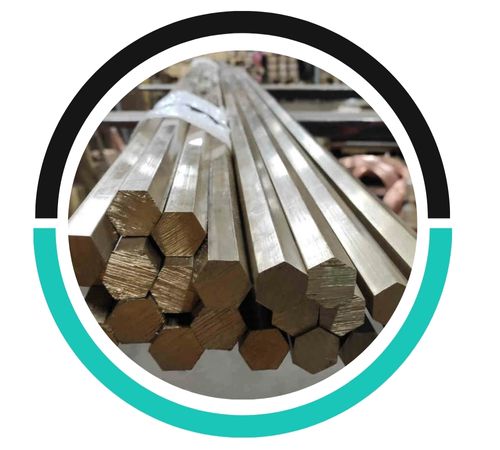

| Hex Bar size : | 2-100mm A/F |

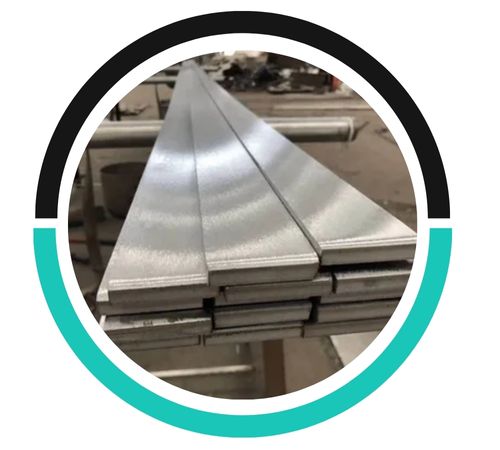

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

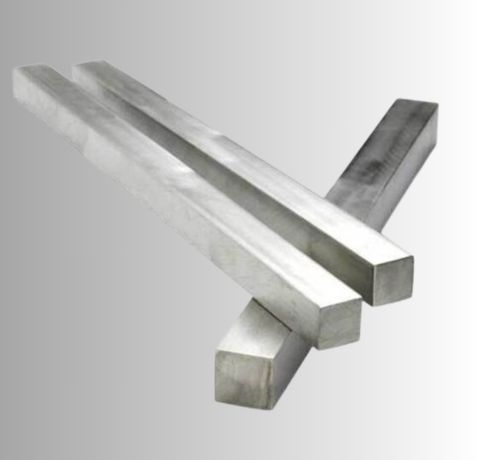

| Square bar size : | 4 to 100mm |

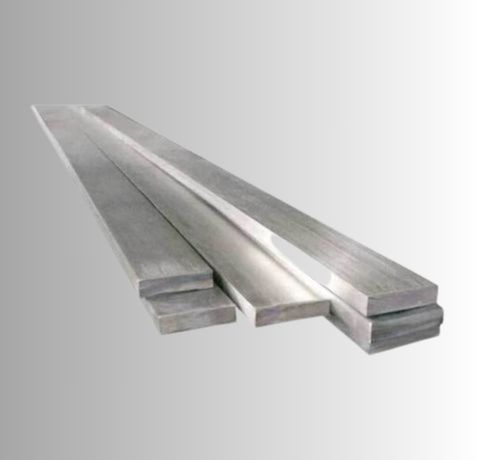

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

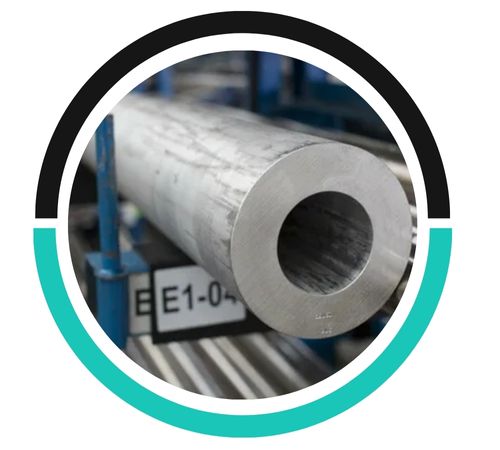

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 4 | 3.7065 | R50700 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 4 | 0..08 max | 0.05 max | 0.40 max | 0.015 max | Bal | 0.50 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 552 | 25 % | 15 % | 100 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat (BTU/lb-°F) | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.163 | 2.87 | 119 | 0.127 | 0.00000478 | 3020 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

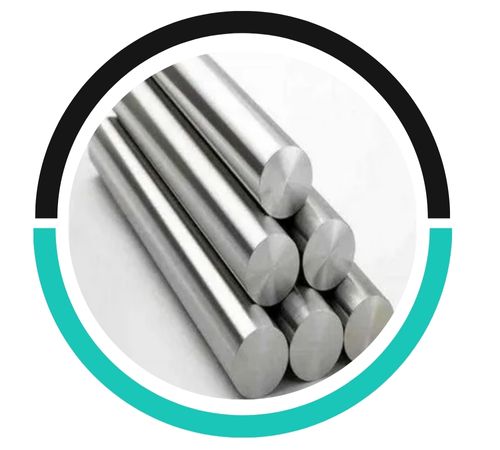

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 4 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neilmetals.co.in
Titanium Grade 4 Bars and Rods are composed of 90% titanium, 6% aluminum, and 4% vanadium, offering excellent strength, corrosion resistance, and durability.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Titanium Grade 4 bars and rods are widely used in hydraulic systems, aircraft components, and aerospace structures where corrosion resistance and a high strength-to-weight ratio are essential. Because of their resistance to aggressive media, they are used in heat exchangers, pressure vessels, and seawater piping in the chemical and marine industries. Because they are biocompatible, the medical industry uses them for implants and surgical tools. These rods are also appropriate for anodising applications, nuclear power systems, and desalination plants, where long-term performance depends on strength, dependability, and resistance to oxidising conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
