Titanium Grade 3 bars and rods, which are distinguished by their exceptional strength, moderate ductility, and exceptional resistance to corrosion, are available in a variety from Neil Metals, a reputable manufacturer and supplier with headquarters in Kolkata, India. Neil Metals serves a variety of industries, including the chemical processing, marine, aerospace, and medical sectors, with a focus on providing premium titanium products that adhere to international standards. For structural and pressure vessel applications where strength and resistance to corrosive environments are crucial, their Grade 3 titanium bars and rods are perfect. In international markets, Neil Metals guarantees on-time delivery, accurate engineering, and customised solutions to satisfy client requirements.
About 99.2% titanium makes up Titanium Grade 3, with trace amounts of iron (≤0.30%), oxygen (≤0.35%), carbon (≤0.08%), and other elements. In addition to having good weldability and corrosion resistance, this grade has a higher mechanical strength than Grades 1 and 2. It has a tensile strength of 450–500 MPa, yield strength of ~380 MPa, and elongation of around 18%. Titanium Grade 3 is suitable for applications that require higher strength than pure titanium while still offering excellent resistance to oxidizing and mildly reducing environments.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

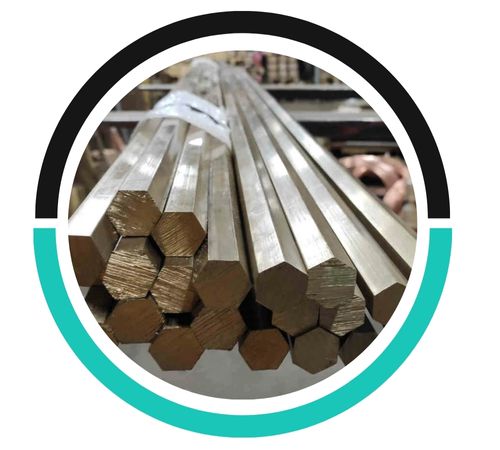

| Hex Bar size : | 2-100mm A/F |

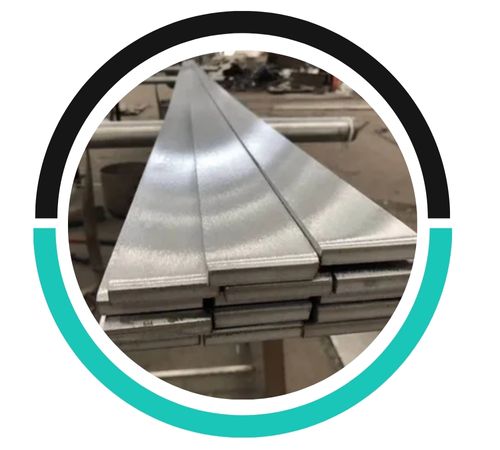

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

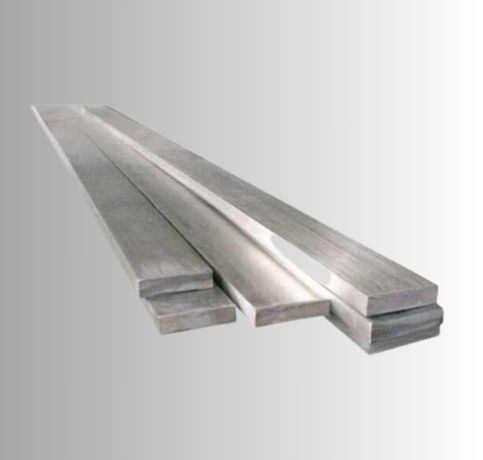

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

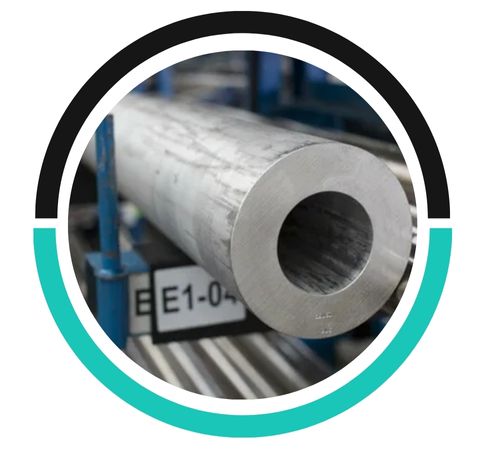

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

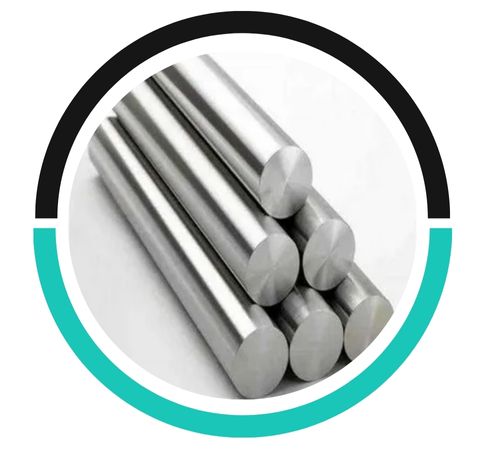

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |

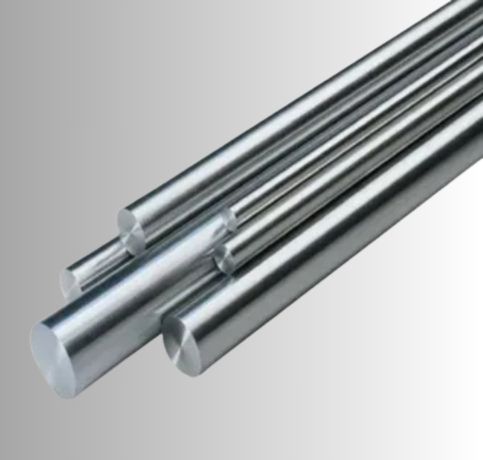

Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neilmetals.co.in
Because of their strength and resistance to corrosion, titanium grade 3 bars and rods are frequently used in the chemical and petrochemical industries for the fabrication of heat exchangers, reactors, piping systems, and pressure vessels. They are used in seawater filtration systems, desalination facilities, and offshore structures in the maritime industry. They are used in hydraulic systems and airframe components in the aerospace industry where it is essential to balance strength and weight. These bars are also utilised in medical equipment, power generation, and anodising processes where non-toxic and biocompatible materials are necessary for both structural and functional performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
