Reputable for offering premium-grade Titanium Grade 11 Bars and Rods that satisfy the highest requirements for quality and performance, Neil Metals is a manufacturer and supplier situated in Kolkata, India. These precisely crafted bars and rods are made to provide exceptional corrosion resistance, mechanical strength, and weldability in demanding industrial settings. Neil Metals provides Titanium Grade 11 products for a variety of applications in industries like chemical processing, marine, and power generation, guaranteeing durability, specification compliance, and prompt delivery to clients worldwide. The company has a robust distribution network and is dedicated to customer satisfaction.
With the addition of 0.12–0.25% palladium, Titanium Grade 11 is a commercially pure titanium alloy that improves corrosion resistance, especially in reducing and mildly oxidising environments. Approximately 99% of the alloy is titanium, with trace amounts of iron and oxygen. It has an elongation of about 24%, a yield strength of about 275 MPa, and a tensile strength of 350–480 MPa. Titanium Grade 11 is the best option for applications needing resistance to corrosion and chemical exposure because it retains exceptional formability, weldability, and impact toughness even at cryogenic temperatures.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

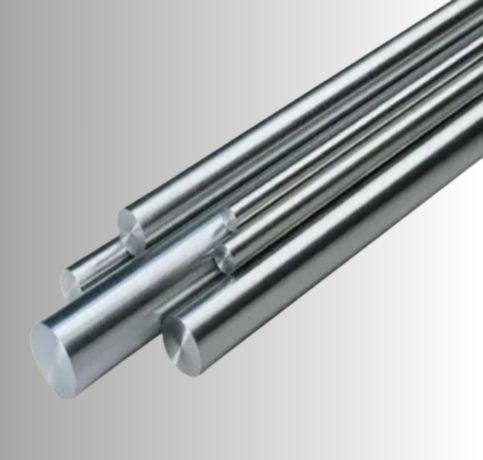

| Round bar size : | Diameter: 3-~800mm |

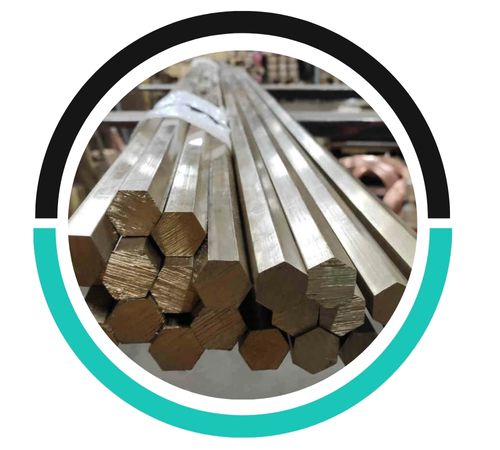

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

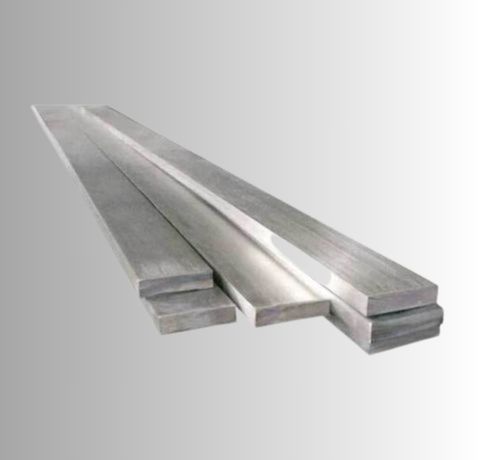

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52250 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 11 | 0.08 max | 0.20 max | 0.03 max | Balance | 0.015 max | 0.18 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3, (4.51 g/cm3) | 240 | 170 | 24 % |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 11 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neilmetals.co.in
Common titanium grades for bar manufacturing include Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 11, and Grade 12, each offering unique strength and corrosion resistance.
Because of their resistance to acids, brines, and chlorides, titanium grade 11 bars and rods are widely used in the chemical processing industries. Heat exchangers, reactors, piping systems, and storage tanks that handle aggressive media are examples of common applications. They are preferred for use in marine hardware, seawater desalination plants, and offshore oil platforms. These bars are also used in the pharmaceutical, power generation, and aerospace industries where long service life and corrosion resistance are crucial. They are perfect for demanding, high-performance applications because of their resilience to harsh environments without sacrificing mechanical integrity.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
