Neil Metals, a well-known producer and supplier of high-performance titanium grade 5 forgings with headquarters in Kolkata, India, provides robust and precisely engineered solutions to industries worldwide. Titanium Gr 5 (Ti-6Al-4V) is the most widely used titanium alloy and is renowned for its strength, low weight, and exceptional resistance to corrosion. Neil Metals manufactures forged parts in unique sizes and shapes to satisfy the demands of industrial, medical, marine, and aerospace applications. The company is a trusted partner for crucial engineering and structural components because it focusses on quality, dependability, and timely delivery while adhering to international standards.
90% titanium, 6% aluminium, and 4% vanadium make up Titanium Grade 5 Forgings. This alloy has a density of 4.43 g/cm³, a tensile strength of roughly 895–965 MPa, and outstanding fatigue resistance and fracture toughness. In addition, it has moderate thermal conductivity, good weldability, and good performance at temperatures as high as 400°C. Titanium Gr 5 is the material of choice for high-performance applications that need a combination of strength, light weight, and resistance to oxidation and corrosion because it retains its superior mechanical qualities even under stress.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
Durability of Titanium Grade 5 forgings is ensured by proper heat treatment, controlled forging process, precise die design, alloy composition, and maintaining optimal surface finish, enhancing strength, corrosion resistance, and fatigue resistance.
Titanium Gr 5 forgings are commonly used in aerospace, automotive, medical, marine, and defense industries, providing high strength, corrosion resistance, and lightweight properties for critical components and high-performance applications.

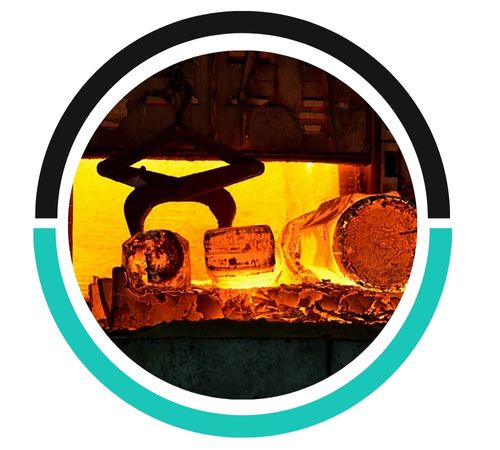

Closed-die forging in Titanium Gr 5 production involves shaping titanium by compressing it between two shaped dies, ensuring precise dimensions, high strength, and improved material properties for demanding applications.
Because of their remarkable strength-to-weight ratio, titanium Gr 5 forgings are used extensively in the aerospace industry to manufacture engine parts, landing gear, and airframe components. Because of their biocompatibility, they are utilised in orthopaedic devices, bone screws, and surgical implants in the medical field. Their ability to withstand corrosion makes them useful for the marine industry when used in underwater equipment, fittings, and propeller shafts. They are also used in power generation systems, oil and gas applications, and automotive performance parts, where mechanical strength and dependability are essential under harsh service conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
