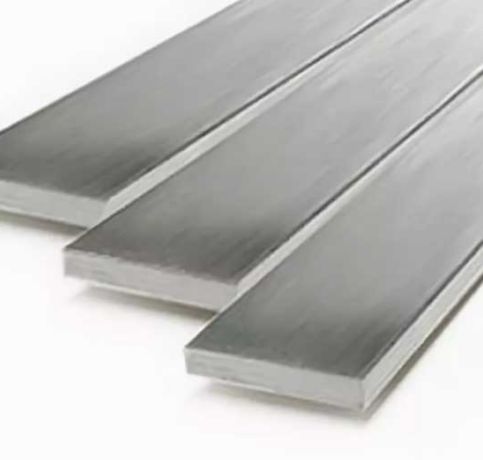

Based in Kolkata, India, Neil Metals is a reputable producer and supplier of premium titanium flat bars, offering precisely engineered solutions to a range of industries. These bars are perfect for high-performance and critical applications because of their exceptional durability, corrosion resistance, and strength-to-weight ratio. Neil Metals guarantees that every product satisfies global standards for quality and dependability and offers a variety of grades, lengths, and finishes. In industries like aerospace, chemical processing, medical devices, and marine engineering, the company has established a solid reputation thanks to its dedication to customer satisfaction, cutting-edge infrastructure, and reliable delivery schedules.
Grade 2 (commercially pure titanium) and Grade 5 (Ti-6Al-4V), which contain 6% aluminium and 4% vanadium, are the two main types of titanium flat bars. Depending on the grade, these bars have tensile strengths that range from 344 MPa to over 950 MPa. They have exceptional fatigue strength, high corrosion resistance, and a low density (~4.5 g/cm³). Titanium is appropriate for demanding applications due to its non-magnetic, biocompatible, and thermally stable properties. These bars ensure performance in industrial, medical, and aerospace systems by preserving structural integrity in harsh conditions.
| Standard | ASTM B348, ASME B348, ASTM B863, ASTM F67, ASTM F136 |
| Application | Industrial and Medical |
| Shape | Flat |
| size | Dia 5.0~350 X ≤ 6000 |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr7,Gr23,Ti15333 |
| Density | 4.53 g/cm3 |
| Techniques | Forged,Rolled, Extrusion |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Technique | TC4 Titanium Alloy Hot Rolled, Cold Rolled, Cold Drawn, Forged |
Hardness, Brinell | 120 | 120 | annealed |
Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
Hardness, Rockwell B | 70 | 70 | annealed |
Hardness, Vickers | 122 | 122 | Estimated from Brinell |
Tensile Strength, Ultimate | 240 MPa | 34800 psi | – |
Tensile Strength, Yield | 170 – 310 MPa | 24700 – 45000 psi | – |
Elongation at Break | 24 % | 24 % | – |
Reduction of Area | 35 % | 35 % | – |
Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
Compressive Modulus | 110 GPa | 16000 ksi | – |
Poisson’s Ratio | 0.37 | 0.37 | – |
Charpy Impact | 310 J | 229 ft-lb | V-notch |
Shear Modulus | 45 GPa | 6530 ksi | – |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |
Titanium Flat Bars are commonly used in the aerospace, medical, and chemical industries for components like frames, brackets, and heat exchangers due to their strength and corrosion resistance.
Yes, Titanium Flat Bars can be welded, but they require precise control over heat to avoid contamination and maintain the material’s strength and corrosion resistance.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neilmetals.co.in
Because of their great strength and low weight, titanium flat bars are widely used in the aerospace industry for parts like bulkheads, brackets, and wing spars. Because of their biocompatibility, they are perfect for orthopaedic implants, surgical tools, and prosthetic devices in the medical field. Because they are resistant to corrosion, the chemical and petrochemical industries depend on them for process equipment, valves, and heat exchangers. They are also utilised in architectural components, automotive performance parts, and marine applications where strength, durability, and resistance to adverse conditions are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
