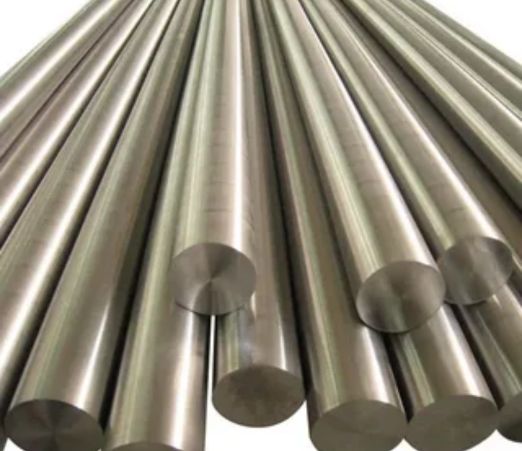

Renowned for providing premium Titanium Grade 1 Bars and Rods that satisfy international industrial standards, Neil Metals is a well-known manufacturer and supplier with headquarters in Kolkata, India. These bars are well-known for their outstanding formability, ductility, and resistance to corrosion, making them perfect for a wide range of demanding applications. Neil Metals offers Titanium Grade 1 Bars/Rods in specialised dimensions and specifications with an emphasis on accuracy, dependability, and client satisfaction. Neil Metals is a reliable partner for titanium solutions in India and abroad, offering consistent performance, quick delivery, and competitive pricing for the marine, aerospace, chemical, and medical industries.
Titanium Grade 1 is a commercially pure, unalloyed titanium (≥99.5% Ti) that is renowned for its high ductility and softness. It has outstanding resistance to corrosion, especially in aqueous and oxidising environments. Tensile strength of approximately 240 MPa, yield strength of approximately 170 MPa, elongation of approximately 24%, and density of 4.51 g/cm³ are typical mechanical properties. The material is readily formable, weldable, and machinable, and it maintains its strength at high temperatures. Because of its exceptional biocompatibility, it can be used in food-grade and medical applications while still remaining strong and durable in a variety of industrial settings.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neilmetals.co.in
Grade 1 Titanium Because of their ability to withstand corrosion from saltwater and chlorides, bars and rods are frequently found in desalination systems, marine components, and chemical processing facilities. They are used in hydraulic systems and low-strength structural components in the aerospace sector. They are appropriate for use in surgical instruments, dental devices, and medical implants due to their biocompatibility. This grade is also preferred by the food and pharmaceutical industries for inert, non-toxic components. It is also utilised in architectural applications that call for strength and corrosion resistance with low weight, heat exchangers, and anodes for electroplating.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
