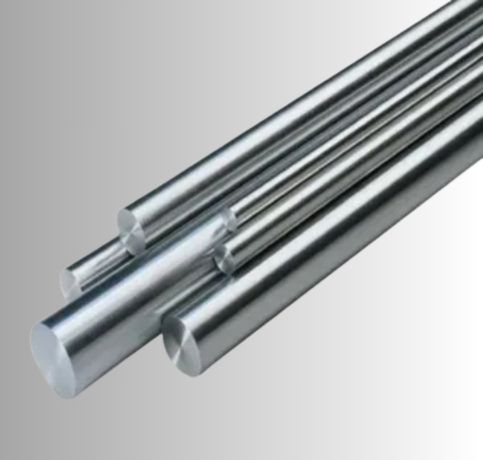

Neil Metals is a reputable manufacturer and supplier located in Kolkata, India, focusing on high-performance Super Duplex Steel Zeron 100 Bars and Rods. Known for their exceptional quality and durability, Neil Metals provides Zeron 100 products that adhere to global industrial standards for corrosion resistance, strength, and reliability. These bars and rods are perfect for tough environments like offshore oil and gas, chemical processing, and marine engineering. With a strong commitment to customer satisfaction and excellence, Neil Metals guarantees timely delivery, competitive pricing, and tailored solutions to meet various project needs in both domestic and international markets.
Super Duplex Steel Zeron 100 Bars and Rods are made up of about 25% chromium, 7% nickel, 3.6% molybdenum, 0.7% tungsten, and 0.2% nitrogen, along with carefully controlled amounts of copper and iron. This alloy provides outstanding corrosion resistance, especially in chloride-rich and acidic settings. Its mechanical properties boast a high tensile strength of around 800 MPa, a yield strength of about 550 MPa, and remarkable toughness and fatigue resistance. Zeron 100 also shows excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, making it a top choice for demanding industrial applications.
| Specifications | ASTM A276, A479, ASTM A182 / ASME SA276, SA479, SA182 |
|---|---|
| Grade | Super Duplex Steel UNS S32760 F55 |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Technique | uns S32760 Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Flat bar size | Thickness: 2 -100mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Section | 3.0 to 12.0mm thickness |

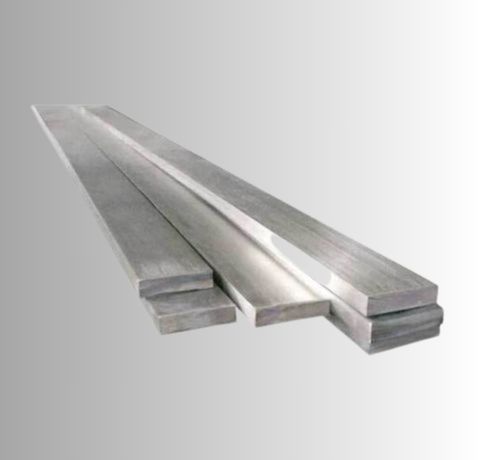

| Form | Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar,Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc. |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Processing | Bar cutting to 650mm |
| Certificates | EN 10204 / 3.1 |
| Condition | Hardened & tempered, annealed |
| Our uns S32750 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | Cr | Ni | Mo | C | W | Cu | N | Mn | Si | P | S | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Zeron 100 | 24.0-26.0 | 6.0-8.0 | 3.0-4.0 | 0.030 Max | 0.5-1.0 | 0.50-1.0 | 0.2-0.3 | 1.00 Max | 1.0 Max | 0.03 Max | 0.01 Max | Balance |
| Grades | Alloy Zeron 100 Tensile Strength, ksi | .2% Yield Strength, ksi | % Elongation in 50mm | Hardness Max. |
|---|---|---|---|---|
| Zeron 100 | 109 | 80 | 25 | 28 HRC |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Zeron 100 | 1.4501 | S32760 |
Yes, Super Duplex Steel Zeron 100 bars can be welded. However, proper welding procedures and pre-heat treatments are essential to avoid issues like cracking and maintain its high strength and corrosion resistance.
Super Duplex Steel Zeron 100 rods are highly resistant to galvanic corrosion due to their exceptional corrosion resistance properties. However, if exposed to more active metals in a corrosive environment, some risk of galvanic corrosion may still exist.
Super Duplex Steel Zeron 100 rods are available in a range of diameters, typically from 10 mm to 300 mm, and can be customized based on specific requirements. They are commonly offered in finishes like hot-rolled, cold-rolled, and bright polished.
Super Duplex Steel Zeron 100 Bars and Rods are widely utilized in industries that require exceptional corrosion resistance and strength. Typical applications include subsea oil and gas equipment, desalination plants, heat exchangers, pressure vessels, and chemical processing systems. Their ability to endure aggressive chloride and acidic environments makes them ideal for marine structures and offshore platforms. In the pulp and paper industry, Zeron 100 effectively resists corrosion from bleaching chemicals. Furthermore, it finds use in mining, petrochemical, and power generation sectors, where mechanical performance in harsh operating conditions is crucial. These bars and rods provide an extended service life and lower maintenance needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
