Neil Metals, based in Kolkata, India, stands out as a top manufacturer and supplier of Super Duplex Steel S32760 Forgings, celebrated for their remarkable strength and outstanding resistance to corrosion. These forgings are crafted to excel in harsh, high-pressure environments, making them perfect for critical industrial applications. Neil Metals prides itself on precision manufacturing, strict adherence to international standards, and the ability to customize products to fit specific client requirements. With a solid reputation for quality, reliability, and prompt delivery, the company caters to a variety of sectors, including oil & gas, chemical processing, marine, and power generation, providing robust solutions for challenging operational conditions.
Super Duplex Steel S32760 Forgings are made up of about 25% chromium, 7% nickel, 3.5% molybdenum, along with added tungsten, nitrogen, and copper, all of which contribute to their exceptional corrosion resistance. These forgings boast impressive mechanical properties, featuring a tensile strength of around 800 MPa and a yield strength of roughly 550 MPa. They also deliver excellent impact toughness, even in low temperatures, and show high resistance to pitting, crevice corrosion, and stress corrosion cracking. This unique blend of strength and corrosion resistance makes S32760 forgings perfect for use in aggressive and high-stress industrial settings.
| Standard | ASTM A182, ASME SA182 |
| Specification | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs. |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs. |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs. |

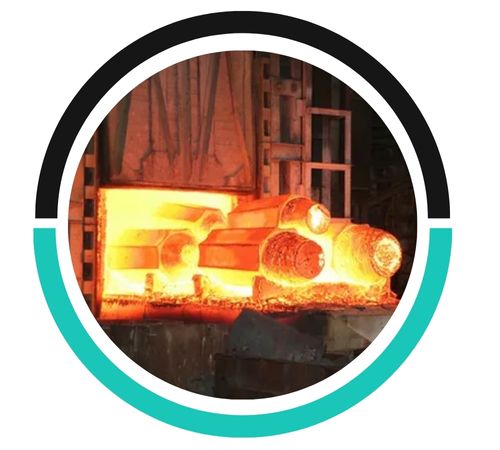

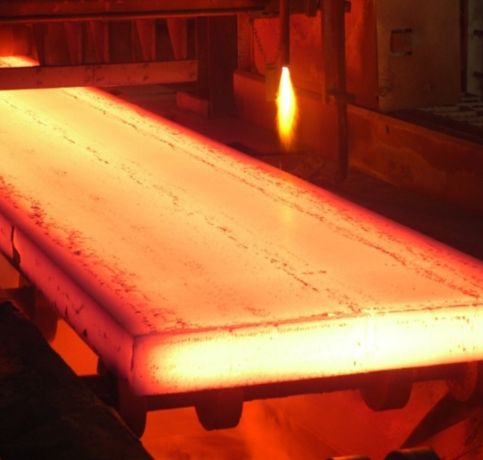

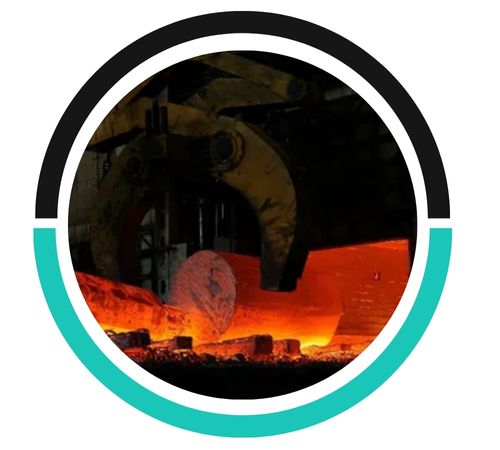

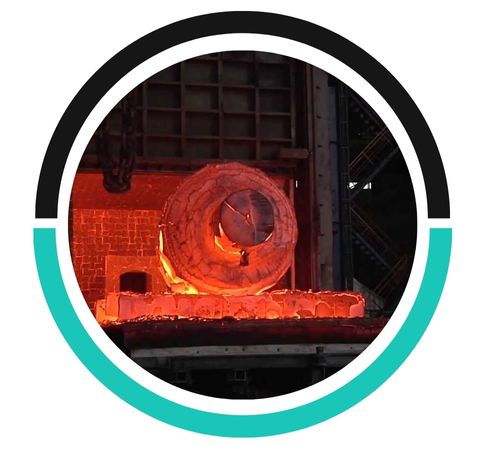

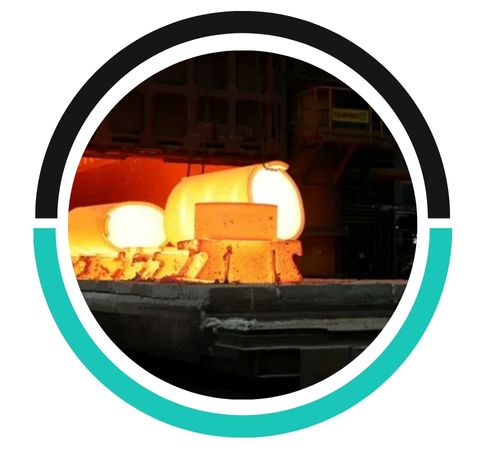

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4501 | S32760 |
Yes, Super Duplex Steel S32760 forgings are highly suitable for offshore and marine applications due to their excellent corrosion resistance, high strength, and resistance to pitting, crevice corrosion, and chloride stress cracking.
Welding processes compatible with Super Duplex Steel S32760 forgings include Tungsten Inert Gas (TIG), Metal Inert Gas (MIG), and Shielded Metal Arc Welding (SMAW), using matching filler materials to maintain corrosion resistance.
Super Duplex Steel S32760 forgings are governed by ASTM A182, ASTM A240, ASME SA-182, and EN 10088-3 standards, ensuring quality, corrosion resistance, and mechanical properties for demanding industrial applications.
Super Duplex Steel S32760 Forgings find extensive application in industries that operate under extreme conditions. In the oil & gas sector, they are utilized in subsea equipment, manifolds, valves, and pipeline components. In the chemical and petrochemical fields, they are essential in reactors, pressure vessels, and heat exchangers due to their ability to withstand aggressive chemicals. The marine industry employs them in propeller shafts, seawater systems, and structural components. Furthermore, S32760 forgings are also used in desalination plants, pulp and paper production, and offshore platforms, where high mechanical performance and corrosion resistance are crucial for long-term reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
