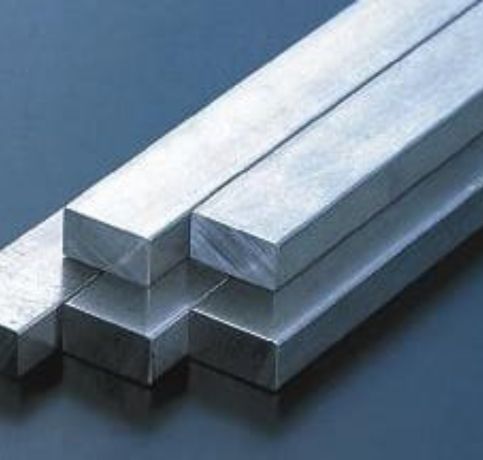

Reputable for producing and supplying high-end stainless steel rectangular bars, Neil Metals is based in Kolkata, India. Our rectangular bars are renowned for their exceptional surface finish, precision engineering, and reliable quality, meeting a wide range of industrial demands. These bars are perfect for structural, mechanical, and architectural applications and come in a variety of grades and sizes. Our products are trusted in industries like chemical processing, automotive, and construction because they are made with premium stainless steel and cutting-edge techniques that meet international standards. Neil Metals is a reputable partner for stainless steel needs in India and abroad thanks to its dedication to dependability, prompt delivery, and customised solutions.
Depending on the grade (e.g., 304, 316, 410), stainless steel rectangular bars are usually made of iron alloyed with nickel, chromium (10–20%), and trace amounts of carbon, manganese, and molybdenum. These bars have a high tensile strength (between 485 and 750 MPa), good machinability, and outstanding corrosion resistance. While martensitic grades offer hardness and resistance to wear, austenitic grades offer exceptional ductility and toughness, even at low temperatures. Rectangular stainless steel bars retain their structural integrity under severe environmental conditions and mechanical stress. Depending on the grade, they are also either non-magnetic or mildly magnetic.
| Standard | ASTM A276 / ASME SA276 , ASTM A479/ASME SA479 |
|---|---|
| Chamfering of SS Rod | thru fully automatic both-end chamfering machine Available in 30, 45 & 60 degree |
| Grade | FV520B, 17/4PH, 904L, S31254, 321 Stainless Steel, 310 Stainless Steel, 316, 304, SS 440C, SS 440B,AISI 410, SS 420, AISI 416, S31803, AISI 431, S32760, |
| Specification | ASTM A276 |
| size of Round Bars | 3mm-~800mm Dia |
| SS Flat bar size | 2mm -100mm Thickness |
| 10mm to 500mm Width | |
| Tolerance of round bar | H11, K12, H12, H9, H10, K10, H8, K11, H13K9 or as per your need |
| SS Square bar size | 4mm – 100mm |
| available Finishes | smooth turned, Centreless Ground, hot rolled, peeled, Cold (bright) drawn, Rough Turned, Polish & Black, Grinding, Bright, centreless ground, slit rolled edge, hot rolled annealed, |
| SS Hollow Bar | 32 Outside Diameter x 17mm Inside Diameter – 255mm Outside Diameter x 210mm Inside Diameter |
| SS Rectangles Size | 34mm x 31mm to 296mm x 1067mm |
| rod Conditions | , annealed and Hardened & tempered |
| Surface we provide | Bright, Polished, Finished, Sand Blasting Cold Drawn, Hairline, Hot Rolled Pickled, |
| Ultrasonic Test | As per EN 10308 (class 1 to 4), ASTM A-388, 10423:2003-PSL 3, API 6A/ISO it is 100% tested thru Digital Ultrasonic Flaw Detector, MIL STD 2154, SEP 1920:1984 |
| Method | Hot Rolled,Cold Rolled, Cold Drawn, Forged Round Bar |
| Heat Treatment | Annealed and Solution Annealed |
| ASTM Grade | Carbon | Manganese | Silicon | Sulfur | Phospherous | Chromium | Nickel | Molybdenum | Other |
| 304 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 8.0 11.0 | – | – |
| 316 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 16.0-18.0 | 10.0 14.0 | 2.0 3.0 | – |
| 317L | 0.035 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 11.0 14.0 | 3.0 4.0 | – |
| 310 S | 0.08 max | 2.00 max | 1.5 max | 0.030 max | 0.045 max | 24.0-26.0 | 19.0 22.0 | 3.0 4.0 | – |
| 347 H | 0.04 0.10 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0- 19.0 | 9.0 13.0 | – | 10C(Cb+Ta)<1.10% |
| 321 | 0.08 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0-20.0 | 9.0 12.0 | – | 5C 0.70% |
| Grade | Elongation | Density | Tensile Strength | Yield Strength (0.2%Offset) | Melting Point |
| SS 202 | 40 % | 8.0 g/cm3 | 515 MPa | 275 MPa | 1454 °C (2650 °F) |
| SS 303 | 50 % | 55% | Psi – 85,000 | Psi – 45,000 | Rb 180 |
| SS 304 | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
| SS 304L | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
| SS 316 | 35 % | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1454 °C (2650 °F) |
| SS 316L | 40 % | 8.0 g/cm3 | 485 Min | 170 Min. | 1400 °C (2550 °F) |
| Working Decimal Equivalent | Estimated Weight per 12′ Bar | Thickness x Width | Weight |
|---|---|---|---|
| 0.125 x 0.500 inches3.175 x 12.700 mm | 2.551 lbs1.155603 kg | 1/8 x 1/2 inches | 0.2126 lbs/ft0.3163488 kg/m |
| 0.125 x 0.625 inches3.175 x 15.875 mm | 3.188 lbs1.444164 kg | 1/8 x 5/8 inches | 0.2657 lbs/ft0.3953616 kg/m |
| 0.125 x 0.750 inches3.175 x 19.050 mm | 3.826 lbs1.733178 kg | 1/8 x 3/4 inches | 0.3188 lbs/ft0.4743744 kg/m |
| 0.125 x 1.000 inches3.175 x 25.400 mm | 5.101 lbs2.310753 kg | 1/8 x 1 inches | 0.4251 lbs/ft0.6325488 kg/m |
| 0.125 x 1.250 inches3.175 x 31.750 mm | 6.377 lbs2.888781 kg | 1/8 x 1 1/4 inches | 0.5314 lbs/ft0.7907232 kg/m |
| 0.125 x 1.500 inches3.175 x 38.100 mm | 7.652 lbs3.466356 kg | 1/8 x 1 1/2 inches | 0.6377 lbs/ft0.9488976 kg/m |
| 0.125 x 2.000 inches3.175 x 50.800 mm | 10.202 lbs4.621506 kg | 1/8 x 2 inches | 0.8502 lbs/ft1.2650976 kg/m |
| 0.125 x 2.500 inches3.175 x 63.500 mm | 12.753 lbs5.777109 kg | 1/8 x 2 1/2 inches | 1.0628 lbs/ft1.5814464 kg/m |
| 0.125 x 3.000 inches3.175 x 76.200 mm | 15.304 lbs6.932712 kg | 1/8 x 3 inches | 1.2753 lbs/ft1.8976464 kg/m |
| 0.1875 x 0.500 inches4.7625 x 12.7 mm | 3.826 lbs1.733178 kg | 3/16 x 1/2 inches | 0.3188 lbs/ft0.4743744 kg/m |
| 0.1875 x 0.625 inches4.7625 x 15.875 mm | 4.782 lbs2.166246 kg | 3/16 x 5/8 inches | 0.3985 lbs/ft0.592968 kg/m |
| 0.1875 x 0.750 inches4.7625 x 19.05 mm | 5.739 lbs2.599767 kg | 3/16 x 3/4 inches | 0.4782 lbs/ft0.7115616 kg/m |
| 0.1875 x 1.000 inches4.7625 x 25.4 mm | 7.652 lbs3.466356 kg | 3/16 x 1 inches | 0.6377 lbs/ft0.9488976 kg/m |
| 0.1875 x 1.250 inches4.7625 x 31.75 mm | 9.565 lbs4.332945 kg | 3/16 x 1 1/4 inches | 0.7971 lbs/ft1.1860848 kg/m |
| 0.1875 x 1.500 inches4.7625 x 38.1 mm | 11.478 lbs5.199534 kg | 3/16 x 1 1/2 inches | 0.9565 lbs/ft1.423272 kg/m |
| 0.1875 x 1.750 inches4.7625 x 44.45 mm | 13.391 lbs6.066123 kg | 3/16 x 1 3/4 inches | 1.1159 lbs/ft1.6604592 kg/m |
| 0.1875 x 2.000 inches4.7625 x 50.8 mm | 15.304 lbs6.932712 kg | 3/16 x 2 inches | 1.2753 lbs/ft1.8976464 kg/m |
| 0.1875 x 2.500 inches4.7625 x 63.5 mm | 19.130 lbs8.66589 kg | 3/16 x 2 1/2 inches | 1.5941 lbs/ft2.3720208 kg/m |
| 0.1875 x 3.000 inches4.7625 x 76.2 mm | 22.955 lbs10.398615 kg | 3/16 x 3 inches | 1.913 lbs/ft2.846544 kg/m |
| 0.250 x 0.500 inches6.35 x 12.7 mm | 5.101 lbs2.310753 kg | 1/4 x 1/2 inches | 0.4251 lbs/ft0.6325488 kg/m |
| 0.250 x 0.625 inches6.35 x 15.875 mm | 6.377 lbs2.888781 kg | 1/4 x 5/8 inches | 0.5314 lbs/ft0.7907232 kg/m |
| 0.250 x 0.750 inches6.35 x 19.05 mm | 7.652 lbs3.466356 kg | 1/4 x 3/4 inches | 0.6377 lbs/ft0.9488976 kg/m |
| 0.250 x 1.000 inches6.35 x 25.4 mm | 10.202 lbs4.621506 kg | 1/4 x 1 inches | 0.8502 lbs/ft1.2650976 kg/m |
| 0.250 x 1.250 inches6.35 x 31.75 mm | 12.753 lbs5.777109 kg | 1/4 x 1 1/4 inches | 1.0628 lbs/ft1.5814464 kg/m |
| 0.250 x 1.500 inches6.35 x 38.1 mm | 15.304 lbs6.932712 kg | 1/4 x 1 1/2 inches | 1.2753 lbs/ft1.8976464 kg/m |
Rectangular stainless steel bars are widely used in the automotive, marine, fabrication, and construction industries. They are perfect for load-bearing parts, frames, support beams, and brackets in construction and infrastructure projects because of their sturdy construction and resistance to corrosion. Because of their hygienic and non-reactive qualities, they are used for processing equipment, tanks, and frames in the food and chemical industries. These bars are also used in industrial machinery, railings, conveyor systems, and furniture manufacturing. They are a popular option for both decorative and functional structural applications due to their strength, adaptability, and visual appeal.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
