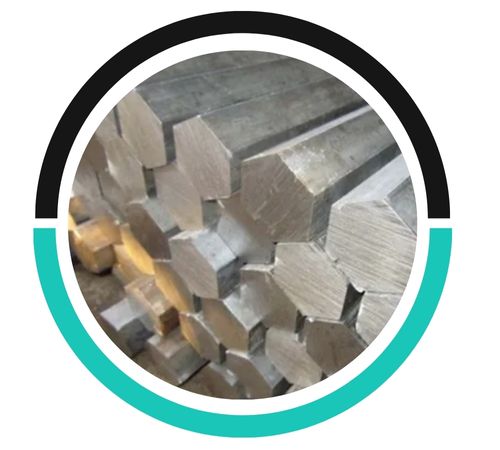

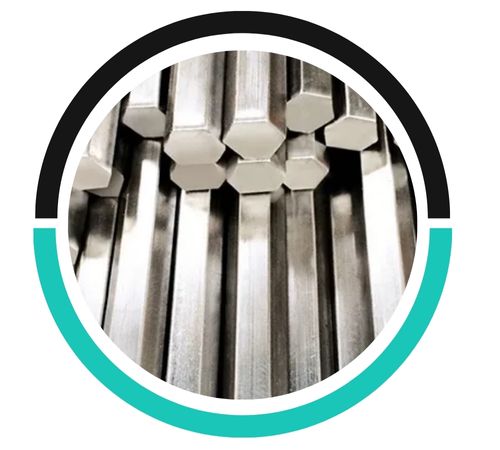

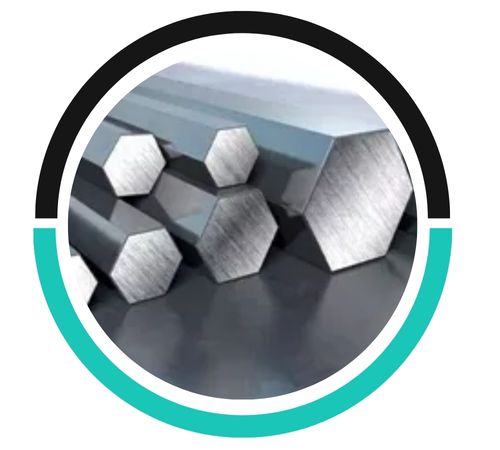

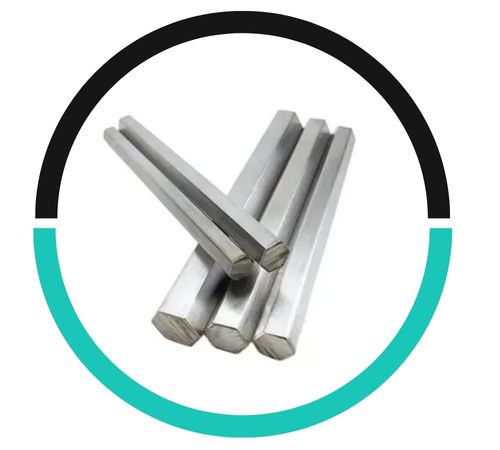

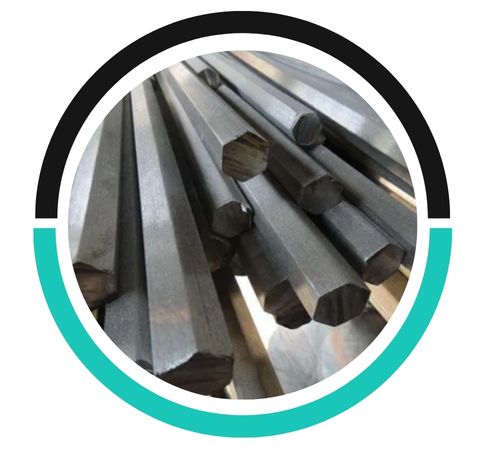

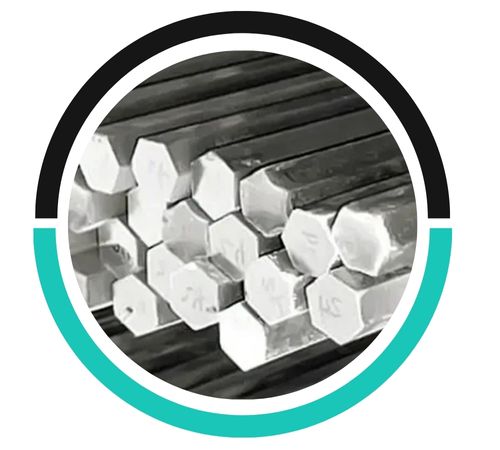

Based in Kolkata, India, Neil Metals is a well-known producer and supplier of premium stainless steel 440C hexagon bars, providing accuracy and quality to a variety of industries. Every 440C Hex Bar from Neil Metals is guaranteed to meet exacting quality standards for performance and durability thanks to its state-of-the-art infrastructure and knowledgeable staff. These hex bars are designed for demanding mechanical and industrial applications and are well-known for their exceptional strength, wear resistance, and hardness. Neil Metals is a reliable partner for stainless steel solutions in India and abroad, supported by timely delivery, affordable prices, and customer-focused service.
The high-carbon martensitic stainless steel 440C has a chromium content of roughly 16–18%, a carbon content of 0.95–1.20%, and trace amounts of silicon, manganese, and molybdenum. It achieves a high hardness level (up to 60 HRC) and provides exceptional wear resistance following heat treatment. The alloy exhibits good dimensional stability under mechanical stress and a tensile strength of approximately 760 MPa. 440C works well in mildly corrosive environments, which makes it perfect for precision components that need superior hardness and strength, even though its corrosion resistance is moderate when compared to austenitic grades.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 440C | 1.20-0.95 | 18.00-16.00 | 1.00 | 1.00 | 0.04 | 0.03-0.15 | 1.00 |
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 440C | 1.20-0.95 | 18.00-16.00 | 1.00 | 1.00 | 0.04 | 0.03-0.15 | 1.00 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Industries that require high hardness, strength, and wear resistance frequently use stainless steel 440C hex bars. The production of cutting tools, surgical instruments, ball bearings, valve components, and high-performance machine parts are examples of typical applications. Additionally, these bars are used in the automotive, aerospace, and defence industries for gears, shafts, and mechanical assemblies that require edge retention and durability. Furthermore, because they can withstand deformation and maintain tight tolerances, 440C hex bars are favoured in precision engineering, mould fabrication, and toolmaking. They are appropriate for a variety of high-stress industrial applications due to their adaptability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
