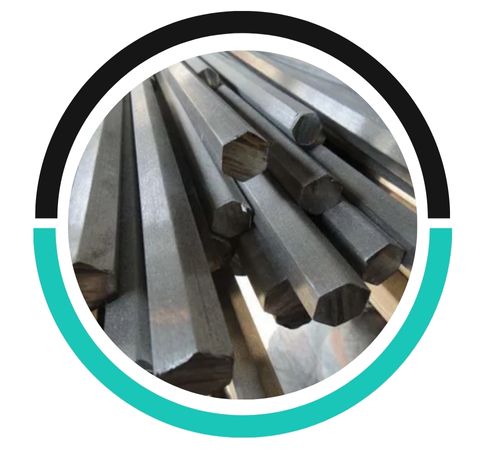

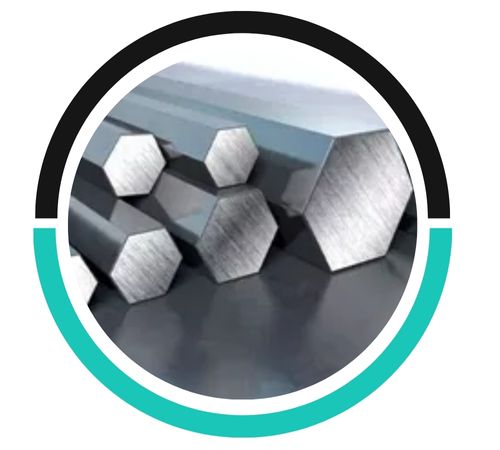

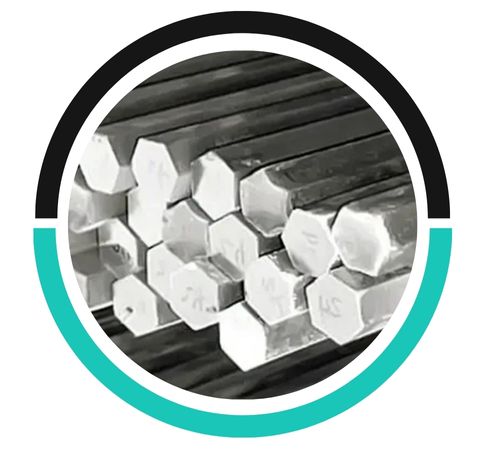

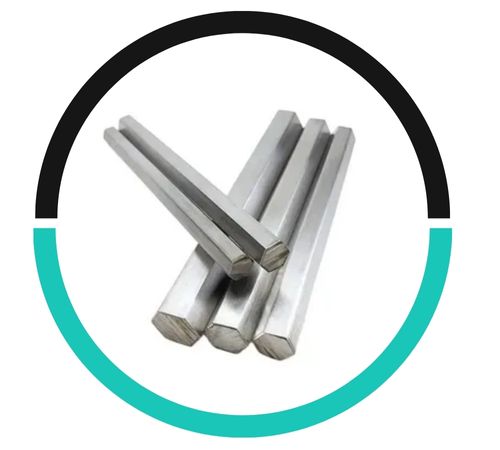

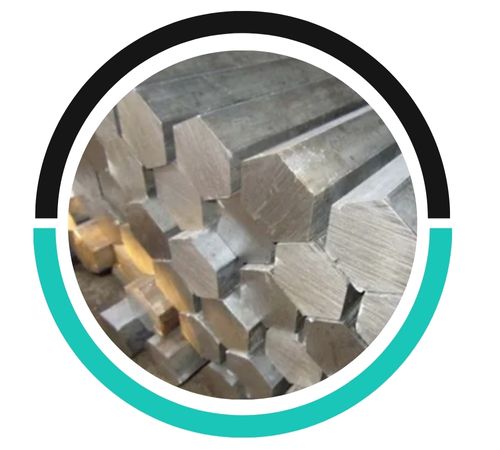

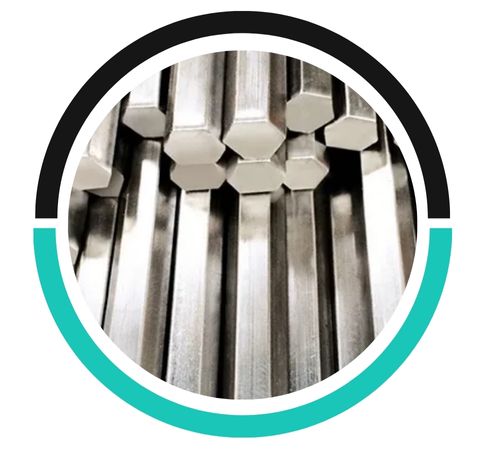

Located in Kolkata, India, Neil Metals is a reputable manufacturer and supplier that specialises in high-end stainless steel 431 hex bars made for demanding applications. Neil Metals produces hex bars that are renowned for their strength, resistance to corrosion, and superior machinability through meticulous engineering and adherence to global standards. Demanding industries like aerospace, defence, oil and gas, and marine engineering are perfect for these bars. Neil Metals guarantees prompt delivery and constant product excellence with the support of state-of-the-art manufacturing facilities and stringent quality checks. The company’s dedication to quality, customer satisfaction, and dependable supply of stainless steel products has earned it recognition both in India and overseas.
431 Stainless Steel The typical composition of Hex Bars, which are martensitic stainless steels, is 15.0–17.0% chromium, 1.25–2.5% nickel, 0.12–0.20% carbon, and trace amounts of silicon, phosphorus, sulphur, and manganese. They have a hardness of up to 250 HB when annealed, a high tensile strength of up to 850 MPa, and a yield strength of about 600 MPa. Particularly after heat treatment, this grade offers outstanding impact strength, high toughness, and good corrosion resistance. In mildly aggressive environments, SS 431 shows good resistance to fatigue and stress corrosion and is magnetic as well.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| ement | C | Cr | Mn | Ni | P | S | Si |
| SS 431 | 0.20 | 17.00-15.00 | 1.00 | 2.50-1.25 | 0.040- | 0.030 | 1.00 |
| Element | Density | Electrical Resistivity | Modulus of Elasticity |
| SS 431 | 0.2800 lb/inch³ | 70° Ohms (circ mil./ft.) | 29.0 X 10^3 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Because of their great strength and resistance to corrosion, stainless steel 431 Hex Bars are widely used in turbine blades, automotive axles, aerospace components, pump and valve parts, and marine shafts. They are appropriate for hydraulic machinery, chemical processing equipment, and oil and gas tools due to their superior mechanical qualities. Additionally, these bars are used in precision instruments, sporting goods, and defence applications where performance and durability are crucial. 431 hex bars are a popular option in demanding engineering and manufacturing sectors because of their hexagonal shape, which improves grip and machinability for fasteners, fittings, and structural assemblies.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
