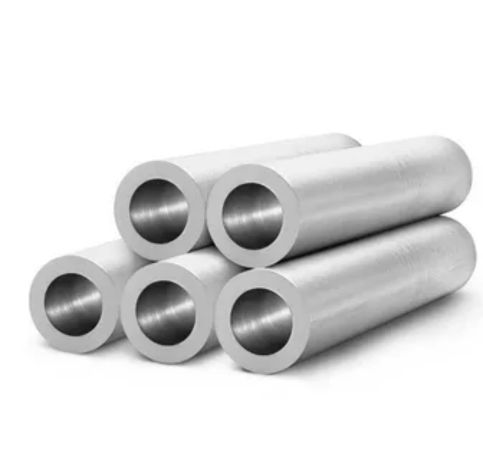

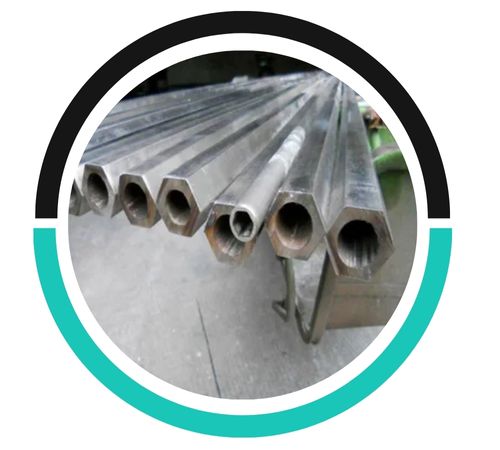

Located in Kolkata, India, Neil Metals is a reputable manufacturer and supplier that specialises in offering premium stainless steel 430 hollow bars to satisfy a range of structural and industrial requirements. Neil Metals provides 430 hollow bars that satisfy global requirements for corrosion resistance, finish, and durability through a dedication to precise engineering and reliable product performance. Their 430 hollow bars come in a variety of sizes and specifications to meet the needs of industries like home appliances, food processing, and construction. Neil Metals has established a solid reputation for dependability and affordability in stainless steel solutions through prompt delivery, strict quality control, and first-rate customer service.
The ferritic grade of stainless steel 430 has trace amounts of silicon, manganese, and iron along with roughly 16–18% chromium and less than 0.12% carbon. It provides a moderate level of corrosion resistance, particularly against stress corrosion cracking and oxidation. The material has good formability and machinability, a tensile strength of 450 MPa, a yield strength of about 205 MPa, and an elongation of 22%. At high temperatures, it retains its structural integrity and is magnetic. 430 stainless steel has good finish qualities and works well in mildly corrosive environments, despite not being as resistant as austenitic grades.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Range : Range – 3.17mm to 350mm dia
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 430 | 0.12 | 18.0 | 1.25 | – | 0.06 | 0.15 | 1.00 |
| Element | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell (HB) max) |
| SS 430 | 552 | 379 | 25 | 262 |
| Hollow Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.49 | 1.60 |
| 18 | 0.62 | 2.02 |
| 20 | 0.76 | 2.49 |
| 22 | 0.92 | 3.02 |
| 25 | 1.19 | 3.90 |
| 28 | 1.49 | 4.89 |
| 28 | 1.49 | 4.89 |
| 30 | 1.71 | 5.61 |
| 32 | 1.95 | 6.38 |
| 36 | 2.46 | 8.08 |
| 38 | 2.74 | 9.00 |
| 40 | 3.04 | 9.97 |
| 45 | 3.85 | 12.62 |
| 50 | 4.75 | 12.62 |
| 56 | 8.96 | 19.55 |
| 60 | 6.84 | 22.44 |
| 65 | 8.03 | 26.34 |
| 70 | 9.31 | 30.54 |
| 75 | 10.69 | 35.06 |
| 80 | 12.16 | 39.89 |
| 90 | 15.39 | 50.49 |
| 100 | 19 | 62.34 |
SS 430 offers good corrosion resistance in mildly corrosive environments but is less resistant than austenitic stainless steels like SS 304 or 316. It is more prone to corrosion in harsh environments, especially those with high chloride content.
SS 430 hollow bars typically range in outer diameters from 20mm to 300mm and wall thicknesses from 2mm to 30mm. Tolerances vary but are generally within ±0.5mm for diameter and ±0.2mm for wall thickness, depending on the manufacturer.
Because of their exceptional resistance to oxidation and heat stress, stainless steel 430 hollow bars are frequently used in appliance components, automotive trim, kitchen equipment, and architectural structures. They are used in interior applications and structural supports in the construction industry where there is little chance of corrosion. They are used in decorative panels, exhaust components, and trims in the automotive industry. 430 hollow bars are also utilised in commercial dishwashers, industrial ventilation systems, and food processing equipment where a blend of strength, durability, and moderate corrosion resistance is required. They are also helpful in some engineering applications because of their magnetic qualities.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
