Reputable manufacturer and supplier Neil Metals, with headquarters in Kolkata, India, provides high-end stainless steel 422 bars and rods that are made to withstand the demanding requirements of high-temperature and high-strength applications. Modern technology is used in the production of our SS 422 products, which are also subjected to stringent quality checks to guarantee long service life, mechanical integrity, and dimensional accuracy. Stainless Steel 422 Bars and Rods are perfect for the power generation, aerospace, and other industrial sectors because of their exceptional strength, oxidation resistance, and creep resistance. Throughout India and overseas, Neil Metals is dedicated to providing performance-driven stainless steel solutions along with dependable customer support and on-time delivery.
In addition to nickel and trace elements, Stainless Steel 422 is a martensitic stainless steel alloy that has roughly 11–13% chromium, 0.2–0.5% molybdenum, and 0.2–0.4% carbon. It has outstanding creep and oxidation resistance up to 1200°F (649°C) and a tensile strength of 655–895 MPa. High hardness and strength are attained after heat treatment, which qualifies it for demanding applications. Its usefulness is further increased by its moderate corrosion resistance and good machinability. The ability of SS 422 to retain mechanical integrity under thermal cycling and at high temperatures is especially well-known.
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard : ASTM A276, ASTM A479, ASTM A565
Material Grade : Stainless Steel 422 (UNS S42200)

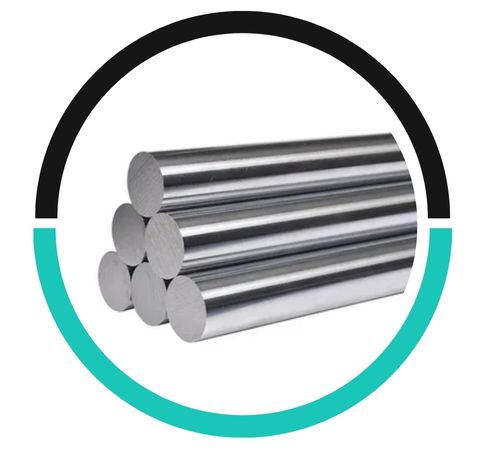

Stainless Steel 422 Round Bars : Outside Diameter in the range of 4mm to 500mm
Stainless Steel 422 Bright Bars : Outside Diameter in the range of 4mm to 100mm
Stainless Steel 422 Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Stainless Steel 422 Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Stainless Steel 422 Flats : 1/2” to 10” in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
| 422 | Max | Min |
| C | 0.25 | 0.20 |
| Mn | 1.00 | 0.50 |
| Si | 0.50 | – |
| P | 0.025 | – |
| S | 0.025 | – |
| Cr | 12.50 | 11.00 |
| Ni | 1.00 | 0.50 |
| Mo | 1.25 | 0.90 |
| V | 0.30 | 0.20 |
| W | 1.25 | 0.90 |
| Element | SS 422 |
| Tensile Strength | 140 ksi (965 MPa) |
| Yield Strength at 0.2% Offset | 115 ksi (793 MPa) |
| Elongation % | 13 |
| Reduction of Area % | 25 |
| Hardness HB | 293-341 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 422 | 1.4742 | S42200 | SUS 422 | 442S19 | – | – | – |
Stainless steel 422 bars and rods are frequently utilised in high-temperature and high-stress settings, especially in the power generation and aerospace sectors. Turbine blades, rotors, compressor parts, valve components, and structural fasteners that require strength and heat resistance are typical examples of applications. SS 422 is utilised in the energy industry for hot gas path hardware and steam turbine components. It is also perfect for engine parts and jet propulsion systems because of its capacity to maintain mechanical qualities at high temperatures. It is also utilised in nuclear reactors, industrial furnaces, and other environments where mechanical and thermal performance are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
