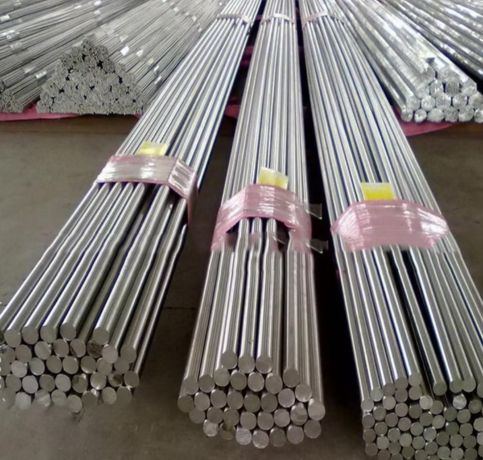

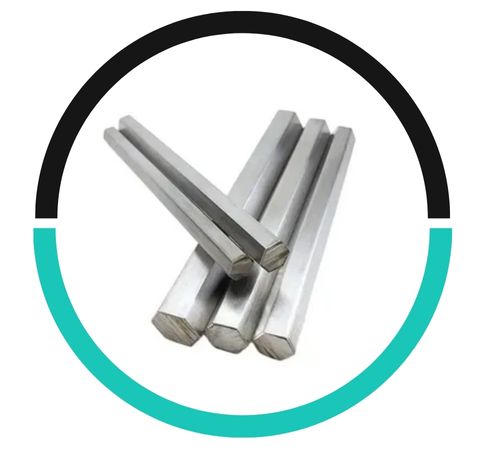

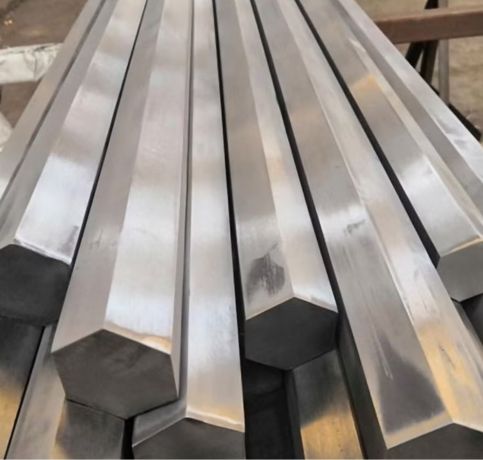

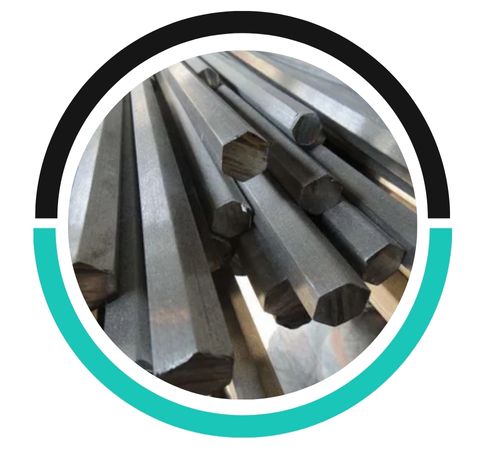

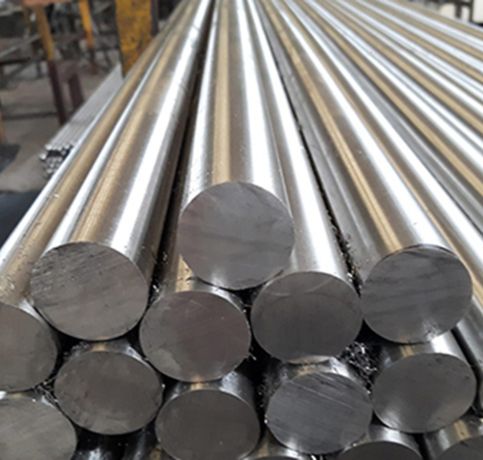

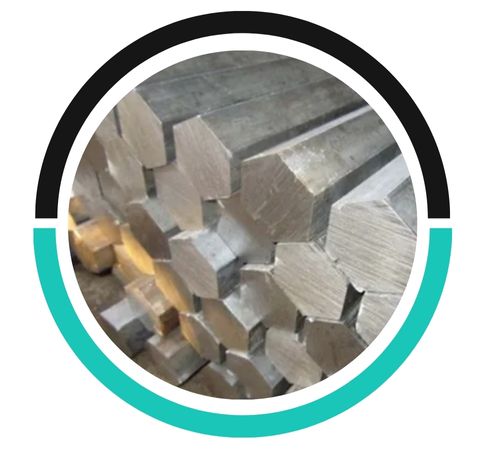

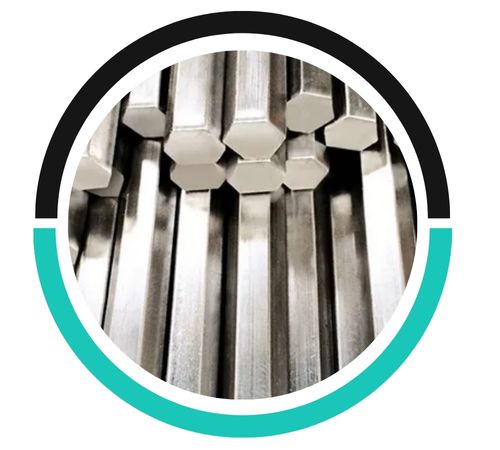

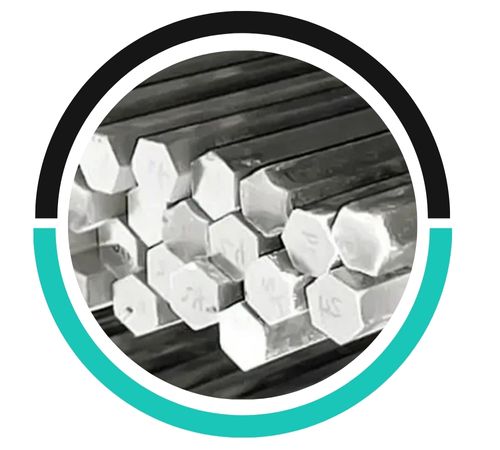

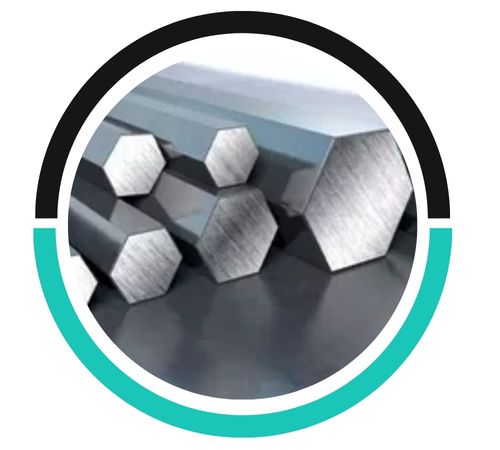

Based in Kolkata, India, Neil Metals is a top producer and supplier of premium stainless steel 347H hex bars and rods. Our speciality is offering high-temperature, corrosion-resistant stainless steel products that are made to withstand the demanding requirements of industrial settings. A high carbon version of 347, stainless steel 347H provides exceptional strength at high temperatures. Our precision-finished hex bars and rods are designed to be used in demanding settings like chemical processing, power plants, and refineries. Neil Metals serves customers in India and overseas markets with an emphasis on quality, prompt delivery, and customer satisfaction.
The composition of stainless steel 347H Hex Bars/Rods is 9–13% nickel, 17–19% chromium, and stabilised with niobium (columbium) to prevent intergranular corrosion. For increased high-temperature strength, the “H” grade contains more carbon (0.04–0.10%). This alloy exhibits good elongation and durability at high temperatures, with a yield strength of 205 MPa and a tensile strength of roughly 515 MPa. It is appropriate for high-stress, high-heat applications in challenging conditions because it retains structural integrity during thermal cycling and welding.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 347h | 0.08 max. | 17.0 – 19.0 | 2.00 max. | 9.0-13.0 | 0.045 max. | 0.03 max. | 0.75 max |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 347h | 7.96 | 1450 ℃ | 515 | 205 | 40 | 201 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Applications requiring high temperatures and pressure frequently use stainless steel 347H Hex Bars and Rods. They are perfect for use in pressure vessels, boiler tubes, superheaters, and heat exchangers in the petrochemical, power generation, and oil and gas sectors. The alloy is ideal for welded structures subjected to heat and stress because of its high carbon content and niobium stabilisation. Additionally, furnace components, chemical processing facilities, and aircraft exhaust stacks use these bars and rods. In precision-based industrial applications, their hexagonal shape guarantees increased strength and simplicity in the assembly of mechanical components.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
