Kolkata, India-based Neil Metals is a prominent producer and distributor of superior quality Stainless Steel 316L Square Bars/Rods that are renowned for their superior corrosion resistance and high strength. The organization uses cutting-edge production methods and quality control processes to provide products that surpass the stringent requirements of the marine, chemical, and pharmaceutical sectors. With dedication to accuracy and reliability, Neil Metals provides each 316L square bar or rod with the best performance in acidic and chlorideovic environments. Their professionalism and timely response make them a reliable name in the stainless steel industry, both nationally and globally.

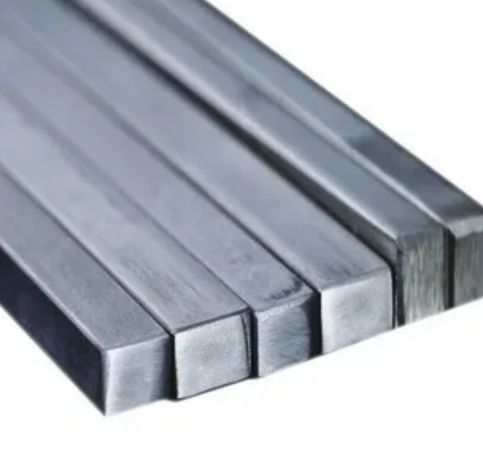

Stainless Steel 316L Square Bars/Rods are a low-carbon variant of the alloy 316 stainless steel, consisting mainly of 16–18% Chromium, 10–14% Nickel, and 2–3% Molybdenum to enhance the resistance to pitting and crevice corrosion. The carbon is restricted to less than 0.03% to avoid the sensitization of the material during welding. These bars/rods possess sound mechanical properties, such as tensile strength of about 485 MPa, yield strength of 170 MPa, and elongation of 40%. Their minimum carbon content provides improved weldability, making them ideal for fabrication in corrosive and high-temperature applications without loss of structural integrity.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 316l | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
| Element | Density, lb/in3 | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316l | 8.0 g/cm3 | 1400 °C (2550 °F) | 485 Min | 170 Min | 40% Min |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316l | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 316L Square Bars/Rods find extensive application in industries that require superior resistance to chemical attack and saltwater corrosion. Their non-reactive condition makes them suitable for marine parts, pharmaceutical process equipment, food and beverage equipment, heat exchangers, and chemical storage tanks. In architecture and construction, they find application in structural supports and aesthetic use because they are eye-catching and long-lasting. They are also the preferred choice in biomedical, textile, and pulp & paper industries where hygiene and resistance to corrosion are essential. Weldability and low maintenance make them even more versatile for use in extreme and sterile conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
