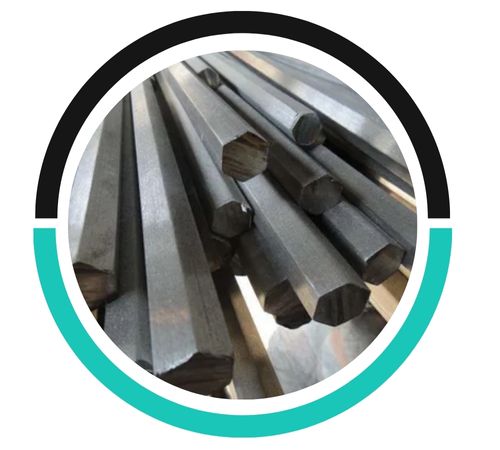

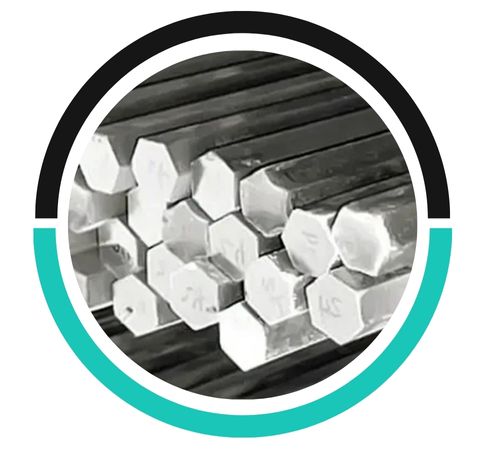

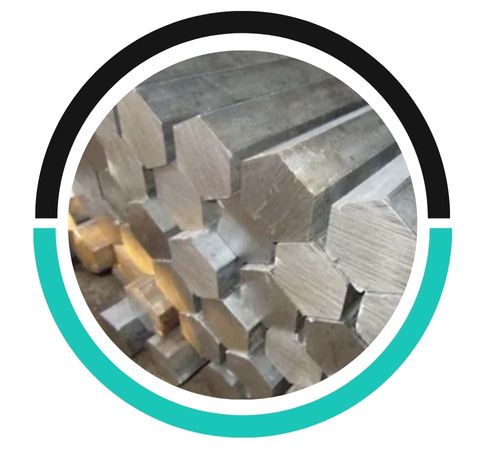

Neil Metals is a reputable manufacturer and supplier of Stainless Steel 310S Hex Bars and Rods, proudly based in Kolkata, India. Known for their commitment to high-quality stainless steel products, the company caters to a variety of industrial sectors with precision-engineered components. Their Stainless Steel 310S Hex Bars and Rods are crafted using cutting-edge technology and rigorous quality control measures, ensuring they are durable, resistant to corrosion, and perform exceptionally well in high-temperature settings. With a robust distribution network and a focus on customer satisfaction, Neil Metals has earned a strong reputation for reliability and excellence in the stainless steel industry, both in India and around the globe.
Stainless Steel 310S Hex Bars and Rods are primarily made up of chromium (24–26%) and nickel (19–22%), along with trace amounts of manganese, silicon, and carbon. This austenitic stainless steel grade is known for its high-temperature resistance and outstanding oxidation resistance. In terms of mechanical properties, it boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%, making it well-suited for demanding environments. Its well-balanced composition ensures excellent creep resistance and structural stability, which is crucial for long-term performance in thermal and chemical processing applications where strength and corrosion resistance are essential.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 310s | 0.08 max | 24.0 – 26.0 | 2.00 max | 19.0 – 22.0 | 0.045 max. | 0.03 max. | 1.50 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 310s | 8 | 1400 ℃ | 515 MPa | 205 | 40 – 50 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 310S hex bars/rods are primarily used in high-temperature applications, such as furnace components, heat exchangers, and petrochemical industries. They are also employed in the manufacturing of furnace parts, chimney liners, catalytic reactors, and welding electrodes due to their excellent oxidation, corrosion resistance, and strength at elevated temperatures.
SS 310S offers superior corrosion resistance compared to many other stainless steel grades, especially at high temperatures, due to its higher chromium and nickel content. It excels in resisting oxidation and scaling at temperatures up to 1100°C (2012°F), making it more heat-resistant than grades like SS 304 or SS 316.
Common manufacturing processes for SS 310S hex bars/rods include hot rolling, cold drawing, and extrusion. These methods shape the alloy into hexagonal rods while maintaining its mechanical properties. Heat treatment processes like annealing are also used to enhance corrosion resistance and improve the material's strength and ductility.
These Stainless Steel 310S Hex Bars and Rods are extensively utilized in high-temperature and corrosive settings due to their remarkable heat resistance and mechanical strength. They are commonly found in furnace components, heat exchangers, petrochemical processing, power plants, and food processing equipment. Their design makes them perfect for welding and forming applications in industries that require structural integrity under extreme conditions. The alloy’s resistance to oxidation and thermal fatigue also makes it ideal for exhaust systems, kilns, and parts for jet engines. Its versatility and dependability have made it a go-to choice for engineers and fabricators across a range of heavy-duty industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
