Neil Metals, a top Kolkata-based manufacturer and supplier, provides high-quality Stainless Steel 310 Forgings renowned for their impressive heat and oxidation resistance. Designed to function in high-temperature conditions, these forgings are precision-made to satisfy the high expectations of sectors like the petrochemical, power generation, furnace production, and thermal processing industries. With its emphasis on quality, reliability, and timely supply, Neil Metals makes sure that every forging conforms to international standards and specifications, thus making them a reliable partner for customers needing rugged, durable stainless steel parts.
Stainless Steel 310 Forgings contain 24–26% chromium and 19–22% nickel with a carbon level up to 0.25%. This austenitic stainless steel alloy has excellent resistance to oxidation, carburization, and sulfidation at elevated temperatures. It imparts a tensile strength of approximately 520 MPa and yield strength of 205 MPa, with satisfactory ductility and toughness even at high temperature conditions. The alloy exhibits structural stability against heat stress and possesses good creep resistance. Its excellent mechanical properties and corrosion resistance make it suitable for forging components subjected to thermal cycling and high-pressure applications.
| Standard | ASTM A182, ASME SA182 |
| Specification | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs. |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs. |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs. |

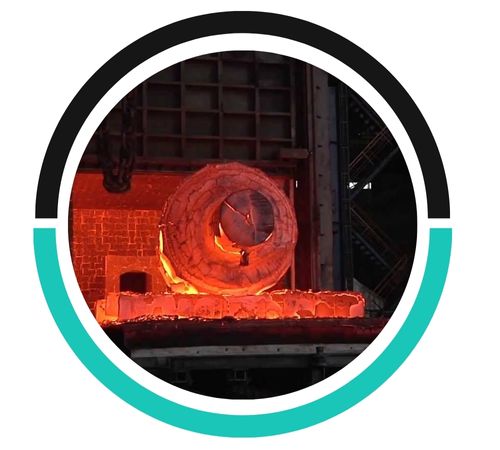

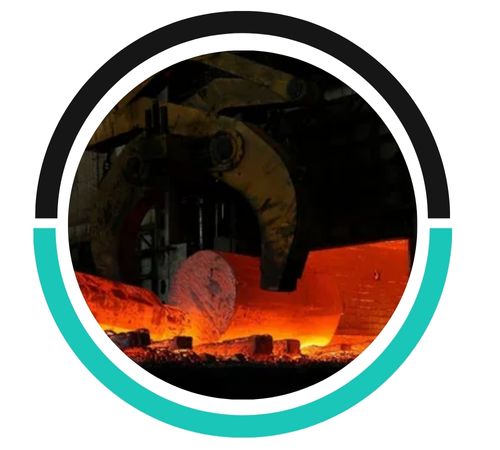

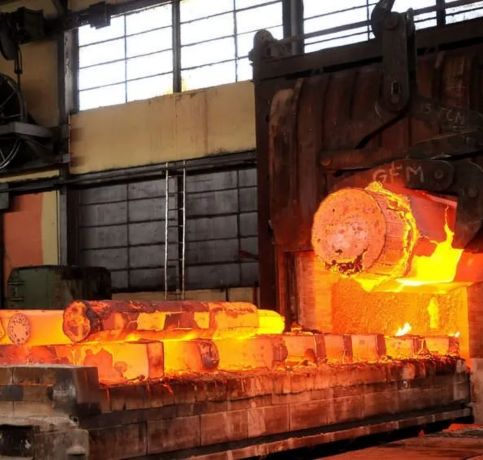

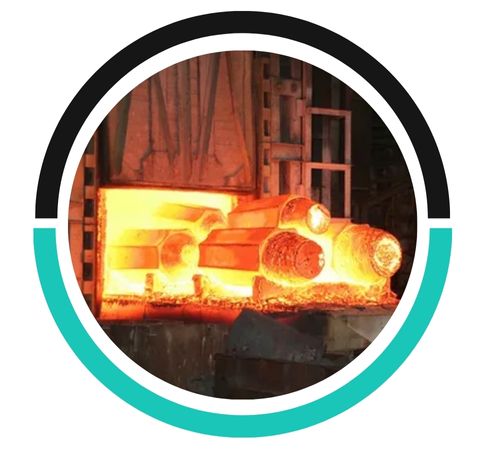

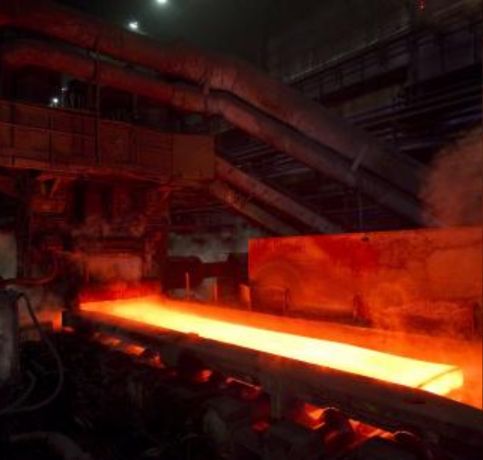

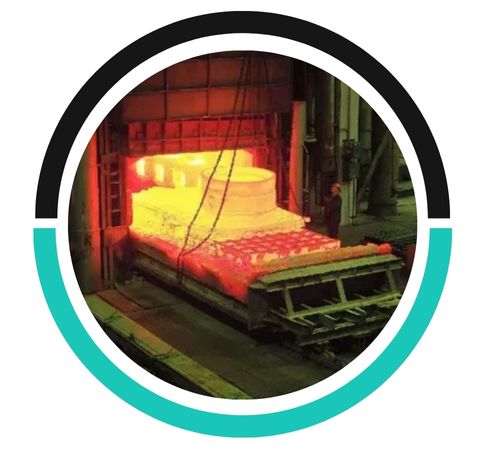

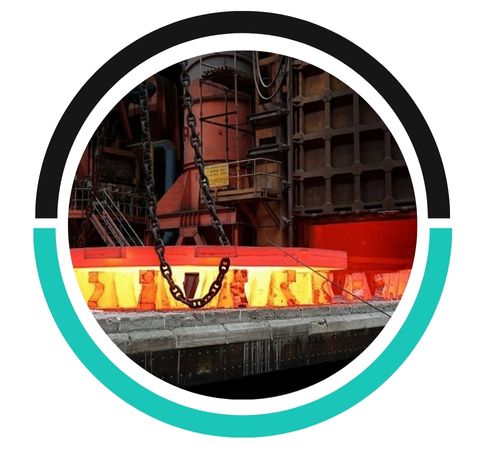

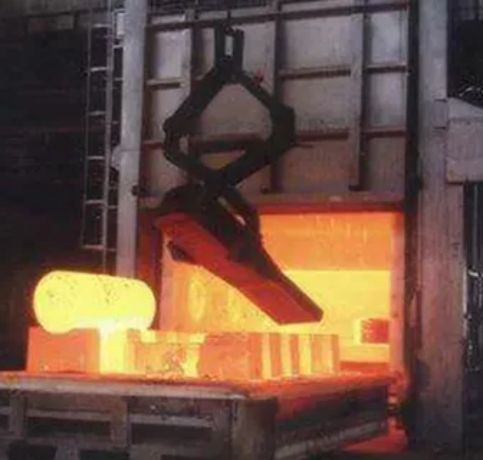

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 | 19.00 – 21.00 | 54.7 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
