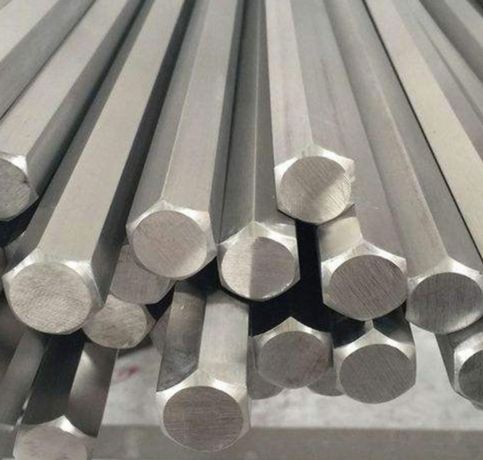

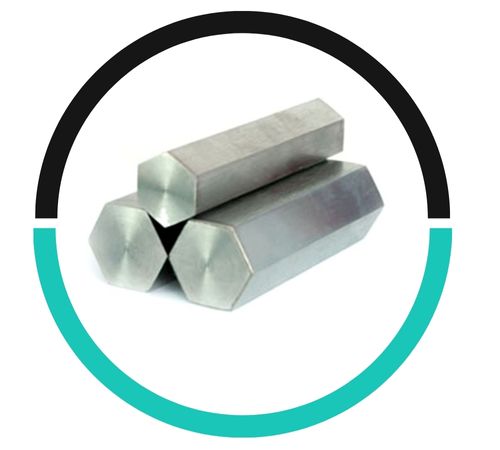

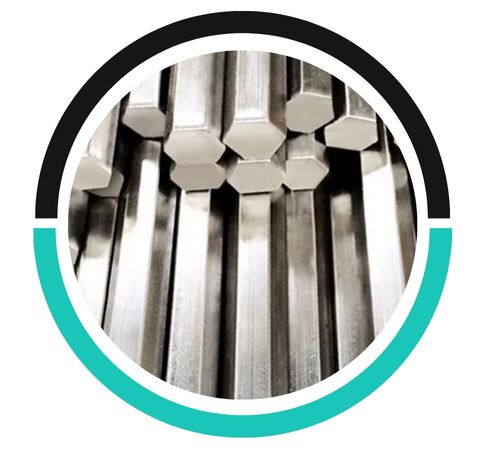

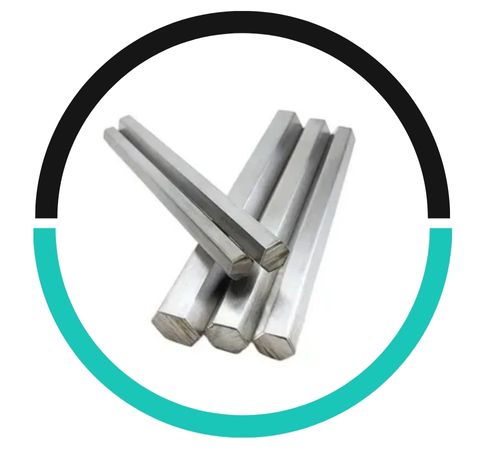

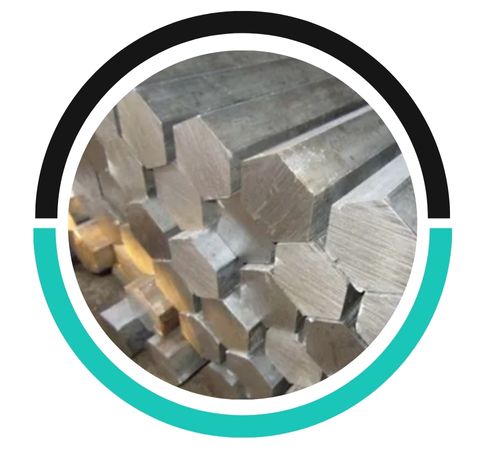

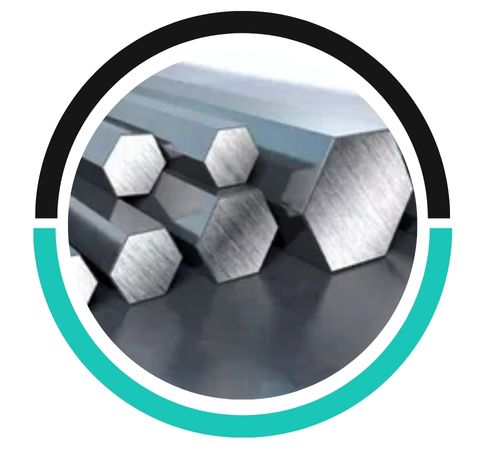

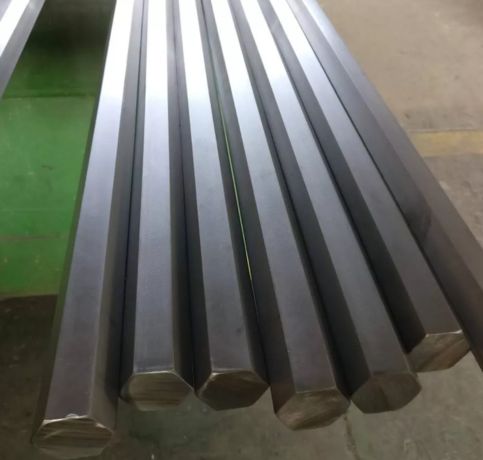

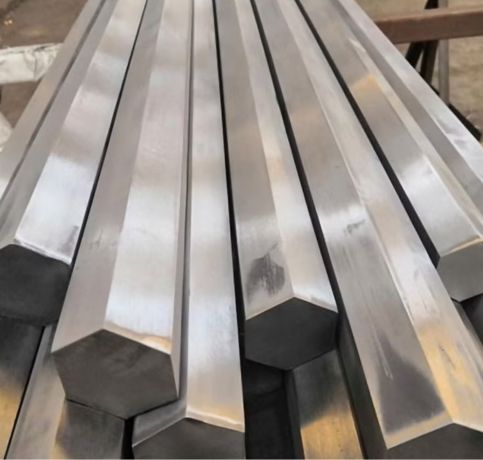

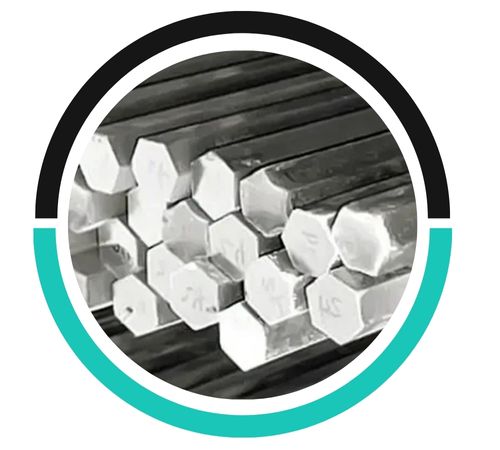

Neil Metals, a top Kolkata, India-based manufacturer and supplier, provides excellent Stainless Steel 17-7 PH Hex Bars and Rods designed for high-strength, hardness, and corrosion-resistant applications. Renowned for their dedication to precision and global quality standards, Neil Metals supplies industries like aerospace, automotive, defense, petrochemical, and marine with reliable stainless steel solutions. Their 17-7 PH hex bars are produced with state-of-the-art processes to guarantee uniform performance and reliability under both mechanical and corrosive stress, establishing them as a reliable partner in India and worldwide markets.
17-7 PH Hex Bars and Rods Stainless Steels are precipitation-hardening stainless steels consisting of about 17% chromium, 7% nickel, and traces of aluminum. They possess good mechanical properties with tensile strength of 930–1310 MPa and yield strength of up to 1170 MPa, based on the heat treatment condition (e.g., Condition A, TH 1050, or RH 950). They exhibit good fatigue endurance, low distortion after heat treatment, and fair corrosion resistance. The hexagonal form provides better gripping and machining, suitable for precision parts and fastening systems in high-stress applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-7 PH | .09 | – | 16.0 – 18.0 | – | Bal | 1.0 | 6.50 – 7.75 | .04 | 0.04 | 1.0 max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-7 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-7 PH | – | S17700 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
