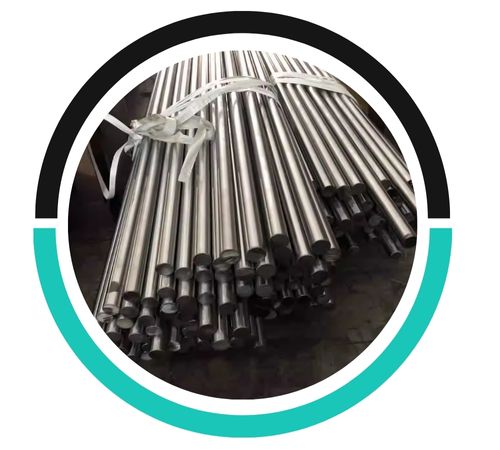

Neil Metals, located in Kolkata, India, has earned a solid reputation as a reliable manufacturer and supplier of Stainless Steel 17-7 PH Bars and Rods. They’re well-known for producing high-performance precipitation-hardening stainless steel products that boast impressive strength, hardness, and resistance to corrosion. These bars and rods find their way into demanding applications across various sectors, including aerospace, chemical, and marine industries. Neil Metals offers 17-7 PH stainless steel in a range of sizes, conditions, and specifications, all designed to meet global quality standards. With a strong commitment to precision, consistent mechanical properties, and customer satisfaction, Neil Metals has positioned itself as a trusted supplier in both domestic and international markets.
The composition of Stainless Steel 17-7 PH Bars and Rods primarily includes iron, chromium (17%), and nickel (7%), along with some aluminum and carbon. This unique blend allows for precipitation hardening through heat treatment, resulting in a remarkable tensile strength of up to 1300 MPa, along with excellent fatigue and creep resistance. After heat treatment, the material maintains good formability and dimensional stability. It also offers moderate corrosion resistance, comparable to Type 304 stainless steel, making it suitable for both industrial and marine environments.
Dimension : EN, DIN, JIS, ASTM, BS, ASME, AISI
Grade : 17-7 PH (UNS No. S17700) Round Bars
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

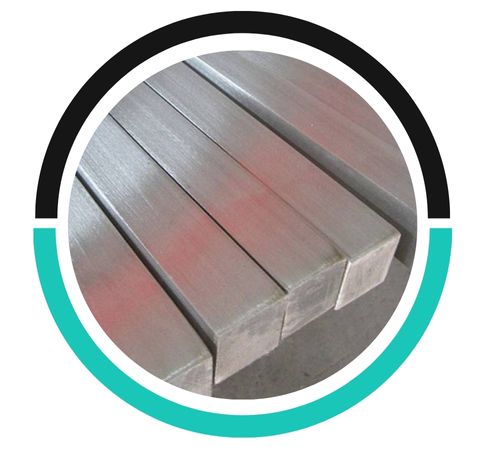

Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
Application : Chemical process, Food processing, Petrochemical, Pollution control, Pulp and Paper, Refining
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished.
Our 17-7 PH Round Bars conforms to NACE MR0175/ISO 15156
| Grade | C | P | Si | Ni | Cu | Fe | Mn | S | Cr | AL |
| SS 17-7 PH | .09 | .04 | 1.0 max | 6.50 – 7.75 | – | Bal | 1.0 max | 0.04 | 16.0 – 18.0 | .75 – 1.50 |
|
Properties |
Metric |
Imperial |
|---|---|---|
|
Tensile strength |
1170 MPa |
170000 psi |
|
Yield strength |
965 MPa |
140000 psi |
|
Modulus of elasticity |
204 GPa |
29600 ksi |
|
Poisson’s ratio |
0.27-0.30 |
0.27-0.30 |
|
Elongation at break |
6% |
6% |
|
Hardness, Rockwell C |
38 |
38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-7 PH | – | S17700 |
Stainless Steel 17-7 PH Bars and Rods offer exceptional strength, corrosion resistance, and fatigue resistance. These materials are specifically engineered for high-stress and high-performance applications. With superior mechanical properties and the ability to withstand harsh environments, they are ideal for industries like aerospace, automotive, and chemical processing, ensuring long-lasting performance and reliability.
Yes, Stainless Steel 17-7 PH Bars and Rods can be heat-treated to further enhance their mechanical properties. The material undergoes a precipitation hardening process that allows for precise control of strength and hardness, providing customized material characteristics for specific applications.
These Stainless Steel 17-7 PH Bars and Rods are essential in applications where high strength and minimal distortion are crucial. They’re commonly used in aerospace components like springs, diaphragms, and fasteners, as well as in structural parts for chemical processing equipment and heat exchangers. Additionally, they play a vital role in nuclear reactors, pressure vessels, and oil & gas systems. Thanks to their outstanding mechanical properties and dependable performance in corrosive and high-stress settings, 17-7 PH stainless steel bars and rods are the go-to choice for mission-critical engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
