Neil Metals, a renowned Kolkata, India-based manufacturer and supplier, provides high-strength Stainless Steel 15-5 PH Hex Bars and Rods designed for maximum strength, corrosion resistance, and toughness. Being experts in precision stainless steel solutions, Neil Metals provides 15-5 PH products meeting the stringent needs of aerospace, defense, petrochemical, and marine applications. Through advanced manufacturing processes, rigorous quality control, and emphasis on punctual delivery, Neil Metals has earned a robust reputation for reliability and technical excellence in domestic as well as international markets.

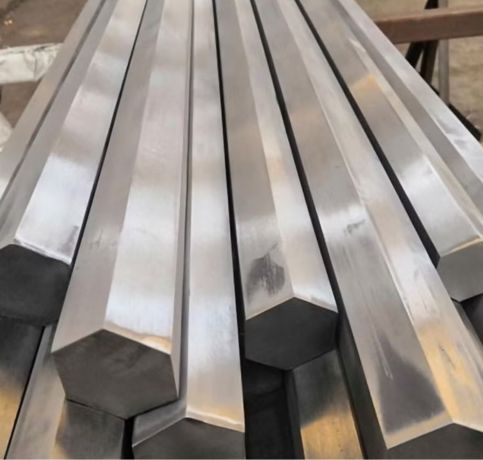

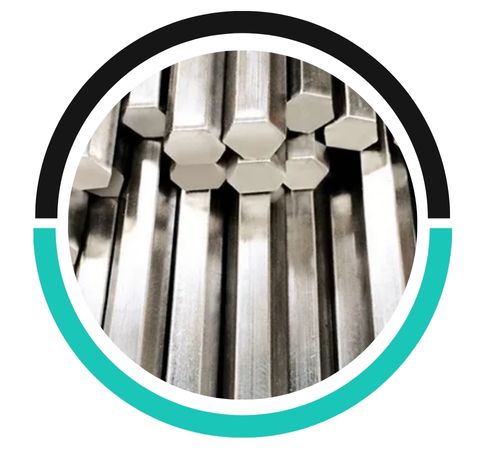

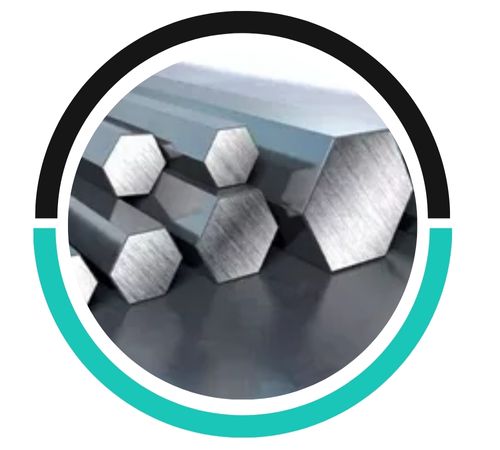

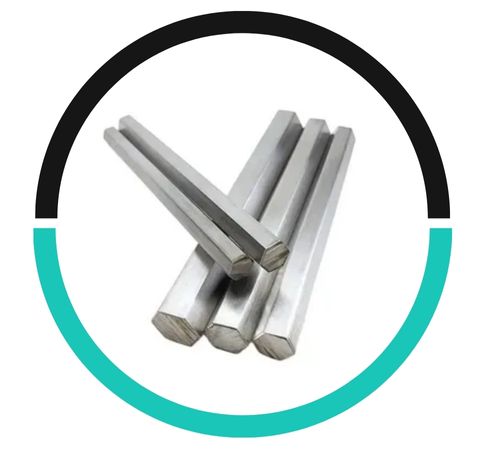

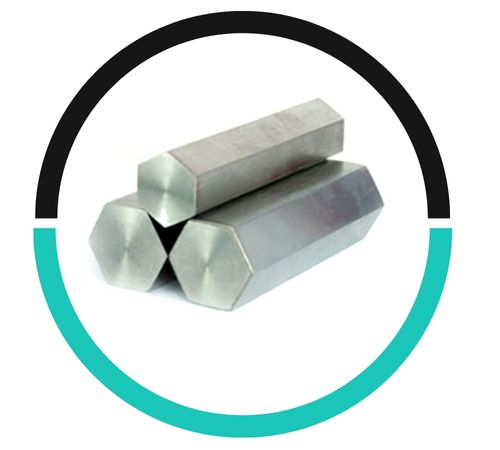

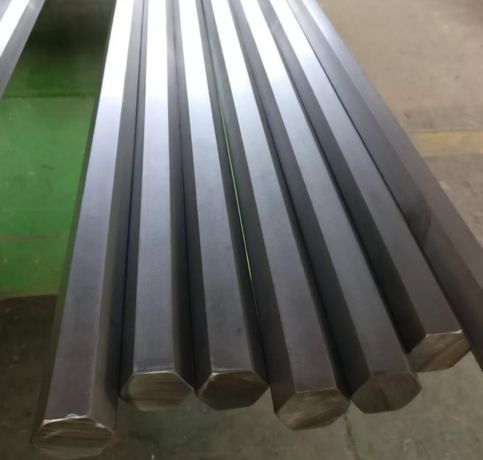

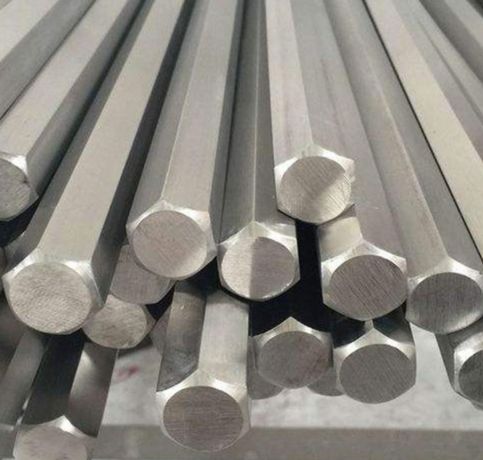

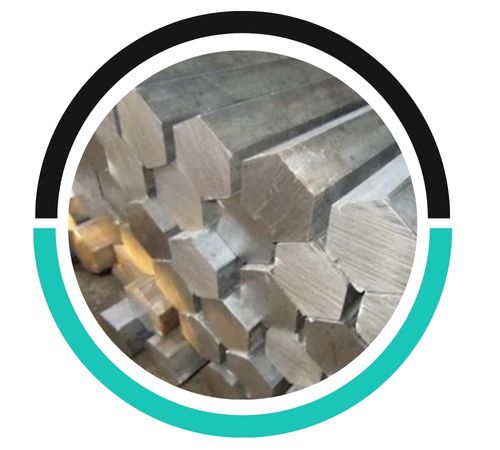

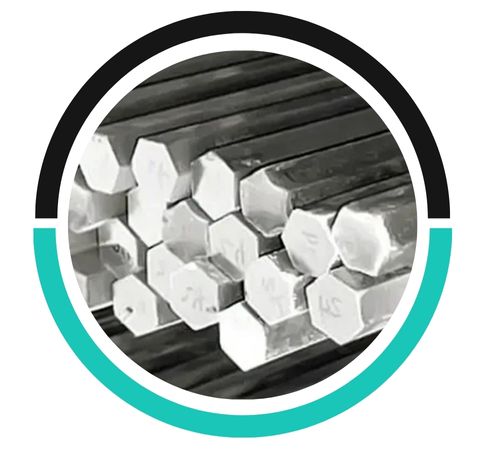

Stainless Steel 15-5 PH Hex Bars and Rods are martensitic precipitation-hardening stainless steels containing about 15% chromium and 5% nickel, along with traces of copper and other elements. They provide great mechanical properties with tensile strength of 930–1310 MPa and yield strength of 860–1170 MPa, depending on the heat treatment condition (H900 to H1150). The alloy offers great corrosion resistance, high strength, good toughness, and dimensional stability. The hex shape facilitates easy machining and reliable fastening applications, and hence it is suitable for high-stress and corrosive environments.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 15-5PH | 1.4545 | S15500 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 15-5 PH Hex Bars and Rods are extensively applied in high-strength, corrosion-resistant, and top-notch mechanical performance applications. Aerospace parts, shafts, gears, fasteners, structural components, and valve parts are some common applications. For their resistance to chloride stress corrosion cracking, in marine and petrochemical environments, they are applied to pump shafts, bolting, and pressure vessels. Their toughness and strength retention after heat treatment render them suitable for severe applications in defense, medical equipment, and high-performance engineering systems where performance and reliability are of prime importance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
