Neil Metals, a renowned manufacturer and supplier in Kolkata, India, provides high-quality Nitronic Bars and Rods with excellent strength, corrosion resistance, and performance in cryogenic and high-temperature applications. As a company that specializes in advanced stainless steel solutions, Neil Metals caters to various industries such as marine, aerospace, chemical processing, and food handling. Their Nitronic bars and rods are designed to satisfy international standards for durability, reliability, and long lifespan even in harsh mechanical and environmental conditions. Neil Metals values precision, quality, and timely delivery for global markets.
Nitronic Bars and Rods are high-performance austenitic stainless steel alloys consisting mostly of chromium (20–23%), manganese (4–6%), and nitrogen (0.2–0.4%), with moderate nickel and molybdenum. Grades Nitronic 50 and Nitronic 60 provide better mechanical properties, i.e., high tensile strength (to 1250 MPa), good yield strength, and excellent galling and wear resistance. These grades also maintain strength and ductility over a broad range of temperature from cryogenic to high temperatures and provide excellent corrosion resistance in chlorinated, acidic, and marine environments.
| Standards : | UNS S21906 | AMS 5656 | MIL-T-9821 | ASTM A276 | ASME SA276 UNS S21800 | Alloy 218 | ASME SA 193 | AMS 5848 | ASTM A 193 EN 1.3964 | ISO 15156-3 | NACE MR0175 | UNS S20910 | AMS 5764 | ASTM A193 | Werkstoff 1.3964 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

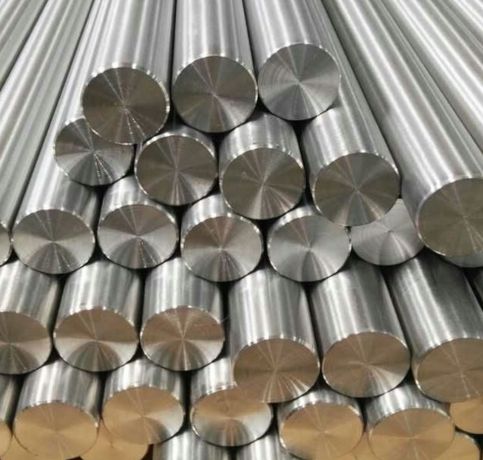

| Round bar size : | Diameter: 3-~800mm |

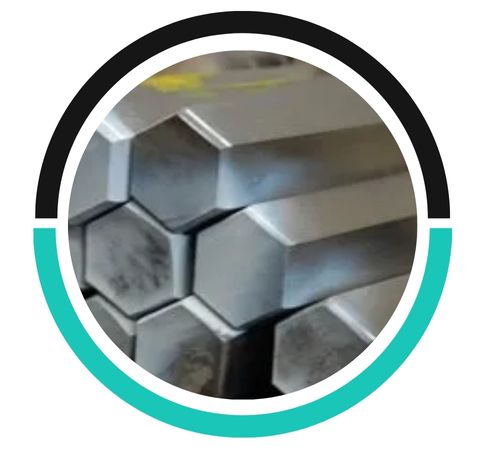

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

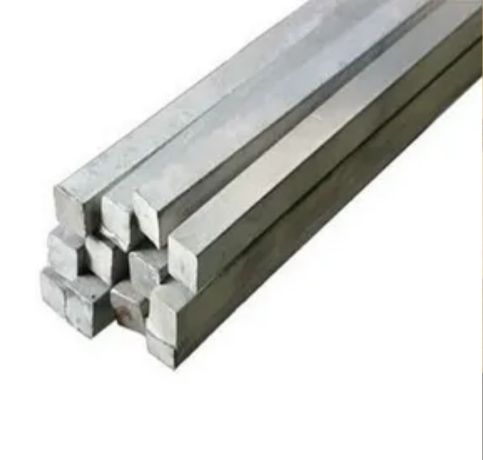

| Square bar size : | 4 to 100mm |

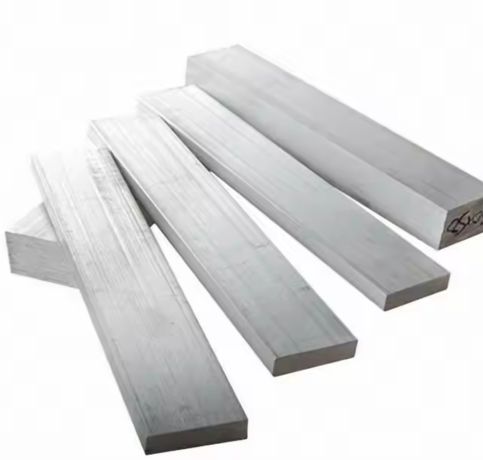

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Cr | Ni |
| Nitronic 50 | 0.06 max | 0.10 max | 0.1 max | 23.50 | 14.00 – 17.00 | 13.50 max |
| Nitronic 60 | 0.10 max | 9.00 max | 4.5 max | – | 18.00 | 9.00 max |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| Nitronic 50 | 95 | 50 | 35 % | 241 |
| Nitronic 60 | 105 | 55 | 35 % | – |
| STANDARD | UNS | EN | ISO | NACE | AMS | ASTM | Werkstoff | other |
| Nitronic 40 | S21906 | – | – | – | 5656 | A276 | – | MIL-T-9821 |
| Nitronic 50 | S20910 | 1.3964 | 15156-3 | MR0175 | 5656 | A193 | 1.3964 | MIL-T-9821 |
| Nitronic 60 | S21800 | – | – | – | 5848 | A193 | 1.3964 | Alloy 218 |
Nitronic Bars and Rods find general application in demanding industrial uses because of their special combination of strength, corrosion resistance, and non-magnetism. Some common applications are pump shafts, valves, fasteners, marine hardware, heat exchangers, and aerospace, chemical, and petrochemical structural components. Nitronic 60 is particularly appreciated for wear and galling resistance in metal-to-metal contact pieces, whereas Nitronic 50 is favored for its high strength and outstanding corrosion resistance. The bars and rods provide an economical substitute for more expensive alloys without sacrificing superior performance in demanding and corrosive service conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
