Neil Metals is a reliable producer and exporter of Nitronic 60 Bars and Rods in Kolkata, India. With a track record of producing high-performing specialty alloys, Neil Metals offers enhanced material solutions to petrochemical, marine, aerospace, and heavy engineering industries. The company focuses on quality control, prompt delivery, and customer satisfaction with products that achieve global standards of strength, wear resistance, and corrosion protection. Neil Metals Nitronic 60 Bars and Rods are designed to operate in the harshest conditions, offering outstanding metallurgical characteristics in combination with exact dimensional accuracy and lasting dependability.
Nitronic 60 Bars and Rods consist mainly of Iron, containing substantial levels of Chromium (17–20%), Nickel (8–9%), Manganese (8–9%), and Silicon (3.5–4.5%). Minor additions of Nitrogen and Molybdenum provide increased strength and corrosion resistance. This austenitic stainless steel has superior resistance against galling, wear, and fretting. Its average tensile strength is approximately 690 MPa, with a yield strength of 300 MPa and an elongation of about 35%. Nitronic 60 maintains high mechanical strength at high temperatures and has superior corrosion resistance compared to 304 and 316 and is hence suitable for severe, high-stress applications.

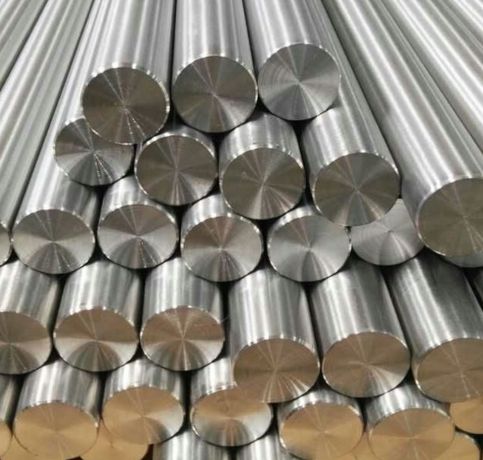

| Grade | Nitronic Alloy 60 (UNS No. S21800) Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

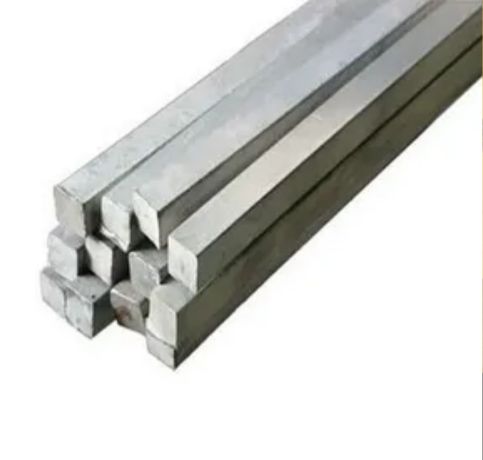

| Nitronic 60 Square bar size | 4 to 100mm |
| Nitronic Alloy 60 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic UNS S21800 Hex Bar size | 2-100mm A/F |
| Nitronic 60 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

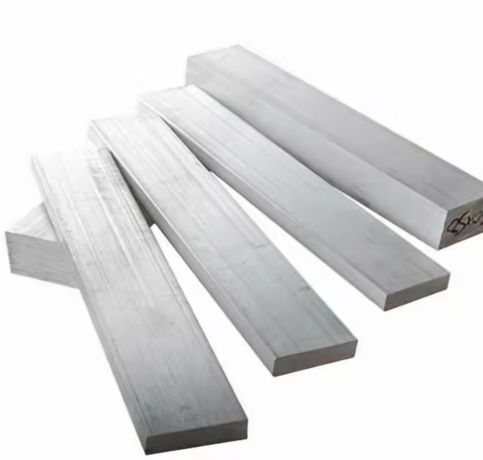

| Nitronic Alloy 60 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S21800 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 60 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic UNS S21800 Round bar size | Diameter: 3-~800mm |
| Nitronic 60 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic 60 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 60 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S21800 Technique | Nitronic 60 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 60 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 60 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 60 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 60 | 0.10 | 7.0 – 9.0 | 0.030 | 3.5 – 4.5 | 0.08 – 0.18 | 8.0 – 9.0 | 16.0 – 18.0 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Hardness MAX, Brinell | 241 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 60 Round Bars | S21800 | – |
Common finishes for Nitronic 60 Bar include mill finish, pickled and passivated, polished, brushed, and cold drawn. These finishes provide varying levels of smoothness, corrosion resistance, and aesthetic appeal.
The most common diameters for Nitronic XM 19 rod range from 0.125 inches (1/8") to 12 inches, with popular sizes including 1/4", 1/2", 1", 2", and 3".
Nitronic XM 19 rods typically come in standard sizes ranging from 1/8" to 3" in diameter, with lengths from 12" to 144". Custom sizes may also be available.
Nitronic 60 Bars and Rods find wide use in applications where there is a high level of resistance to galling and wear. They are found in valve stems, pump parts, fasteners, bushings, pins, shafts, and marine fittings. The alloy also operates well in dry and lubricated conditions, which makes it ideal for use in petrochemical, aerospace, and marine environments. It finds applications in nuclear power plants and food processing machinery where corrosion resistance and strength are crucial. Nitronic 60 is particularly prized where conventional stainless steels are failing because of seizing or galling in heavy loads or in repeated motion.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Neil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kolkata, India
