Neil Metals is a renowned Kolkata, India-based manufacturer and supplier of superior-quality Nitronic 50 Bars and Rods, renowned for their excellent corrosion resistance, tensile strength, and superior performance under sub-zero temperatures as well as higher temperatures. Produced as per international standards, Nitronic 50 finds applications in high-critical applications in marine, chemical processing, oil & gas, and pharmaceutical applications. With intense emphasis on product quality, accuracy machining, and timely shipment, Neil Metals has emerged as a reliable supplier to customers in India and foreign markets requiring sophisticated stainless steel materials.
Nitronic 50 Bars and Rods are produced from a nitrogen-hardened austenitic stainless steel alloy containing about 20–23% chromium, 11–13% nickel, 4–6% manganese, and minor amounts of molybdenum and nitrogen. This alloy offers almost double the yield strength of 304 and 316 stainless steels with excellent toughness and ductility. It provides tensile strength as high as 965 MPa and yield strength as high as 690 MPa in the annealed state. Nitronic 50 also exhibits non-magnetic properties even after cold working and exhibits high resistance to pitting, crevice corrosion, and chloride stress corrosion cracking.
| Grade | Nitronic Alloy 50 / XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

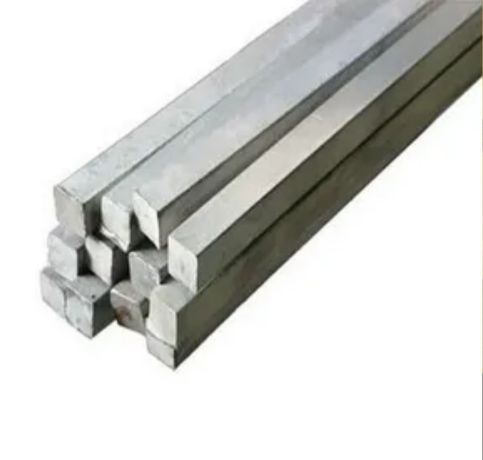

| Nitronic 50 Square bar size | 4 to 100mm |
| Nitronic Alloy 50 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

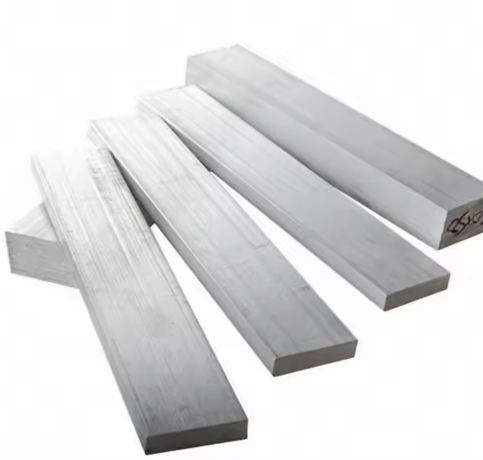

| Nitronic Alloy 50 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 50 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 50 Section | 3.0 to 12.0mm thickness |

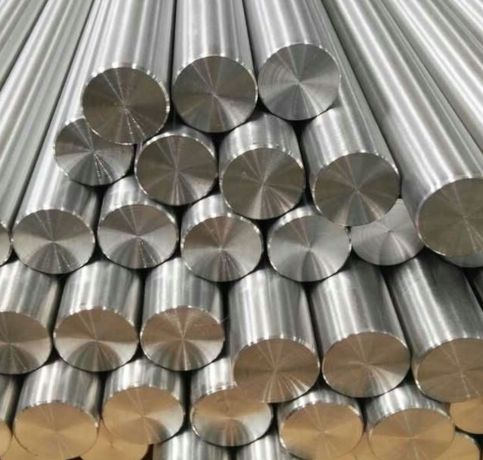

| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic 50 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 50 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 50 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 50 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic 50 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 50 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 50 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 50 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 50 | S20910 | 1.3964 |
Nitronic 50 Bars and Rods find extensive application in marine hardware, pump shafts, valves, heat exchangers, pressure vessels, and chemical processing equipment. Because of their resistance to seawater corrosion, they are preferred for offshore oil rigs as well as shipbuilding. In the pharmaceutical and food processing industries, they find application in areas where cleanliness, strength, and corrosion resistance are critical. Nitronic 50 finds application in aerospace fasteners, nuclear components, and medical devices. With good mechanical strength and resistance to severe environments, Nitronic 50 provides long-term performance and reliability in severe industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
