Neil Metals, based in Kolkata, India, is a dedicated manufacturer and supplier of Nitinol Superelastic Bars, providing cutting-edge material solutions for industries that demand exceptional flexibility, shape memory, and biocompatibility. Nitinol, a nickel-titanium alloy, is renowned for its remarkable superelastic and shape memory characteristics, making it perfect for specialized engineering and medical uses. Neil Metals offers Nitinol Superelastic Bars in various diameters and specifications tailored to meet client needs. With a strong emphasis on quality control, advanced production methods, and a customer-centric approach, Neil Metals caters to high-tech sectors with dependable, high-performance Nitinol products.
These Nitinol Superelastic Bars consist of about 55% nickel and 45% titanium. This nearly equal mix allows the alloy to undergo significant deformation and then spring back to its original shape without any lasting strain, thanks to a reversible phase transformation between austenite and martensite structures. The bars showcase outstanding elasticity, boasting a tensile strength of around 895–965 MPa and an elongation of over 10–15%. Their superelastic properties kick in at or near body temperature, making them particularly well-suited for medical applications, all while ensuring corrosion resistance and excellent fatigue performance.
| Standards : | ASTM F2063, ASME SF2063 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |

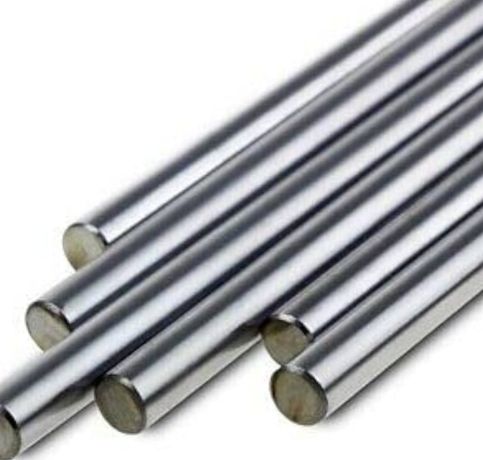

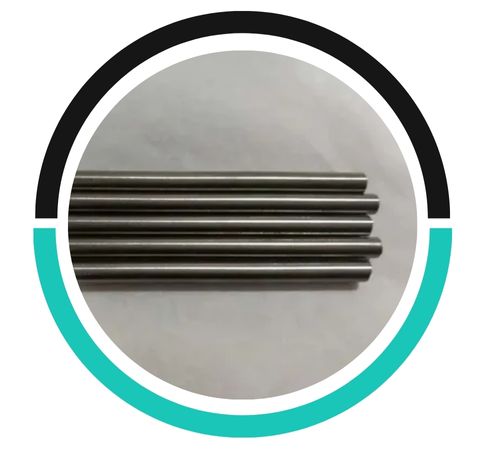

| Round bar size : | Diameter: 3-~800mm |

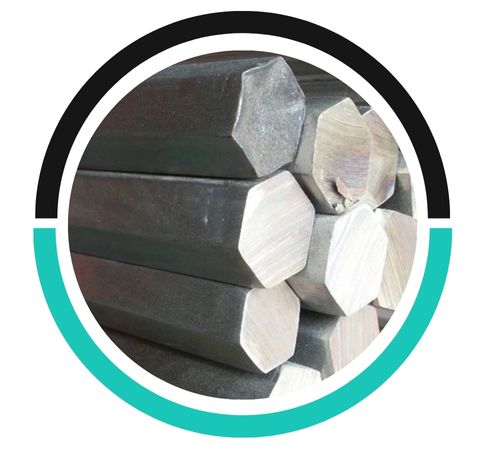

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

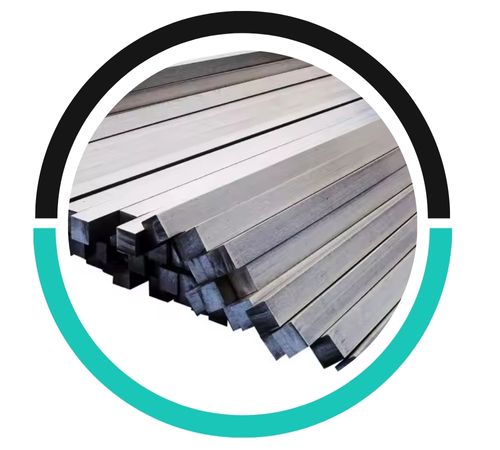

| Square bar size : | 4 to 100mm |

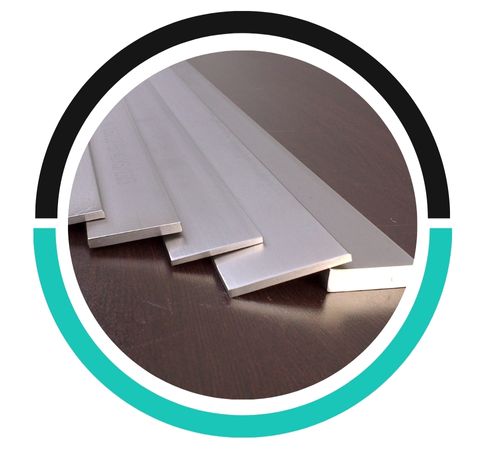

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | Ni | N+O | Fe | Co | C | Nb | Cr | Cu | H | Ti |
| Nitinol | 54.5 – 57.0 | 0.050 | 0.050 | 0.050 | 0.050 | 0.025 | 0.010 | 0.010 | 0.005 | Bal |
| Element | Density | Melting Point | Elongation |
| Nickel-titanium Alloy | 6.45 g/cm3 – 0.234 lb/in3 | Around 1310 °C. | 10 % |
| STANDARD | UNS |
| NiTi Alloys | N01555 |
Nitinol superelastic bars are used in aerospace, medical devices, robotics, automotive, and electronics industries. They provide flexibility, durability, and corrosion resistance, making them ideal for high-performance, precision applications.
Yes, Nitinol superelastic bars can be welded, but it requires specialized techniques due to their unique properties. Proper heat control is essential to prevent loss of superelasticity and material integrity.
Yes, Nitinol superelastic bars and rods are highly customizable. They can be tailored in terms of size, shape, alloy composition, and specific superelastic properties to meet unique application requirements.
In the medical field, Nitinol Superelastic Bars are commonly used to create stents, guidewires, orthodontic archwires, and surgical instruments, thanks to their ability to adapt to body movements and regain their shape. In aerospace and robotics, they find applications in actuators, couplings, and vibration dampers, leveraging their elasticity and durability. The automotive industry also makes use of them in temperature-sensitive controls and sensors. With their unique blend of flexibility, memory, and strength, Nitinol Superelastic Bars are essential for applications where traditional materials just can’t keep up.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
