Neil Metals, located in Kolkata, India, has built a solid reputation as a manufacturer and supplier of Nimonic 80A Bars and Rods. They’re well-known for providing top-notch products that are specifically designed to thrive in high-temperature and high-stress environments. These bars and rods are a go-to choice for demanding industrial applications, thanks to their remarkable mechanical strength, resistance to oxidation, and metallurgical stability. Neil Metals offers Nimonic 80A in a variety of sizes, finishes, and custom specifications to align with international standards and the unique needs of different projects. With a strong commitment to precision, quality control, and customer satisfaction, Neil Metals caters to clients in the aerospace, power generation, automotive, and chemical industries.
Nimonic 80A Bars and Rods are primarily made up of nickel (about 76%), with notable amounts of chromium (19–21%), along with titanium and aluminum for precipitation hardening. This unique blend gives them outstanding tensile strength, creep resistance, and oxidation resistance at high temperatures, reaching up to 815°C. The alloy boasts a tensile strength of around 125 ksi (860 MPa) and impressive fatigue resistance, making it ideal for extended use under thermal and mechanical stress. It can also be heat-treated to boost its strength and stability even further.
| Standards | Designation |
|---|---|
| ASTM | B637 |
| Length | Diameter |
|---|---|
| 2-12m | 6mm-500mm |
| Type | Certification |
|---|---|

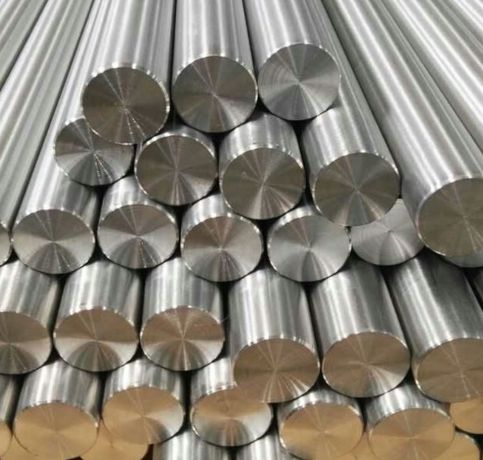

| Nimonic 80A Round Bar | ISO 9001:2008 |
| Weight % | Ni | Cr | Ti | Al | C | Si | Cu | Fe | Mn | Co | B | Zr | S |
| Alloy 80A | Bal | 18.0-21.0 | 1.8-2.7 | 1.0-1.8 | 0.10 max | 1.0 max | 0.2 max | 3.0 max | 1.0 max | 2.0 max | 0.008 max | 0.15 max | 0.015 max |
| Material | Condition | Ultimate Tensile Strength ksi | Yield Strength ksi | Elongation on 4D (min) | Hardness min |
| Alloy 80A | Solution Annealed & Precipatation Treated (aged) | 145 | 90 | 20 | 300 HV |
|
Density |
8.19 g/cm3 |
| Melting point | 1320-1365°C |
Yes, Nimonic 80A, a nickel-based alloy, can be susceptible to galvanic corrosion when in contact with materials that have significantly different electrochemical potentials, especially in the presence of an electrolyte.
Yes, Nimonic 80A bar can be welded. It is commonly welded using techniques like TIG or MIG welding, with preheating and post-weld heat treatment to prevent cracking.
Nimonic 80A bars are available in various sizes, typically from 6mm to 250mm in diameter, and lengths up to 6 meters. Common finishes include bright, polished, and cold-drawn.
In the aerospace sector, Nimonic 80A Bars and Rods are commonly used to manufacture turbine blades, exhaust systems, and afterburner components. In power generation, they play a crucial role in gas turbines, boiler components, and nuclear reactor systems. The automotive and marine industries rely on them for high-performance engine parts that face extreme heat and pressure. Additionally, these bars are utilized in industrial furnaces, chemical processing, and heat treatment equipment. With their exceptional durability and resistance to thermal fatigue and oxidation, Nimonic 80A Bars and Rods are a dependable choice for tackling the toughest engineering challenges.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Neil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kolkata, India
