Neil Metals, located in Kolkata, India, has built a solid reputation as a manufacturer and supplier of high-performance Nimonic 115 Bars and Rods. They specialize in providing tailored solutions for environments that experience extreme high temperatures and high stress. With a strong commitment to quality, precision, and reliability, Neil Metals delivers Nimonic 115 products that adhere to global standards, particularly in the aerospace, turbine, and nuclear sectors. Their bars and rods are celebrated for their outstanding oxidation resistance, creep strength, and stability even at elevated temperatures. Supported by modern infrastructure and a team of technical experts, Neil Metals guarantees timely delivery and customized specifications to meet the demanding needs of critical industrial applications.
Nimonic 115 Bars and Rods are primarily made up of nickel (about 55–60%), cobalt (15–20%), chromium (14–16%), along with small amounts of aluminum, titanium, molybdenum, and zirconium. This superalloy showcases remarkable mechanical strength and oxidation resistance at temperatures that can exceed 1000°C. It boasts a tensile strength of around 1000 MPa and exceptional creep and rupture resistance under high-stress conditions. Additionally, Nimonic 115 offers excellent structural stability and corrosion resistance, making it a top choice for aerospace and high-temperature industrial applications where performance and reliability are absolutely essential.
| Grade | Nimonic 115 – UNS |
|---|---|
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS |

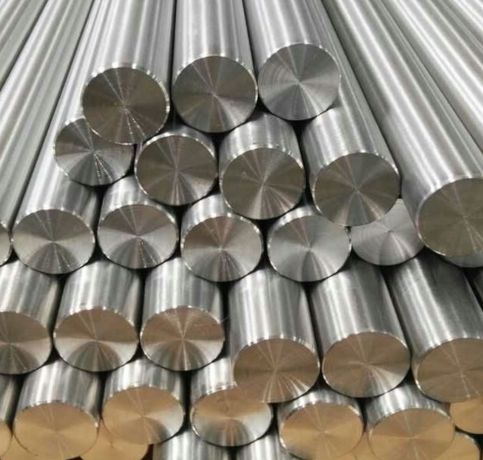

| Nimonic 115 Round bar size | Diameter: 3mm~800mm |
| Nimonic 115 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

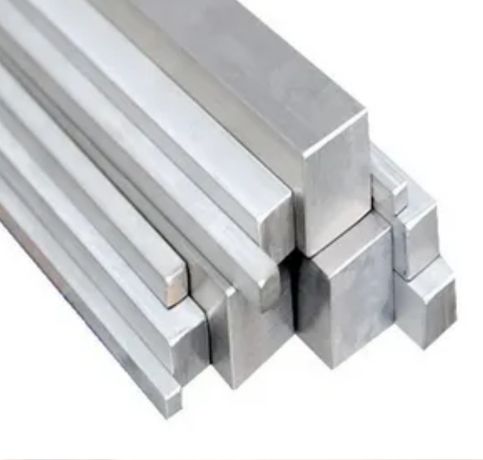

| Nimonic 115 Square bar size | 4mm*4mm~100mm*100mm |
| Nimonic 115 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Nimonic 115 Hex Bar size | 2mm~100mm |
| Nimonic 115 Billet Size | 1/2″ to 495mm Diameter |

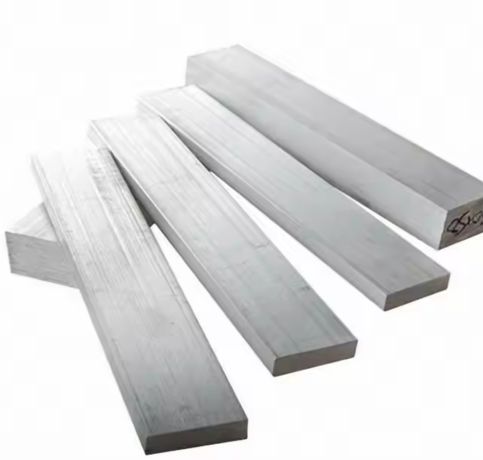

| Nimonic 115 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 115 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 115 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Element | Content (%) |
|---|---|
| Nickel, Ni | 54 |
| Chromium, Cr | 14.0-16.0 |
| Cobalt, Co | 13.0-15.5 |
| Aluminum, Al | 4.50-5.50 |
| Molybdenum, Mo | 3.0-5.0 |
| Titanium, Ti | 3.50-4.50 |
| Iron, Fe | 1.0 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Copper, Cu | 0.20 |
| Zirconium, Zr | 0.15 |
| Carbon, C | 0.12-0.20 |
| Sulfur, S | 0.015 |
| Boron, B | 0.010-0.025 |
| Tensile Strength | Min 185KSI | Min 1277MPA |
| Yield Strength | Min 141KSI | MIN 973MPA |
| Elongation | Min 38% |
| Alloy Name | Trade Name | UNS No. | British Specs | American Specs | German Specs | French Specs |
|---|---|---|---|---|---|---|
| Alloy 115 | Nimonic 115 | BS HR4 | WS 2.4636 | AFNOR NCK 15ATD |
Nimonic 115 rods are available in sizes ranging from 1/8" to 4" diameter. Finishes include cold drawn, polished, and rough turned, suitable for high-temperature applications.
Nimonic 115 rods typically come in standard sizes ranging from 1/8" to 6" in diameter, with lengths varying from 3' to 20' depending on the manufacturer and customer specifications.
Yes, Nimonic 115 rods can be supplied in both polished and matte finishes, depending on the specific requirements and customer preferences. These finishes are available from various suppliers.
These Nimonic 115 Bars and Rods find extensive use in applications that demand exceptional strength and oxidation resistance in extreme temperatures. In the aerospace sector, they are utilized for turbine blades, jet engine components, and exhaust systems. Power generation facilities rely on them for gas turbines, combustion chambers, and heat exchangers. The nuclear industry uses Nimonic 115 for reactor cores and high-temperature structural supports. These rods are also perfect for high-pressure valves, fasteners, and critical hardware in chemical plants. Their ability to endure thermal fatigue and maintain integrity in harsh environments makes them vital in advanced engineering and high-performance applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
