Neil Metals is a well-respected manufacturer and supplier located in Kolkata, India, specializing in high-performance Nimonic 105 Bars and Rods for a variety of industries. These products are celebrated for their exceptional heat and oxidation resistance, making them perfect for extreme environments, particularly in aerospace and high-temperature applications. Neil Metals provides precision-engineered Nimonic 105 items in a range of sizes, finishes, and custom specifications, all while adhering to international quality standards. With a solid reputation for timely deliveries, competitive pricing, and outstanding customer support, Neil Metals has become a trusted source for top-notch Nimonic 105 Bars and Rods both in India and internationally.
Nimonic 105 Bars and Rods are primarily made up of nickel (about 55%) and cobalt (roughly 20%), along with chromium (15%), aluminum, titanium, and molybdenum. This unique blend gives them remarkable strength and resistance to high-temperature corrosion. The alloy boasts a tensile strength of around 150 ksi (1034 MPa) and a yield strength of about 110 ksi (758 MPa), along with excellent creep and stress-rupture properties. These bars and rods can operate at temperatures exceeding 950°C, making them ideal for high-stress applications that demand stability, durability, and a long service life.
| Standards : | Nimonic 105 Rod, Bar |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

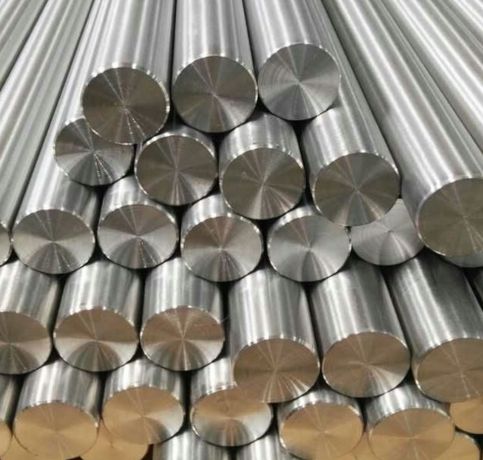

| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

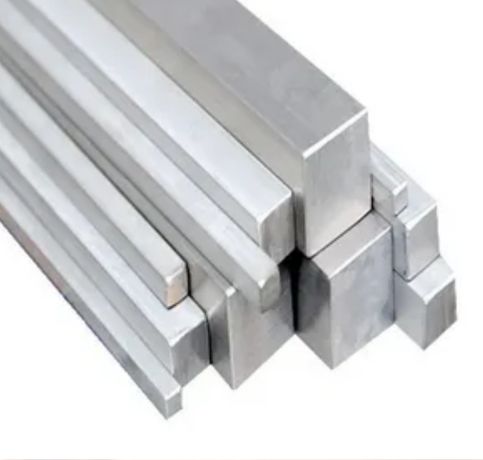

| Square bar size : | 4 to 100mm |

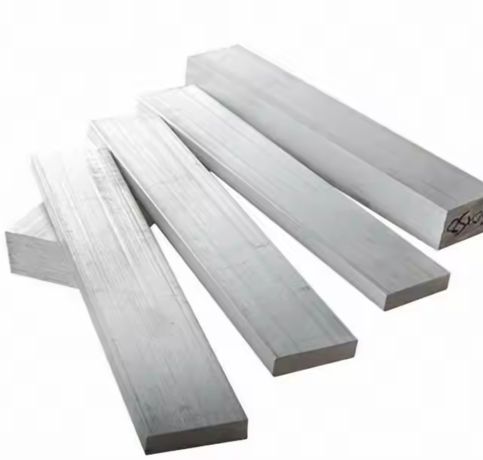

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Alloy | C | Si | Cu | Fe | Mn | Cr | Ti | Al | Co | Mo | Pb | S | B | Zr | Ni |
| 105 | 0.12 | 1.0 | 0.2 | 1.0 | 1.0 | 14.0-15.7 | 0.9-1.5 | 4.5-5.5 | 18.0-22.0 | 4.5-5.5 | 0.0015 | 0.010 | 0.003-0.010 | 0.15 | Bal |
| Alloy | Tensile Strength Minimum (psi) | Yield Strength Minimum 0.2% offset (psi) | % Elongation in 2″ Minimum |
| 105 | 167,000 | 112,000 | 25 |
Yes, Nimonic 115 rods can be supplied in both polished and matte finishes, depending on the specific requirements and customer preferences. These finishes are available from various suppliers.
Nimonic 115 rods are available in sizes ranging from 1/8" to 4" diameter. Finishes include cold drawn, polished, and rough turned, suitable for high-temperature applications.
Nimonic 115 rods typically come in standard sizes ranging from 1/8" to 6" in diameter, with lengths varying from 3' to 20' depending on the manufacturer and customer specifications.
Nimonic 105 Bars and Rods are widely utilized in industries where high-temperature strength and corrosion resistance are essential. Common applications include turbine blades, exhaust valves, aircraft engine components, and nuclear reactor parts. In the automotive and aerospace sectors, these rods are used in high-performance engines due to their excellent thermal stability. Power generation facilities employ them in gas turbines and combustors, while chemical processing plants utilize them for high-pressure and high-temperature equipment. Their robust mechanical properties and resistance to scaling make Nimonic 105 Bars and Rods a preferred choice for the most demanding engineering environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
