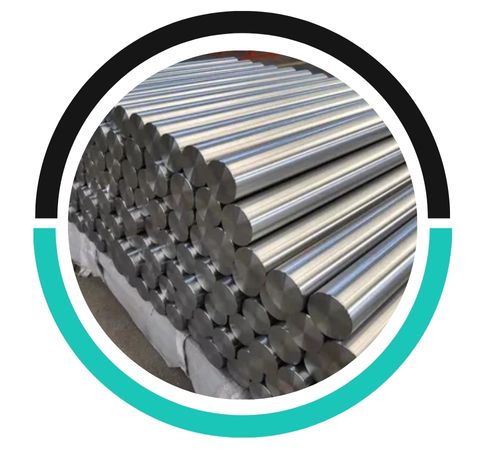

Neil Metals, based in Kolkata, India, has earned a solid reputation as a reliable manufacturer and supplier of Nickel Alloy 201 Bars and Rods. These high-purity nickel products are celebrated for their outstanding corrosion resistance, thermal stability, and electrical conductivity. Perfect for a range of applications, these bars and rods shine in chemical processing, electronics, marine environments, and high-temperature settings where resistance to acids and alkalis is crucial. Neil Metals provides Nickel 201 products in various diameters and finishes, all designed to meet international standards. With a strong commitment to quality assurance, precise dimensions, and prompt service, Neil Metals caters to clients both locally and globally, offering dependable nickel alloy solutions.
Nickel Alloy 201 Bars and Rods consist of over 99% pure nickel, with a maximum carbon content of just 0.02%, setting it apart from Nickel 200. This low carbon level boosts resistance to graphitization at high temperatures, making it suitable for use in environments exceeding 300°C. The alloy boasts impressive mechanical properties, including a tensile strength of about 400–450 MPa, good ductility, and remarkable thermal and electrical conductivity. Additionally, it excels in resisting caustic alkalis, dry gases, and mildly oxidizing conditions.
| Grade | Nickel 201 |
|---|---|
| Specification | UNS N02201, ASME SB160/ASTM B160 |

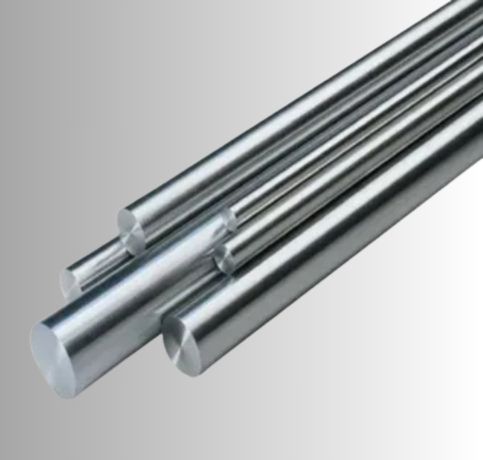

| Round bar size | Dia: 3mm~800mm |
| Hollow Bar | 32 OD x 16 ID to 250 OD x 200 ID |

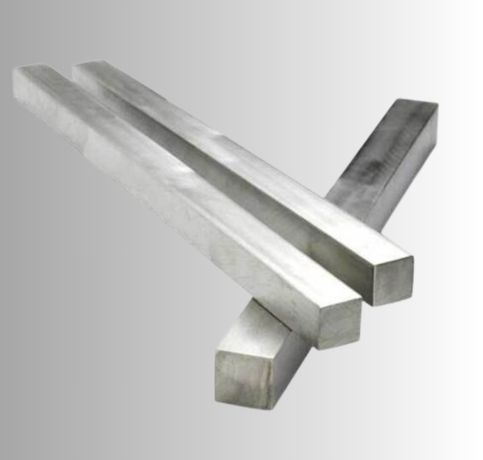

| Square bar size | 4mm to 100mm |

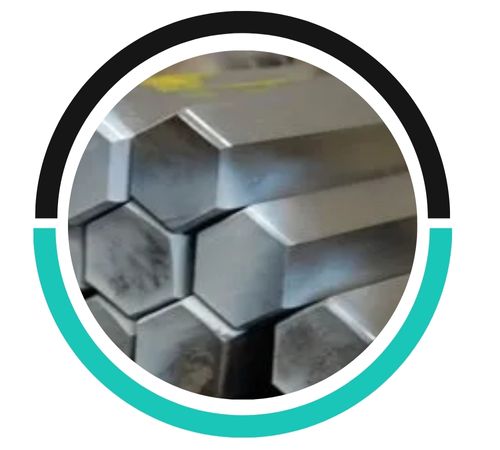

| Hex Bar size | 2mm to 100mm A/F |

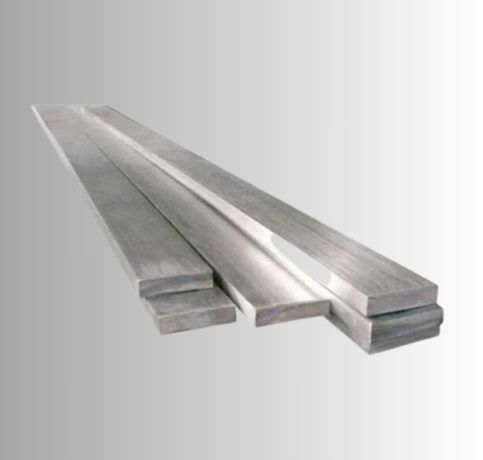

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40 to 150 x 75mm section; 5 to 6mm thickness |

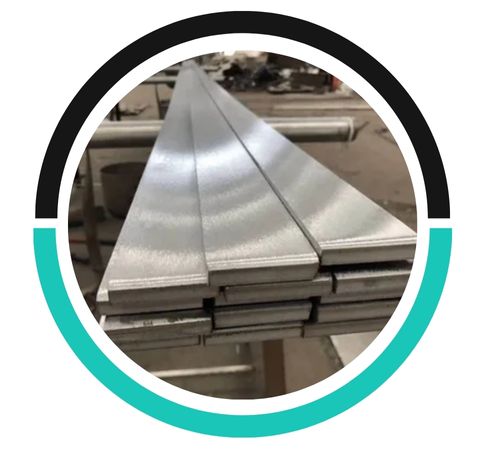

| Flat bar size | Thickness: 2mm to 100mm |
| Width: 10mm to 500mm | |
| Hollow Bar | 32mm Outside Diameter x 16mm Inside Diameter to 250mm Outside Diameter x 200mm Inside Diameter) |
| Angle bar size | 3*20*20~12*100*100 |
| Form | Rings, Hollow, Flat Bar, Rectangle, Triangle, Square,Rod, Half Round Bar, T-Bar, Hex (A/F), Precision Ground Bar, Round, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Tolerance | H8, K12, H10, H11, K10, H9, K11, K9, H12, H13, or custom |
| Technique | Forged Round Bar, Rod, Hot Rolled, Cold Drawn, Cold Rolled, |
| Condition | annealed, Hardened and tempered |
| Surface | Polished, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Bright, Hairline |
|
Grade |
Fe |
Si |
C |
S |
Ni |
Mn |
Mg |
Cu |
Ti |
|---|---|---|---|---|---|---|---|---|---|
|
Nickel 201 |
0.4 max |
0.2 max |
0.02 max |
0.01 max |
99.0 min |
0.35 max |
0.15 max |
0.25 max |
0.1 max |
|
Density |
Elongation |
Tensile Strength |
Melting Point |
Yield Strength (0.2%Offset) |
|---|---|---|---|---|
|
8.9 g/cm3 |
45 % |
Psi – 67000 , MPa – 462 |
1446 °C (2635 °F) |
Psi – 21500 , MPa – 148 |
|
STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
GOST |
BS |
JIS |
EN |
|---|---|---|---|---|---|---|---|
|
Nickel 201 |
N02201 |
2.4068 |
– |
НП-2 |
NA 12 |
NW 2201 |
NLC-Ni 99 |
Type | SIZES (Inches) | ISO Tolerance | SIZES (mm) |
|---|---|---|---|
Peeled and Polished | 1.50″ to 6.00″ | h11-DIN 1013 | 40.00 to 150.00 |
Cold Drawn and Ground | 5/6″ to 2.50″ | h9-h8-h11-h10 | 10.00 to 75.00 |
Cold Drawn and Polish | 1/8″ to 3.00″ | h9-h8-h11-h10 | 3.00 to 75.00 |
Peeled and Ground | 3/4″ to 2.00″ | h10-h9-h11 | 20.00 to 50.00 |
Cut to size on request (tolerance +2/-0 mm).
50.0 | 6.0 |
45.0 | 5.0 |
60.0 | 8.0 |
55.0 | 7.0 |
70.0 | 10.0 |
65.0 | 9.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
100.0 | 25.0 |
160.0 | 35.0 |
130.0 | 30.0 |
200.0 | 40.0 |
Yes, Nickel Alloy 201 rods can be welded using various welding techniques, including TIG and MIG welding.
Nickel Alloy 201 bars exhibit excellent corrosion resistance, high thermal conductivity, good mechanical properties, and outstanding weldability, especially in reducing environments.
Nickel Alloy 201 rods are available in various sizes, typically ranging from 1/8" to 3" in diameter, and come in finishes such as bright, polished, and cold drawn.
These Nickel Alloy 201 Bars and Rods find extensive use in creating pressure vessels, caustic handling systems, chemical processing equipment, food processing units, and electronic components. They’re also utilized in marine hardware, battery parts, and aerospace applications where purity and corrosion resistance are paramount. In the electronics sector, their non-magnetic and highly conductive characteristics make them perfect for sensor and switch components. With their exceptional resistance to corrosive substances and high-temperature performance, Nickel 201 bars and rods are the go-to choice for environments that demand precision and can be chemically aggressive.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Neil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kolkata, India
