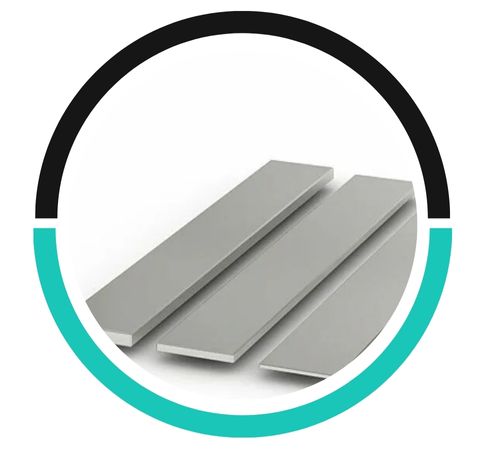

Neil Metals stands out as a trusted and leading manufacturer and supplier of Monel Flat Bars right in Kolkata, India. We take pride in our dedication to top-notch quality and precision engineering, delivering Monel Flat Bars that adhere to the strict standards of industries around the globe. Crafted from premium-grade Monel alloys, these bars boast remarkable corrosion resistance and durability, even in the toughest conditions. Thanks to our cutting-edge production methods and rigorous quality checks, we ensure consistency and high performance. Catering to sectors like marine, chemical processing, oil & gas, and aerospace, Neil Metals provides Monel Flat Bars that are built for reliability, strength, and a long-lasting service life.
Monel Flat Bars are composed of nickel-copper alloys, typically featuring about 63% nickel and 28-34% copper, along with trace amounts of iron, manganese, carbon, and silicon. This unique blend gives them outstanding resistance to seawater, acids, and alkalis. Monel also showcases impressive mechanical properties, including high strength and toughness across a wide temperature range. Common mechanical characteristics include a tensile strength of 550–620 MPa, a yield strength of around 240–310 MPa, and an elongation of about 30%. The alloy maintains its strength even under extreme conditions, making it perfect for harsh and corrosive environments.
Dimensions : ASTM, ASME, API.
Length : 2 meters – 7 meters ( 8 feet to 24 feet)
Size Range : 38×10 mm to 150×25 mm
Finish : Bright, Black, Polish
Form : Flat Bar
Condition : Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished
Other Services : Machining (CNC), Centreless Grinding (CG), Heat Treatment, Anneling, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication
Flat Bars End Finish : Sheared / Bansaw Cut / Hot- Cut With Grinding/ Water Jet Cutting.
| Element | Max | Min |
| Ni | – | 63.0 |
| Fe | 1.0 – 2.5 | – |
| C | 0.3 | – |
| Mn | 2.0 | – |
| Si | 0.5 | – |
| Cu | 28.0 – 34.0 | – |
| Al | 0.50 | – |
| S | 0.02 | – |
| Element | Monel |
| Density | 8.8 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 80,000 , MPa – 550 |
| Yield Strength (0.2%Offset) | Psi – 35,000 , MPa – 240 |
| Elongation | 40 % |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neilmetals.co.in
Yes, Monel Flat Bars offer excellent resistance to seawater corrosion, making them ideal for marine applications, including shipbuilding, offshore platforms, and seawater equipment.
Yes, Monel Flat Bars are highly resistant to many acidic environments, making them suitable for use in chemical processing, reactors, and other industries where exposure to acids is common.
Monel Flat Bars find their place in various applications that require exceptional corrosion resistance and mechanical strength. They are particularly suited for marine engineering components like shafts, valve parts, fasteners, and heat exchangers, thanks to their excellent resistance to seawater and salt spray. In the chemical and petrochemical sectors, Monel Flat Bars are utilized in processing equipment, piping systems, and tanks that come into contact with harsh chemicals. Moreover, they are also used in aerospace, oil & gas, and power generation industries for components that demand structural integrity, reliability, and long-term performance in extreme conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
