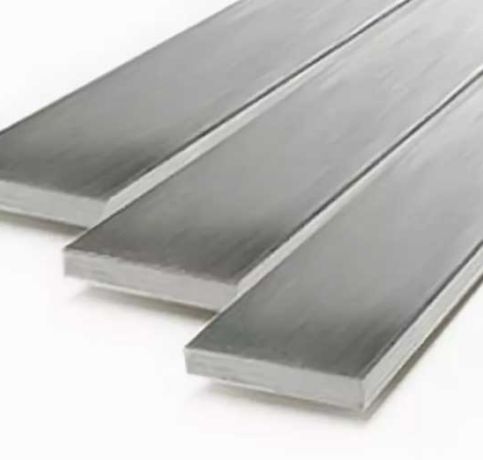

Neil Metals stands out as a leading manufacturer and supplier located in Kolkata, India, with a focus on producing top-notch Inconel Flat Bars. With years of experience under our belt and a dedication to quality, we deliver precision-engineered products that adhere to global standards across various industrial sectors. Our Inconel Flat Bars are celebrated for their remarkable strength, resistance to corrosion, and long-lasting durability, making them perfect for high-performance applications. We provide a diverse selection of sizes and grades tailored to meet our customers’ needs, ensuring dependable and cost-effective solutions. At Neil Metals, our commitment to quality, customer satisfaction, and timely delivery is the cornerstone of our esteemed reputation in the metal industry.
Inconel Flat Bars are mainly made up of nickel (up to 72%), chromium (14-17%), iron, molybdenum, and trace elements like cobalt, manganese, and titanium. This unique alloy composition offers outstanding resistance to oxidation, corrosion, and high-temperature conditions. On the mechanical side, Inconel Flat Bars showcase impressive tensile strength (up to 100 ksi), excellent yield strength, and remarkable resistance to fatigue and creep. They maintain their stability and structural integrity even under extreme stress and thermal conditions, making them ideal for high-performance and critical applications in aerospace, marine, and chemical processing sectors.
| Size range | 12 mm – 46 mm (1/2 inch- 1 ¾ inch) |
| Flat Bar Size Range | Thickness: 2 -100mm / Width: 10 to 500mm |
| Manufacturing Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged |
| Crack Test | Magnetic Particle Inspection (MPI) |
| Length | 2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement |
| Size Tolerances | h10 and h11 |
| Chamfering | Available in 30°, 45° & 60° through fully automatic, both-end chamfering machine |
| Surface Finish | Cold (bright) drawn, hot rolled, centreless ground, peeled, Rough Turned, hot rolled annealed, smooth turned, Bright, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Heat Treatment | Annealed, Solution Annealed |
| Tolerance | H8, H10, H9, H11, H12, K10, H13K9, K12 K11 or as per clients’ requirements |
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Al | Ti | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Bal | 20 | – | 8 | 3.15 | – | – | – | – | – | – | – | – |
| Max | – | 23 | 5 | 10 | 4.15 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 0.40 | 0.40 | 1.0 |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRB |
| Min | Min | Min | Min | Min |
| 414 | 827 | 30 | 40 | 145 |
| Flat Size | KG’s per Metre | Standard Length (m) |
|---|---|---|
| 10 x 3 | 0.24 | 6.0 |
| 13 x 3 | 0.31 | 6.0 |
| 13 x 5 | 0.46 | 6.0 |
| 16 x 3 | 0.38 | 6.0 |
| 16 x 5 | 0.64 | 6.0 |
| 16 x 8 | 1.03 | 6.0 |
| 20 x 3 | 0.48 | 6.0 |
| 20 x 5 | 0.81 | 6.0 |
| 20 x 6 | 0.97 | 6.0 |
| 20 x 10 | 1.61 | 6.0 |
| 25 x 3 | 0.60 | 6.0 |
| 25 x 5 | 1.01 | 6.0 |
| 25 x 6 | 1.21 | 6.0 |
| 25 x 8 | 1.61 | 6.0 |
| 25 x 10 | 2.01 | 6.0 |
| 25 x 12 | 2.41 | 6.0 |
| 32 x 3 | 0.77 | 6.0 |
| 32 x 5 | 1.29 | 6.0 |
| 32 x 6 | 1.55 | 6.0 |
| 32 x 8 | 2.06 | 6.0 |
| 32 x 10 | 2.58 | 6.0 |
| 32 x 12 | 3.09 | 6.0 |
| 40 x 3 | 0.97 | 6.0 |
| 40 x 5 | 1.61 | 6.0 |
| 40 x 6 | 1.93 | 6.0 |
| 40 x 8 | 2.58 | 6.0 |
| 40 x 10 | 3.22 | 6.0 |
| 40 x 12 | 3.86 | 6.0 |
| 40 x 16 | 5.15 | 6.0 |
| 40 x 20 | 6.14 | 6.0 |
| 50 x 3 | 1.21 | 6.0 |
| 50 x 5 | 2.01 | 6.0 |
| 50 x 6 | 2.41 | 6.0 |
| 50 x 8 | 3.22 | 6.0 |
| 50 x 10 | 4.02 | 6.0 |
| 50 x 12 | 4.83 | 6.0 |
| 50 x 16 | 6.44 | 6.0 |
| 50 x 20 | 8.05 | 6.0 |
| 50 x 25 | 10.1 | 6.0 |
| 65 x 3 | 1.57 | 6.0 |
| 65 x 5 | 2.62 | 6.0 |
| 65 x 6 | 3.14 | 6.0 |
| 65 x 8 | 4.18 | 6.0 |
| 65 x 10 | 5.23 | 6.0 |
| 65 x 12 | 6.28 | 6.0 |
| 65 x 16 | 8.37 | 6.0 |
| 65 x 20 | 10.5 | 6.0 |
| 65 x 25 | 13.1 | 6.0 |
| 75 x 5 | 3.02 | 6.0 |
| 75 x 6 | 3.62 | 6.0 |
| 75 x 8 | 4.83 | 6.0 |
| 75 x 10 | 6.04 | 6.0 |
| 75 x 12 | 7.24 | 6.0 |
| 75 x 16 | 9.66 | 6.0 |
| 75 x 20 | 12.1 | 6.0 |
| 75 x 25 | 15.1 | 6.0 |
| 75 x 40 | 24.1 | 6.0 |
| 90 x 5 | 3.62 | 6.0 |
| 90 x 6 | 4.35 | 6.0 |
| 90 x 8 | 5.79 | 6.0 |
| 90 x 10 | 7.24 | 6.0 |
| 90 x 12 | 8.69 | 6.0 |
| 100 x 5 | 4.02 | 6.0 |
| 100 x 6 | 4.83 | 6.0 |
| 100 x 8 | 6.44 | 6.0 |
| 100 x 10 | 8.05 | 6.0 |
| 100 x 12 | 9.66 | 6.0 |
| 100 x 16 | 12.9 | 6.0 |
| 100 x 20 | 16.1 | 6.0 |
| 100 x 25 | 20.1 | 6.0 |
| 100 x 50 | 40.2 | 6.0 |
| 110 x 6 | 5.31 | 6.0 |
| 110 x 8 | 7.08 | 6.0 |
| 110 x 10 | 8.85 | 6.0 |
| 110 x 12 | 10.6 | 6.0 |
| 130 x 5 | 5.23 | 6.0 |
| 130 x 6 | 6.28 | 6.0 |
| 130 x 8 | 8.37 | 6.0 |
| 130 x 10 | 10.5 | 6.0 |
| 130 x 12 | 12.6 | 6.0 |
| 130 x 16 | 16.7 | 6.0 |
| 130 x 20 | 20.9 | 6.0 |
| 130 x 25 | 26.2 | 6.0 |
| 150 x 5 | 6.04 | 6.0 |
| 150 x 6 | 7.24 | 6.0 |
| 150 x 8 | 9.66 | 6.0 |
| 150 x 10 | 12.1 | 6.0 |
| 150 x 12 | 14.5 | 6.0 |
| 150 x 16 | 19.3 | 6.0 |
| 150 x 20 | 24.1 | 6.0 |
| 150 x 25 | 30.1 | 6.0 |
| 150 x 50 | 60.4 | 6.0 |
| 180 x 5 | 7.24 | 6.0 |
| 180 x 6 | 8.69 | 6.0 |
| 180 x 10 | 14.5 | 6.0 |
| 180 x 12 | 17.4 | 6.0 |
| 180 x 16 | 23.2 | 6.0 |
| 180 x 20 | 29.0 | 6.0 |
| 180 x 25 | 36.2 | 6.0 |
| 200 x 6 | 9.66 | 6.0 |
| 200 x 8 | 12.9 | 6.0 |
| 200 x 10 | 16.1 | 6.0 |
| 200 x 12 | 19.3 | 6.0 |
| 200 x 16 | 25.7 | 6.0 |
| 200 x 20 | 32.2 | 6.0 |
| 200 x 25 | 40.3 | 6.0 |
| 250 x 6 | 12.1 | 6.0 |
| 250 x 8 | 16.1 | 6.0 |
| 250 x 10 | 20.1 | 6.0 |
| 250 x 12 | 24.1 | 6.0 |
| 250 x 16 | 32.2 | 6.0 |
| 250 x 20 | 40.2 | 6.0 |
| 250 x 25 | 50.3 | 6.0 |
| 300 x 6 | 14.5 | 6.0 |
| 300 x 8 | 19.3 | 6.0 |
| 300 x 10 | 24.1 | 6.0 |
| 300 x 12 | 29.0 | 6.0 |
| 300 x 16 | 38.6 | 6.0 |
| 300 x 20 | 48.3 | 6.0 |
| 300 x 25 | 60.4 | 6.0 |
Inconel Flat Bars find extensive use in industries that require high strength and the ability to withstand extreme temperatures and corrosive environments. They are commonly utilized in gas turbines, jet engines, nuclear reactors, and exhaust systems, where performance under heat and pressure is essential. In the chemical and petrochemical sectors, these bars are employed in heat exchangers, reactors, and pressure vessels due to their superior corrosion resistance. Marine and offshore engineering also reap the benefits of Inconel’s durability in salty and harsh environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
