Incoloy Round Bars

Neil Metals is a topmost manufacturer and supplier of Incoloy Round Bars located in Kolkata, India. Known for delivering high-quality nickel-iron-chromium alloy products, the company offers high-strength Incoloy round bars that are capable of operating reliably in harsh environments involving high pressure, temperature, and corrosive media. Precision-made and stringently quality-tested, Neil Metals’ Incoloy round bars find extensive application in petrochemicals, power generation, marine, and aerospace industries. Steadfast in emphasis on durability, dimensional precision, and customer satisfaction, Neil Metals provides customized solutions to satisfy standard and intricate engineering needs.

Incoloy Round Rods Exporter in India, Incoloy Round Bars Stockist in Kolkata, Incoloy Round Bar Supplier in India, Incoloy Cold Drawn Round Bars Distributor in Kolkata, Incoloy Round Rods Stockist India, Incoloy Round Bars Price in India, Incoloy Alloy Round Bar & Rods Dimensions India, Incoloy Bright Round Bars Supplier in Kolkata, Incoloy Alloy Round Bar Supplier in India, Incoloy Alloy Cold Drawn Round Rods Exporter in Kolkata

Bright Incoloy Round Bars

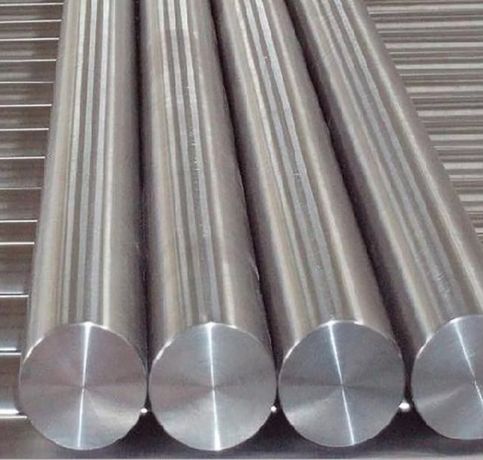

Polished Incoloy Alloy Round Rods

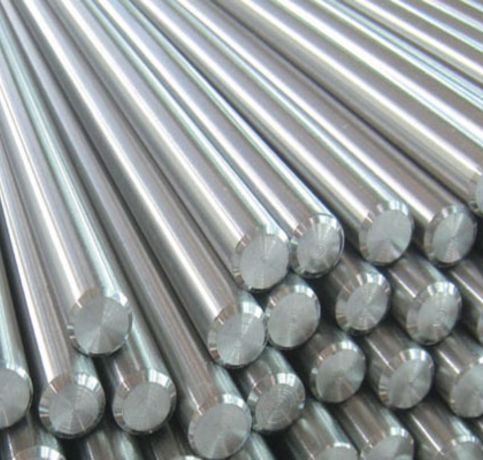

Cold-Finished Incoloy Round Bars

What is Incoloy Round Bars?

Incoloy Round Bars are manufactured with different grades including Incoloy 800, 800H, 800HT, 825, and 925. The nickel-iron-chromium alloys usually comprise 30–46% nickel, 19–23% chromium, and molybdenum, copper, titanium, and aluminum additions based on grade. They demonstrate outstanding resistance to oxidation, carburization, and acid environments even at high temperatures. Mechanical properties consist of tensile strength of 550 to 900 MPa and yield strength of 200 to 600 MPa. Neil Metals offers Incoloy round bars in various diameters, lengths, and heat-treated conditions to suit particular application and industry needs.

Incoloy Alloy Polished Round Bars Size Chart in India, Incoloy Bright Round Rods Exporter in Kolkata, Incoloy Alloy Round Rods Manufacturer in India, Incoloy Round Bars Distributor in India, Incoloy Alloy Round Rods Dealer in Kolkata, Incoloy Alloy Round Bars Size Chart in Kolkata, Incoloy Round Bars Stockist in India, Incoloy Round Rods Price List Kolkata, Incoloy Bar/Rods Weight Chart

Incoloy Round Bars Specifications

Dimensions	BS, DIN, EN, AISI, JIS, ASME, ASTM
Size of Round Bars	Thickness: 2 milimeter-100 milimeter
Surface	Bright, Hot Rolled Pickled, Hairline, Cold Drawn, Sand Blasting Finished, Polished
Processing	cutting to 650 milimeter
Tolerance	H9, K9, H8, H12, K12, H11, H13, K10, K11, H10, or as per need
Finish	centreless ground, Cold (bright) drawn, smooth turned, hot rolled, slit rolled edge, peeled, Rough Turned, hot rolled annealed, Polish, Bright, Centreless Ground, Grinding & Black
Method	Cold Drawn, Hot Rolled, Cold Rolled Rod, Forged Round Bars
Condition	annealed, Hardened & tempered

You Need Our Support, to Have Any Projects?

Test Certificate

Why Neil Metals?

Packaging

Incoloy Round Bars Physical Properties

Density	g/cm3	7.94
Density	lb/in.3	0.287
Melting Range	°F	2475 – 2525
Melting Range	°C	1357 – 1385

Incoloy Round Bars Mechanical Properties

Condition & Size	Tensile Strength	Yield Strength (0.2% Offset)	Elongation	Reduction of Area	Hardness
Condition & Size	MPa, min	MPa, min	%, min	%, min	Rockwell, max
Hot worked, as-hot-worked	550	240	25	…	…
Cold-worked and hot-worked, annealed	515	205	30	…	…

Incoloy Bars & Rod Size Chart

US Bar		Metric		Japanese		Canadian/ASTM
Diam. (Inch)	Bar Size	Diam. (mm)	Bar Size	Diameter (mm)	Bar Size	Diameter (mm2)	Bar Size
0.250	#2	5	5	6	6	100	10M
0.375	#3	5.5	5.5	10	10	200	15M
0.500	#4	6	6	13	13	300	20M
0.625	#5	7	7	16	16	500	25M
0.750	#6	8	8	19	19	700	30M
0.875	#7	9	9	22	22	1000	35M
1.000	#8	10	10	25	25	1500	45M
1.125	#9	11	11	29	29	2500	55M
1.250	#10	12	12	32	32
1.375	#11	14	14	35	35
1.500	#12	16	16	38	38
1.625	#13	18	18	41	41
1.750	#14	20	20	44	44
1.875	#15	22	22	48	48
2.000	#16	25	25	51	51
2.250	#18	28	28	57	57
		32	32
		36	36
		40	40
		44	44
		50	50

Incoloy Round Bars Weight Chart

Size	kilogram / Meter	kilogram / Foot	Size	kilogram / Meter	kilogram / Foot	Size	kilogram / Meter	kilogram / Foot
1/8″	0.062	0.019	22mm	2.979	0.908	3-1/4″	41.996	12.800
3mm	0.055	0.017	20mm	2.470	0.753	3″	35.762	10.900
4mm	0.098	0.030	24mm	3.543	1.080	3-3/4″	55.780	17.001
5/32″	0.095	0.029	7/8″	3.038	0.926	3-1/2″	48.772	14.850
5mm	0.154	0.047	1″	3.970	1.210	4-1/4″	72.249	21.908
3/16″	0.141	0.043	25mm	3.871	1.180	4″	63.340	19.306
6mm	0.223	0.068	27mm	4.490	1.368	4-3/4″	90.249	27.366
7/32″	0.190	0.058	26mm	4.170	1.271	4-1/2″	80.340	24.4487
7mm	0.298	0.091	30mm	5.548	1.691	5-1/2″	121.000	36.690
1/4″	0.249	0.076	1-1/8″	5.033	1.534	5″	99.940	30.461
8mm	0.398	0.120	32mm	6.314	1.894	6-1/2″	167.630	51.093
5/16″	0.387	0.118	1-1/4″	6.349	1.924	6″	143.900	43.860
3/8″	0.557	0.170	35mm	7.553	2.390	7-1/2″	225.000	68.226
9mm	0.498	0.152	1-3/8″	7.550	2.303	7″	196.000	59.432
11mm	0.748	0.228	38mm	8.903	2.792	10″	397.140	121.048
10mm	0.620	0.189	36mm	7.999	2.438	8″	254.55	77.586
12mm	0.889	0.271	40mm	9.872	3.009
7/16″	0.761	0.232	1-1/2″	8.951	2.715
13mm	1.043	0.318	1-3/4″	12.179	3.712
1/2″	0.994	0.303	1-5/8″	10.449	3.200
9/16″	1.256	0.383	1-7/8″	13.977	4.260
14mm	1.207	0.368	45mm	12.555	3.807
5/8″	1.551	0.473	50mm	15.414	4.698
15mm	1.391	0.424	48mm	14.205	4.330
17mm	1.791	0.543	2-1/8″	17.963	5.475
16mm	1.578	0.481	2″	15.906	4.848
18mm	2.001	0.610	60mm	22.205	6.768
11/16″	1.880	0.573	2-1/4″	20.128	6.135
3/4″	2.237	0.682	2-3/8″	22.435	6.838
			2-1/2″	24.856	7.576
			2-5/8″	27.409	8.354
			2-3/4″	30.083	9.169	–	–	–

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy Round Bars Types

Incoloy Round Rods Dealer in Kolkata, Incoloy Round Bars Manufacturer in Kolkata, Incoloy Alloy Cold Drawn Round Bar Dimensions Kolkata, Incoloy Round Bars Size Chart, Incoloy Alloy Rods Price in India, Stockist of Incoloy Round Bars in India, Incoloy Round Rods Supplier in India, Alloy Incoloy Round Bar Price List in Kolkata, Incoloy Alloy Round Bar and Rods Weight Chart, Incoloy Alloy Round Bars & Rods Exporter in Kolkata

Incoloy Round Bars Uses

Incoloy Round Bars are extensively utilized in corrosive and high-temperature applications because of their superior mechanical strength and chemical corrosion resistance. Applications are heat exchangers, pressure vessels, superheaters, chemical processing equipment, furnace parts, and nuclear reprocessing of fuel. Incoloy 825 specifically finds applications in handling sulfuric and phosphoric acid, and Incoloy 800 series is favored in thermal and structural uses where there is extended exposure to elevated temperatures. Their resistance against chloride-induced stress corrosion cracking also renders them suitable for marine and offshore oil and gas exposures. Incoloy round bars guarantee stability and durability in demanding applications.
