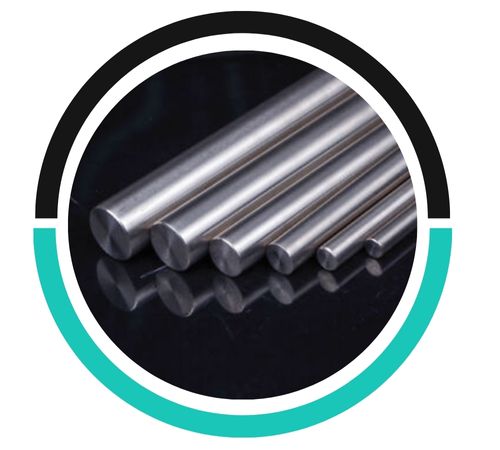

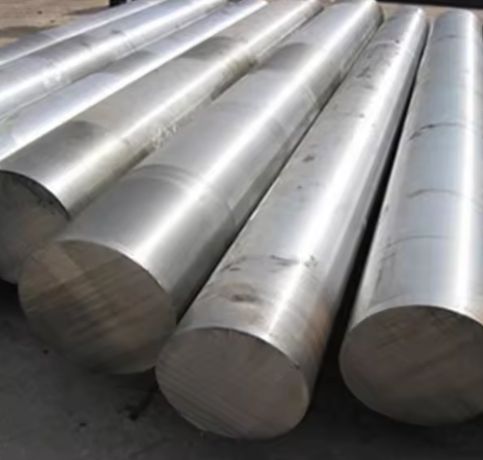

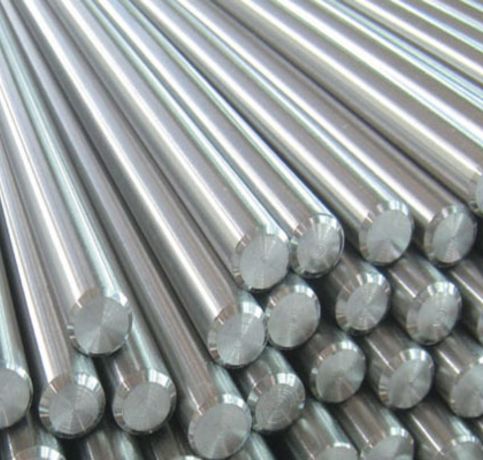

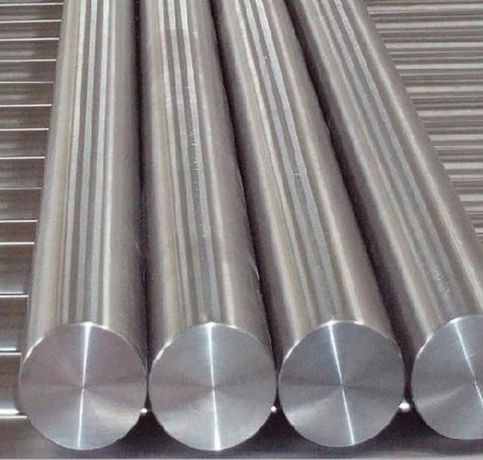

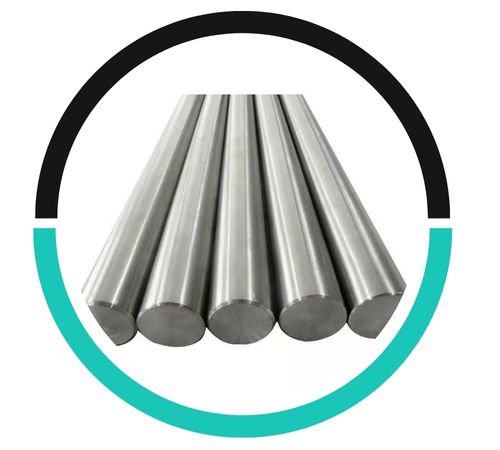

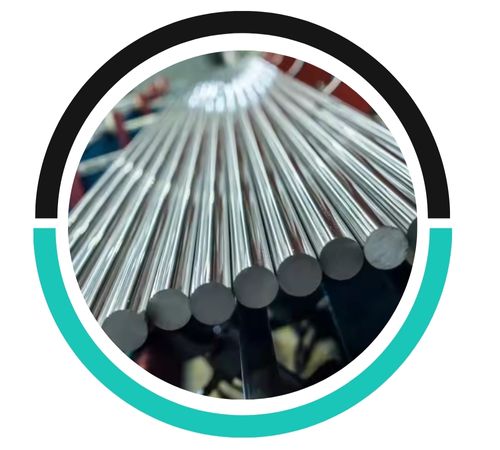

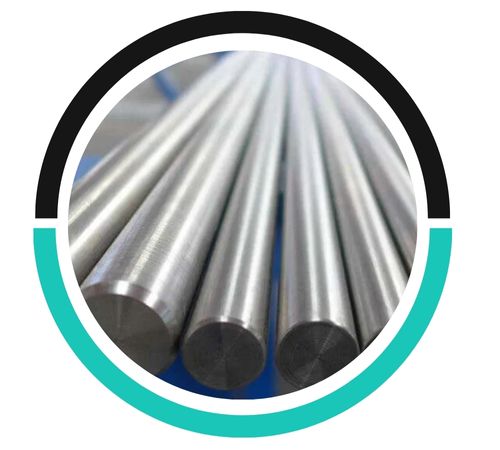

Neil Metals, based in Kolkata, India, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Incoloy Bright Bars. These bars are specifically designed to excel in tough conditions, whether it’s extreme heat, harsh chemicals, or mechanical stress. With a keen emphasis on quality, precision, and adherence to global standards, Neil Metals delivers Incoloy bright bars that boast an impressive surface finish, precise dimensions, and consistent mechanical properties. They find their place in various industries, including chemical processing, marine, heat treatment, and nuclear applications. Neil Metals is dedicated to serving both local and international clients, ensuring timely deliveries, expert technical support, and customized alloy solutions that meet the rigorous demands of industrial applications.
The Incoloy Bright Bars are crafted from nickel-iron-chromium-based alloys like Incoloy 800 and 825, typically containing Nickel (30–45%), Chromium (19–23%), and Iron (the balance), along with elements like Molybdenum, Copper, and Titanium depending on the specific grade. These alloys are known for their outstanding resistance to oxidation, carburization, and stress corrosion cracking caused by chlorides. With high tensile strength (usually between 500–800 MPa), excellent thermal stability, and good weldability, Incoloy bright bars are perfect for precision components that operate in high-temperature and corrosive environments.
| Dimensions | BS, DIN, EN, AISI, JIS, ASME, ASTM |
|---|---|
| Size of Round Bars | Thickness: 2 milimeter-100 milimeter |
| Surface | Bright, Hot Rolled Pickled, Hairline, Cold Drawn, Sand Blasting Finished, Polished |
| Processing | cutting to 650 milimeter |
| Tolerance | H9, K9, H8, H12, K12, H11, H13, K10, K11, H10, or as per need |
| Finish | centreless ground, Cold (bright) drawn, smooth turned, hot rolled, slit rolled edge, peeled, Rough Turned, hot rolled annealed, Polish, Bright, Centreless Ground, Grinding & Black |
| Method | Cold Drawn, Hot Rolled, Cold Rolled Rod, Forged Round Bars |
| Condition | annealed, Hardened & tempered |
| Density | g/cm3 | 7.94 | |
|---|---|---|---|
| lb/in.3 | 0.287 | ||
| Melting Range | °F | 2475 – 2525 | |
| °C | 1357 – 1385 | ||
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| Hot worked, as-hot-worked | 550 | 240 | 25 | … | … |
| Cold-worked and hot-worked, annealed | 515 | 205 | 30 | … | … |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| Diam. (Inch) | Bar Size | Diam. (mm) | Bar Size | Diameter (mm) | Bar Size | Diameter (mm2) | Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot |
|---|---|---|---|---|---|---|---|---|
| 1/8″ | 0.062 | 0.019 | 22mm | 2.979 | 0.908 | 3-1/4″ | 41.996 | 12.800 |
| 3mm | 0.055 | 0.017 | 20mm | 2.470 | 0.753 | 3″ | 35.762 | 10.900 |
| 4mm | 0.098 | 0.030 | 24mm | 3.543 | 1.080 | 3-3/4″ | 55.780 | 17.001 |
| 5/32″ | 0.095 | 0.029 | 7/8″ | 3.038 | 0.926 | 3-1/2″ | 48.772 | 14.850 |
| 5mm | 0.154 | 0.047 | 1″ | 3.970 | 1.210 | 4-1/4″ | 72.249 | 21.908 |
| 3/16″ | 0.141 | 0.043 | 25mm | 3.871 | 1.180 | 4″ | 63.340 | 19.306 |
| 6mm | 0.223 | 0.068 | 27mm | 4.490 | 1.368 | 4-3/4″ | 90.249 | 27.366 |
| 7/32″ | 0.190 | 0.058 | 26mm | 4.170 | 1.271 | 4-1/2″ | 80.340 | 24.4487 |
| 7mm | 0.298 | 0.091 | 30mm | 5.548 | 1.691 | 5-1/2″ | 121.000 | 36.690 |
| 1/4″ | 0.249 | 0.076 | 1-1/8″ | 5.033 | 1.534 | 5″ | 99.940 | 30.461 |
| 8mm | 0.398 | 0.120 | 32mm | 6.314 | 1.894 | 6-1/2″ | 167.630 | 51.093 |
| 5/16″ | 0.387 | 0.118 | 1-1/4″ | 6.349 | 1.924 | 6″ | 143.900 | 43.860 |
| 3/8″ | 0.557 | 0.170 | 35mm | 7.553 | 2.390 | 7-1/2″ | 225.000 | 68.226 |
| 9mm | 0.498 | 0.152 | 1-3/8″ | 7.550 | 2.303 | 7″ | 196.000 | 59.432 |
| 11mm | 0.748 | 0.228 | 38mm | 8.903 | 2.792 | 10″ | 397.140 | 121.048 |
| 10mm | 0.620 | 0.189 | 36mm | 7.999 | 2.438 | 8″ | 254.55 | 77.586 |
| 12mm | 0.889 | 0.271 | 40mm | 9.872 | 3.009 | |||
| 7/16″ | 0.761 | 0.232 | 1-1/2″ | 8.951 | 2.715 | |||
| 13mm | 1.043 | 0.318 | 1-3/4″ | 12.179 | 3.712 | |||
| 1/2″ | 0.994 | 0.303 | 1-5/8″ | 10.449 | 3.200 | |||
| 9/16″ | 1.256 | 0.383 | 1-7/8″ | 13.977 | 4.260 | |||
| 14mm | 1.207 | 0.368 | 45mm | 12.555 | 3.807 | |||
| 5/8″ | 1.551 | 0.473 | 50mm | 15.414 | 4.698 | |||
| 15mm | 1.391 | 0.424 | 48mm | 14.205 | 4.330 | |||
| 17mm | 1.791 | 0.543 | 2-1/8″ | 17.963 | 5.475 | |||
| 16mm | 1.578 | 0.481 | 2″ | 15.906 | 4.848 | |||
| 18mm | 2.001 | 0.610 | 60mm | 22.205 | 6.768 | |||
| 11/16″ | 1.880 | 0.573 | 2-1/4″ | 20.128 | 6.135 | |||
| 3/4″ | 2.237 | 0.682 | 2-3/8″ | 22.435 | 6.838 | |||
| 2-1/2″ | 24.856 | 7.576 | ||||||
| 2-5/8″ | 27.409 | 8.354 | ||||||
| 2-3/4″ | 30.083 | 9.169 | – | – | – |
Incoloy bright bars offer excellent corrosion resistance, high-temperature strength, durability, oxidation resistance, and versatility in extreme environments.
Incoloy bright bars generally have excellent corrosion resistance due to their alloy composition, reducing the need for additional protective coatings. However, in highly aggressive environments, extra coatings or surface treatments may be applied for enhanced protection.
You’ll find Incoloy Bright Bars being utilized across a range of industries, including petrochemical, power generation, marine, chemical processing, and oil & gas. They are commonly used in applications such as heat exchangers, condenser tubes, fasteners, pumps, shafts, and flanges that are exposed to acidic or chloride-rich conditions. The ability of Incoloy to maintain strength at elevated temperatures also makes these bright bars ideal for furnace components and superheater tubes. Plus, the smooth, shiny surface finish not only enhances their aesthetic appeal for applications requiring tight tolerances and high cleanliness but also helps reduce friction in rotating or moving systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
