Incoloy 925 Bars/Rods

Neil Metals, an Indian Kolkata-based company, is a trusted manufacturer and supplier of **Incoloy 925 Bars/Rods**, providing high-performance nickel-based alloy products for harsh conditions with high pressure, high heat, and corrosive conditions. Recognized for excellence in quality, precision, and customer satisfaction, Neil Metals supplies Incoloy 925 bars that are up to global industrial standards. These bars exhibit great mechanical strength coupled with improved corrosion resistance and stress cracking, making them suitable for mission-critical applications in the oil & gas, marine, chemical, and aerospace industries. With state-of-the-art manufacturing capabilities, Neil Metals provides prompt delivery and consistent performance across industries.

Incoloy 925 Bars Supplier in India, Incoloy UNS N09925 Hollow Rods Price List in Kolkata, Incoloy Alloy UNS N09925 Rectangular Bars Supplier in India, Incoloy 925 Hexagonal Bars Exporter in Kolkata, Incoloy 925 Bars Stockist in India, Incoloy 925 T-Bars Exporter in India, Incoloy 925 Flat Rods Exporter in Kolkata, ASME B511 Incoloy Alloy 925 Flat Bars India, Incoloy UNS N09925 Hollow Round Bar Manufacturer in India, Incoloy Alloy 925 Round Bars Distributor in India, Incoloy 925 Polished Rods Dealer in Kolkata

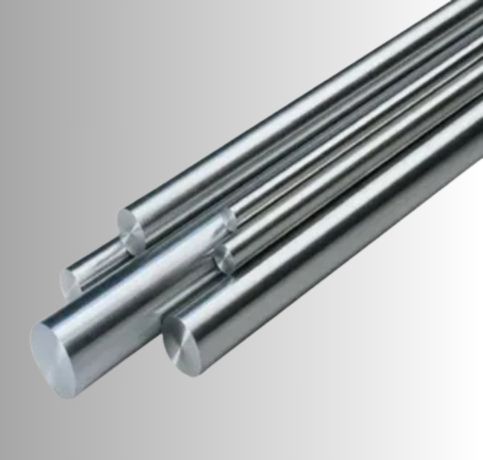

Incoloy 925 Round Bars

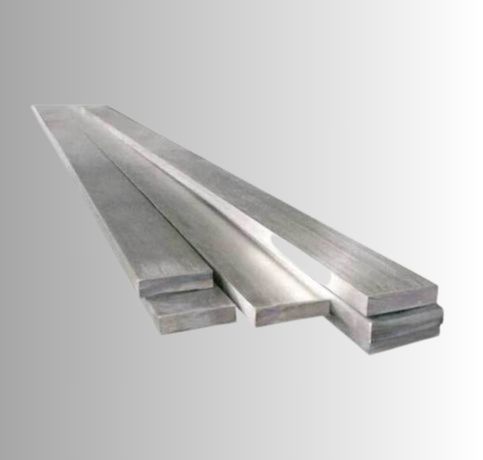

Incoloy 925 Rectangular Bars

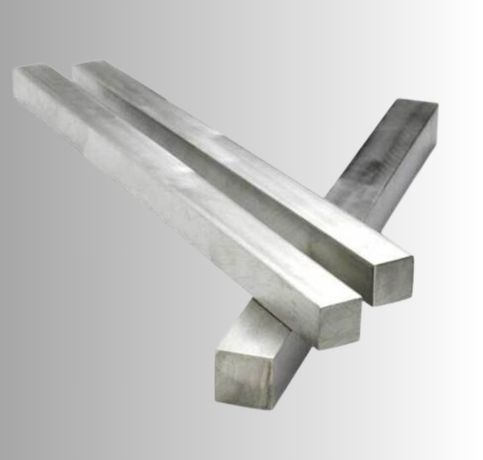

Incoloy 925 Square Rods

What is Incoloy 925 Bars and Rods?

**Incoloy 925 Bars/Rods** consist mainly of **Nickel (38–46%)**, **Iron (balance)**, **Chromium (19.5–23.5%)**, **Molybdenum (2.5–3.5%)**, **Copper (1.5–3%)**, and **Titanium (1.9–2.4%)**, with minor contents of Aluminum, Carbon, and Niobium. These bars have superior mechanical properties, with **tensile strength over 760 MPa**, **yield strength in excess of 500 MPa**, and **good fatigue and creep resistance**. Incoloy 925 is age-hardenable, providing improved strength with good ductility and weldability. It offers excellent resistance against sulfide stress cracking, pitting, and crevice corrosion in acidic and seawater environments.

ASTM B511 Incoloy Alloy 925 Rectangular Rods Exporter in India, 925 Incoloy Round Bars Stockist in Kolkata, Incoloy 925 Bars Weight Chart, Incoloy 925 Hex Bars Supplier in India, Incoloy UNS N09925 Cold Drawn Round Bars Distributor in Kolkata, ASTM B511 Incoloy Alloy 925 Rods Stockist India Incoloy 925 Rods Price in India,Incoloy 925 Round Bars, Incoloy 925 Rectangular Bars Supplier in Kolkata

Incoloy 925 Bars and Rods Specification

Standards	ASTM B805, ASME SB 805
Specifications	DIN, EN, ASTM, JIS, ASME, BS, AISI
925 Incoloy Round Bars size	Diameter: 3-~800mm
Incoloy 925 Flat Bars size	Thickness: 2 -100mm
Incoloy 925 Flat Bars size	Width: 10 to 500mm
Incoloy 925 Angle Bars size	3mm20mm20mm~12mm100mm100mm
Incoloy 925 Channel Bars	80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Alloy 925 Rectangular Bars Section	3.0 to 12.0mm thickness
Incoloy 925 Billet Size	1/2 to 495mm Diameter
Incoloy 925 Rectangle Bar Size	33 x 30mm to 295 x 1066mm

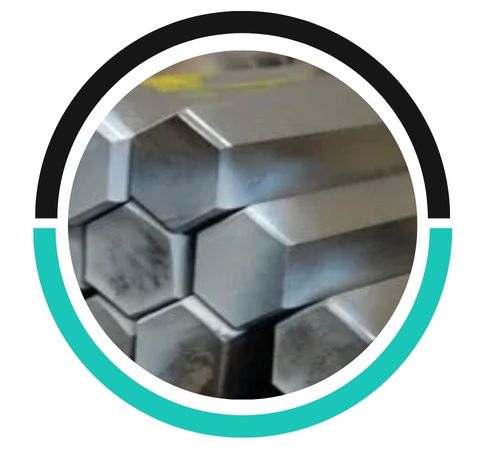

Incoloy 925 Hex Bar size	2-100mm A/F
Incoloy 925 Hollow Bars	32mm OD x 16mm ID to 250mm OD x 200mm ID)
Diameter	20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm
Length	1m-12m or as required
Tolerance	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish	hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned.
Surface	Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished
Condition	Hardened & tempered, annealed
Technique	Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod
Processing	Bars cutting to 650mm
Form	Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc.

Chemical Compositions of Incoloy 925 Rods

Grade	Ni	Cr	Fe	Si	Mo	Cu	Mn	C	S	Al
Incoloy 925	42 – 46	19.55 – 22.5	22 min	0.5 max	2.5 – 3.5	1.5 – 3.0	1.0 max	0.03 max	0.03 max	0.1 – 0.5

Incoloy 925 Bars Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.14 g/cm3	1343°C	650	300	30 %

You Need Our Support, to Have Any Projects?

Test Certificate

Why Neil Metals?

Packaging

Incoloy 925 Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Incoloy 925	–	N09925

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy 925 Bars and Rods Types

Incoloy 925 Rods Dealer in Kolkata, Incoloy 925 Round Bars Manufacturer in Kolkata, Incoloy UNS N09925 Square Bars Supplier in Kolkata, Incoloy Alloy 925 Flat Bars Price List in Kolkata, Incoloy 925 Rectangular Bars Supplier in India, Incoloy 925 Bars Price List in Kolkata, Incoloy Alloy 925 Round Bars Exporter Stockist in India, Stockist of Incoloy 925 Round Bars in India, Incoloy 925 Bars Size Chart

Incoloy 925 Bars and Rods Uses

**Incoloy 925 Bars/Rods** are used extensively in **downhole and surface gas well equipment, valves, hangers, tubulars, fasteners, and high-strength piping systems**. They are especially appropriate for **sour gas (H₂S) environments, marine engineering**, and **chemical processing** applications that demand excellent corrosion resistance and mechanical strength. Incoloy 925 is also applied in **pump shafts, oil tool parts, and heat exchangers**, particularly in applications subject to chloride ion and aggressive chemical exposure. Its superior performance in high-pressure, high-stress applications makes it an industry favorite for the **oil & gas**, **aerospace**, and **offshore engineering industries**.
