Incoloy 825 Bars/Rods

Neil Metals, a Kolkata-based company, is one of the top suppliers and manufacturers of **Incoloy 825 Bars/Rods** that provide high-quality nickel-iron-chromium alloy products with top-class corrosion resistance for extreme chemical conditions. With a reputation for quality, accuracy, and dependability, Neil Metals provides Incoloy 825 bars that are perfect for oxidizing and reducing conditions. These rods and bars are produced with sophisticated methods and meet global standards, providing high performance and durability over extended periods. With a customer-centric strategy and extensive industry presence, Neil Metals caters to industries like chemical processing, marine, pollution control, and oil & gas with reliable alloy solutions.

Incoloy 825 Bars Supplier in India, Incoloy UNS N08810 Hollow Rods Price List in Kolkata, Incoloy Alloy 2.4858 Rectangular Bars Supplier in India, Incoloy DIN 2.4858 Hexagonal Bars Exporter in Kolkata, Incoloy 825 T-Bars Exporter in India, Incoloy 825 Flat Rods Exporter in Kolkata, ASME SB408 Incoloy Alloy 825 Flat Bars India, Incoloy UNS N08825 Hollow Round Bar Manufacturer in India, Incoloy Alloy 825 Round Bars Distributor in India, Incoloy 825 Polished Rods Dealer in Kolkata

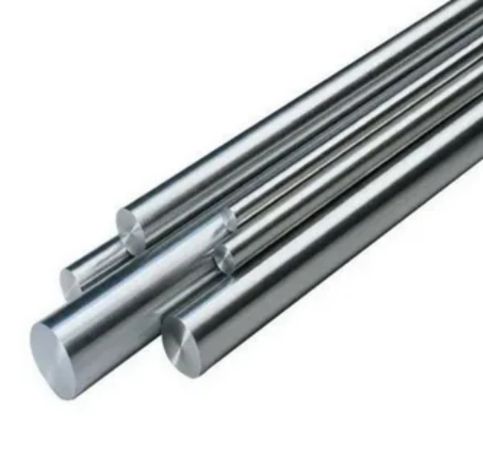

Incoloy 825 Round Bars

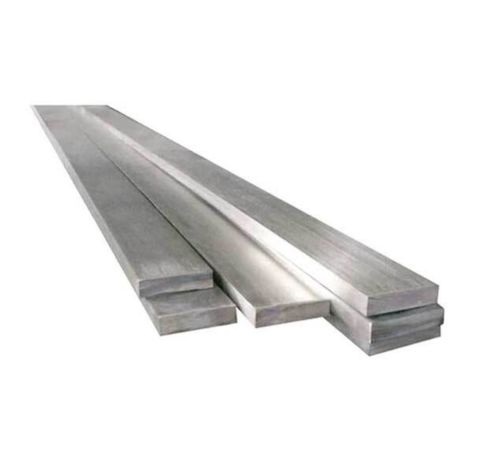

Incoloy 825 Rectangular Bars

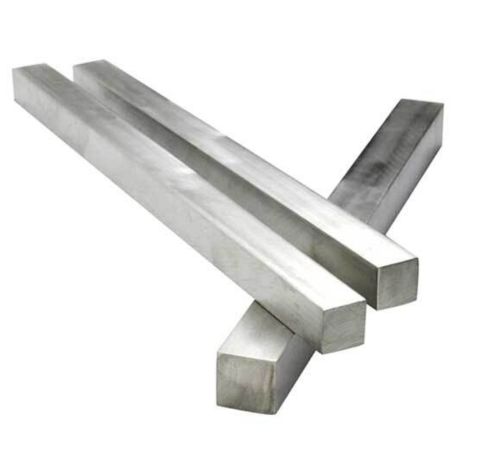

Incoloy 825 Square Rods

**Incoloy 825 Bars/Rods** contain **38–46% Nickel**, **19.5–23.5% Chromium**, **22% Iron (min)**, **2.5–3.5% Molybdenum**, **1.5–3% Copper**, and **0.6–1.2% Titanium**, with traces of manganese and carbon. These contents ensure superior resistance to **sulfuric and phosphoric acids**, **chloride-induced stress corrosion cracking**, pitting, and crevice corrosion. Incoloy 825 has **tensile strength of around 585 MPa**, **yield strength in excess of 220 MPa**, and **excellent elongation and ductility**, which enable it to be used in harsh, corrosive environments over a wide temperature range.

Incoloy 825 Rods Dealer in Kolkata, Incoloy 825 Round Bars Manufacturer in Kolkata, Incoloy DIN 2.4858 Square Bars Supplier in Kolkata, Incoloy Alloy 825 Flat Bars Price List in Kolkata, Incoloy 825 Rectangular Bars Supplier in India, Incoloy 825 Bars Price List in Kolkata, Incoloy Alloy 825 Round Bars Exporter Stockist in India, Stockist of Incoloy 825 Round Bars in India

Incoloy 825 Bars and Rods Specification

Incoloy 825 Material Specification: ASTM B425/ ASME SB425 Inco 825

Grade: Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), ASTM B425 Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800, 1.4876)

Form: Round, Square, Hex (A/F), Bush, Rectangle, Flat, Billet, Ingot, Forging, PSQ Bar, Wire Rod, Wire (Coil Form), Wire-mesh etc.

Size Range: 15NB to 150NB In manufacturing process: Cold drawn/ Extruded

Length: 100 mm To 3000 mm Long & Above

Diameter (Size) : Metric M6 to M48, Inches – 1/4’’ to 2’’

Tolerance : H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per clients’ requirements

Finish : Cold Drawn, Shot Blast & Drawn, 240 Grit Belt Polished, Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish, High Polished

Condition : Cold Drawnd Polished Cold Drawn Centreless Ground & Polished, Threading

Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline

Chemical Compositions of Incoloy 825 Rods

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Incoloy 825 Bars Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Incoloy 825 Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

You Need Our Support, to Have Any Projects?

Test Certificate

Why Neil Metals?

Packaging

Weight Chart of Incoloy 825 Bars and Rods

Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy 825 Bars and Rods Types

ASTM B166 Incoloy Alloy 825 Rectangular Rods Exporter in India, Incoloy 2.4858 Round Bars Stockist in Kolkata, Incoloy 825 Hex Bars Supplier in India, Incoloy UNS N08825 Cold Drawn Round Bars Distributor in Kolkata, ASTM B166 Incoloy Alloy 825 Rods Stockist India Incoloy 825 Rods Price in India, Incoloy 825 Round Bars, Incoloy DIN 2.4858 Rectangular Bars Supplier in Kolkata

Incoloy 825 Bars and Rods Uses

**Incoloy 825 Bars/Rods** find widespread application in **chemical processing plants, marine exhaust systems, pickling equipment, heat exchangers, pollution control equipment, and offshore oil and gas installations**. Its acid and chloride resistance characteristics render the alloy extremely well placed for **acid production, nuclear fuel reprocessing, waste treatment systems**, and **seawater handling equipment**. Its stability in oxidizing as well as reducing conditions guarantees long term service life in parts that are subjected to aggressive chemical media. Incoloy 825’s versatility, strength, and corrosion resistance establish it as a reliable material for critical operations within aggressive industrial environments.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
