Incoloy 800/800H/800HT Bars/Rods

Neil Metals, based in Kolkata, India, is a leading producer and supplier of **Incoloy 800 / 800H / 800HT Bars/Rods** with high-performance alloy products designed for high-temperature and corrosive conditions. These bars are characterized by high strength, oxidation resistance, and structural stability at high temperatures. Neil Metals employs advanced manufacturing processes and rigorous quality control measures to ensure that every bar or rod conforms to international standards. Reliable and long-lasting alloy solutions for demanding applications requiring thermal and mechanical performance are offered by Neil Metals, trusted clients in petrochemical, power generation, and heat treatment sectors.

Incoloy 800 Rods Dealer in Kolkata, Incoloy 800 Round Bars Manufacturer in Kolkata, Incoloy DIN 1.4958 Square Bars Supplier in Kolkata, Incoloy Alloy 800 Flat Bars Price List in Kolkata, Incoloy 800HT Rectangular Bars Supplier in India, Incoloy 800 Bars Price List in Kolkata, Incoloy Alloy 800H Round Bars Exporter Stockist in India, Stockist of Incoloy 800HT Round Bars in India

Incoloy 800 Round Bars

Incoloy 800H Rectangular Bars

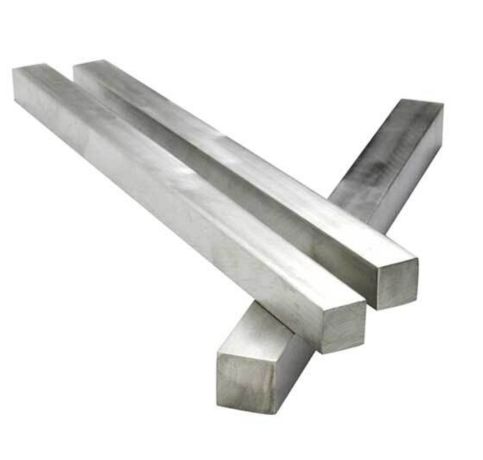

Incoloy 800H Square Rods

**Incoloy 800 / 800H / 800HT Bars/Rods** are nickel-iron-chromium alloys with **30–35% Nickel**, **19–23% Chromium**, and **balance Iron**, with 800H and 800HT forms featuring controlled carbon (0.05–0.10%) and aluminum + titanium enhancements (up to 1.2%) for enhanced creep and rupture resistance. These alloys provide **tensile strength of 450–600 MPa**, **yield strength of 200–300 MPa**, and superior **oxidation and carburization resistance** up to 1100°C temperature. Their mechanical soundness and metallurgical stability on long-term thermal exposure allow them to be used in high-temperature structural applications.

Incoloy 800H Bars Supplier in India, Incoloy UNS N08810 Hollow Rods Price List in Kolkata, Incoloy Alloy 1.4859 Rectangular Bars Supplier in India, Incoloy DIN 1.4876 Hexagonal Bars Exporter in Kolkata, Incoloy 800 T-Bars Exporter in India, Incoloy 800HT Flat Rods Exporter in Kolkata, ASME SB408 Incoloy Alloy 800HT Flat Bars India, Incoloy UNS N08811 Hollow Round Bar Manufacturer in India, Incoloy Alloy 800HT Round Bars Distributor in India, Incoloy 800H Polished Rods Dealer in Kolkata

Incoloy 800/800H/800HT Bars and Rods Specification

Incoloy 800/800H/800HT Bars Specifications

Specification : ASTM B166, A479 / ASME SB166, SA479

Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI

Incoloy Round Bars: Outside Diameter in the range of 4mm to 500mm

Incoloy Bright Bars : Outside Diameter in the range of 4mm to 200mm

Incoloy Hex Bars : 4mm – 101.6mm

Incoloy Square Bars : 3mm – 100mm

Incoloy Flat Bars : 1/2″ to 10″ in thickness range of 1.6mm to 150mm, Custom Size Stainless Steel Flats available

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Length : 1 to 6 Meters, Custom Cut Lengths

Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.

Chemical Compositions of Incoloy 800/800H/800HT Rods

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Incoloy 800/800H/800HT Bars Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Alloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Incoloy 800/800H/800HT Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN	OR
Incoloy 800	1.4876	N08800	ЭИ670	Z8NC32-21	NCF 800	NA 15	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	ЭИ670	Z8NC33-21	NCF 800H	NA 15(H)	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	ЭИ670	–	NCF 800HT	NA 15(HT)	X8NiCrAlTi32-21	XH32T

You Need Our Support, to Have Any Projects?

Test Certificate

Why Neil Metals?

Packaging

Weight Chart of Incoloy 800/800H/800HT Bars and Rods

Incoloy 800 Round bar
Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy 800/800H/800HT Bars and Rods Types

ASTM B166 Incoloy Alloy 800 Rectangular Rods Exporter in India, Incoloy 1.4859 Round Bars Stockist in Kolkata, Incoloy 800 Hex Bars Supplier in India, Incoloy UNS N08800 Cold Drawn Round Bars Distributor in Kolkata, ASTM B166 Incoloy Alloy 800 Rods Stockist India Incoloy 800HT Rods Price in India, Incoloy 800H Round Bars, Incoloy DIN 1.4876 Rectangular Bars Supplier in Kolkata

Incoloy 800/800H/800HT Bars and Rods Uses

**Incoloy 800 / 800H / 800HT Bars/Rods** find extensive applications in **heat exchangers, reformer outlet manifolds, furnace components, superheaters, petrochemical piping systems, and nuclear steam generators**. Their resistance to high-temperature oxidation and stress corrosion cracking bestows upon them the suitability for **power plants, thermal processing equipment, and chemical plants**. 800H and 800HT are particularly suitable for **high-temperature pressure vessel parts and heat-treating equipment** because of their improved creep strength. Their resistance to scaling and maintenance of strength in severe thermal and chemical environments makes them a suitable material for long-term high-temperature service conditions.
