Neil Metals, a prominent Kolkata, India-based manufacturer and provider of **Incoloy 330 Bars/Rods**, supplies high-quality alloy products designed to resist high-temperature and corrosive industrial settings. These bars possess excellent oxidation, carburization, and thermal shock resistance and are suitable for extreme heat and chemical processing uses. Produced with the latest technology and following global standards of quality, Neil Metals guarantees accuracy, dependability, and resistance in all Incoloy 330 products. Reputed across industries like metallurgy, petrochemicals, heat treatment, and power generation, Neil Metals guarantees reliable alloy solutions for mission-critical operations.
**Incoloy 330 Bars/Rods** are heat-resistant nickel-iron-chromium alloys containing about **34–37% Nickel**, **17–20% Chromium**, **balance Iron**, with minor additions of **Silicon (~1%)**, and **Carbon (<0.08%)**. It offers superb **oxidation and scaling resistance** up to **1150°C (2100°F)**. The alloy has **tensile strength of about 600 MPa**, **yield strength of more than 240 MPa**, and **good creep and stress rupture resistance**. Incoloy 330 provides structural strength and opposes thermal fatigue, thus being appropriate for extended exposure to severe heat and corrosive environments.
| Grade | Incoloy 330 – UNS N08330 |
|---|---|
| Specification | ASTM B511 UNS N08330, AMS 5716, ASTM B511, ASME SB511 |

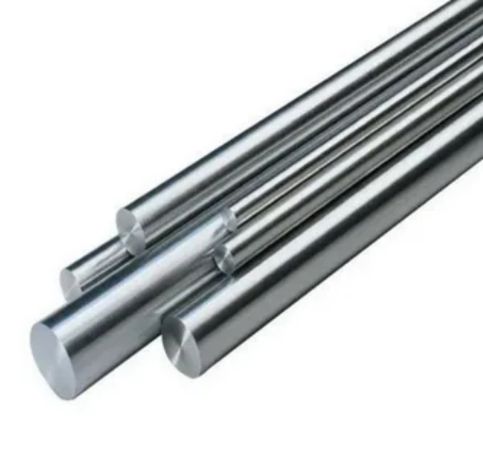

| Round bar size | Diameter: 3-~330mm |

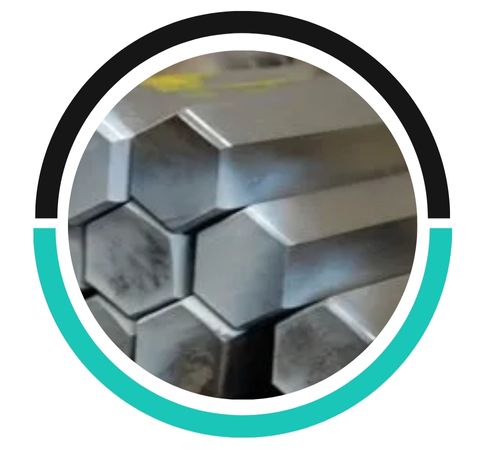

| Hex Bar size | 2-100mm A/F |

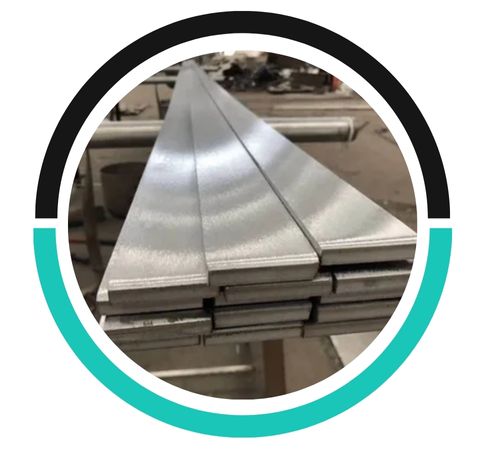

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Round Bar Standard Dimensions | Diameter / Height: |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Incoloy 330 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Incoloy 330 Rod,Channel Bar, Forging, Precision Ground Bar, Flat Bar, Round, Rod, T-Bar, Square, Blocks, Round Rod, Rings, Hollow, Threaded, Half Round Bar, Profiles, Triangle, Rectangle, Hex (A/F), Billet, Ingot, I/H Bar etc. |
| Our stockyad location for fast delivery across India | Shivamogga, Agra, Ahmedabad, Mumbai, Dhanbad, Thiruvananthapuram, Bengaluru, Tiruchirappalli, Pune, Noida, Tirunelveli, Bhubaneswar, Chennai, Coimbatore, Pimpri-Chinchwad, Hyderabad, Navi Mumbai |
| Our Incoloy 330 Round bar conforms to NACE MR0175/ISO 15156 | |
|
Element |
Average Nominal % |
|---|---|
|
Chromium |
18.00 – 22.00 |
|
Nickel |
34.00 37.00 |
|
Carbon |
0.08 Max |
|
Silicon |
1.00 – 1.50 |
|
Manganese |
2.00 Max |
|
Phosphorus |
0.03 Max |
|
Sulfur |
0.03 Max |
|
Copper |
1.00 Max |
|
Iron |
Balance |
|
Tensile Strength – ksi (min.) |
0.2% Offset Yield Strength – ksi (min.) |
Elongation in 2 inches – % (min.) |
Hardness – Rockwell B |
|---|---|---|---|
|
70 |
30 |
30 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Incoloy 330 | 1.4886 | N08330 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
**Incoloy 330 Bars/Rods** are found extensively in **industrial furnaces, heat treating equipment, petrochemical reformers, muffles, retorts, conveyor systems, and tube supports**. Due to their superior performance in cyclic heating and cooling conditions, they find application in **thermal processing, carburizing atmospheres, and chemical production plants**. These bars are also appropriate for components that are exposed to **oxidizing and nitriding atmospheres**, including those encountered in **ethanol processing, power generation**, and **waste incineration systems**. Incoloy 330’s enhanced heat and corrosion resistance guarantees long-term reliability and safety in the most severe high-temperature service applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
