Neil Metals, a Kolkata, India-based reputed manufacturer and supplier of **Hastelloy Rods and Bars**, provides **highest-grade corrosion-resistant alloy products** for the most rigorous industrial uses. It has a reputation for precision engineering and strict implementation of international standards. It provides an extensive variety of Hastelloy grades that provide superior performance in corrosive environments. These rods and bars are relied on across industries such as **chemical processing, marine, oil & gas, power generation, pharmaceuticals**, and **waste treatment**, where resistance to severe chemicals, high pressure, and high temperatures is essential.
**Hastelloy Bars and Rods** come in many grades such as **C-276, C-22, B-2, B-3, C-2000**, and **X**, which are all made primarily of **Nickel (55–70%)**, **Molybdenum (up to 30%)**, **Chromium (up to 23%)**, and trace constituents such as **Iron, Cobalt, Tungsten**, and **Vanadium** based on the respective alloy. These alloys have excellent resistance to a vast array of **oxidizing and reducing agents**, **chlorides**, **acids**, and **stress corrosion cracking**. Mechanical properties encompass **690 to 800 MPa tensile strength**, **280 to 350 MPa yield strength**, and **up to 50% elongation**, which makes them both ductile and strong.
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|

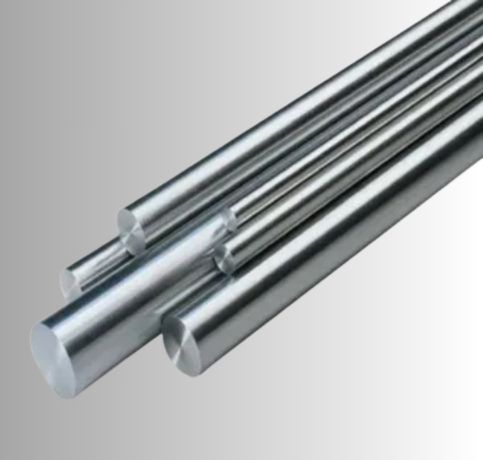

| Hastelloy Round Bar size | Diameter: 3-~800mm |

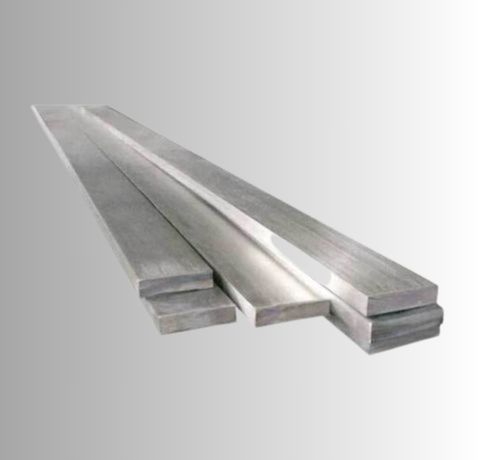

| Hastelloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hastelloy Bar Angle size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Grade | UNS | Cr | Mo | Fe | C≤ | Si≤ | Co≤ | Mn≤ | P≤ | S≤ |
| B2 | N10665 | 1.0max | 26.0-30.0 | 2.0max | 0.02 | 0.10 | 1.0 | 1.0 | 0.04 | 0.03 |
| B3 | N10675 | 1.0-3.0 | 27.0-32.0 | 1.0-3.0 | 0.01 | 0.10 | 3.0 | 3.0 | 0.03 | 0.01 |
| X | N06002 | 20.5-23.0 | 8.0-10.0 | 17.0-20.0 | 0.05-0.15 | 1.0 | 0.5-2.5 | 1.0 | 0.04 | 0.03 |
| C22 | N06022 | 20.0-22.5 | 12.5-14.5 | 3.0-6.0 | 0.015 | 0.08 | 2.5 | 0.5 | 0.02 | 0.02 |
| C2000 | N06200 | 22.0-24.0 | 15.0-17.0 | 3.0max | 0.01 | 0.08 | 2.0 | 0.5 | 0.025 | 0.01 |
| C276 | N10276 | 14.5-16.5 | 15.0-17.0 | 4.0-7.0 | 0.01 | 0.08 | 2.5 | 1.0 | 0.04 |
| Mechanical properties | Tensile, min, ksi[MPa] | Yield, min, ksi[MPa] | Elongation, %(min) |
| B2 | 110[760] | 51[350] | 40 |
| B3 | 110[760] | 51[350] | 40 |
| X | 100[690] | 40[276] | 35 |
| C22 | 100[690] | 45[310] | 45 |
| C2000 | 100[690] | 45[310] | 45 |
| C276 | 100[690] | 41[283] | 40 |
**Hastelloy Bars and Rods** are utilized to produce **valves, pumps, shafts, fasteners, heat exchanger parts, reactor vessels**, and **chemical processing equipment**. They are best suited for processes with **sulfuric acid, hydrochloric acid, chlorine gas**, and other corrosive substances in **nuclear power plants, marine installations, flue gas scrubbers**, and **pharmaceutical reactors**. The high formability, weldability, and strength of Hastelloy rods and bars make them a favorite among engineers who are developing systems that have to withstand harsh environments and yet be safe, strong, and long-lasting.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
