Neil Metals, based in Kolkata, India, is a well-known producer and supplier of **Hastelloy B3 Bars and Rods**, providing excellent corrosion-resistant alloy solutions to industries that function in extremely aggressive chemical environments. Produced according to stringent standards by employing sophisticated technology, Neil Metals ensures each Hastelloy B3 product provides superior performance, dimensional tolerance, and mechanical strength. These rods and bars are particularly well-suited for severe applications in the chemical processing, pharmaceutical, energy, and marine industries. Through a dedication to quality and customer satisfaction, Neil Metals offers dependable materials engineered for long life under the most severe service conditions.
**Hastelloy B3 Bars and Rods** (UNS N10675) are a **nickel-molybdenum alloy** that has about **65–71% Nickel**, **28.5–30.5% Molybdenum**, and minor additions of **Iron, Cobalt, Chromium, and Titanium**. This alloy offers excellent resistance against **hydrochloric acid** and a broad spectrum of **non-oxidizing acids**, enhanced thermal stability over previous B-series alloys, and the following mechanical properties: **tensile strength of ~760 MPa**, **yield strength of ~350 MPa**, and **elongation of 40–50%**. Hastelloy B3 also has good resistance to pitting, stress corrosion cracking, and knife-line and heat-affected zone attack.
| Standard | ASTM B335, ASME SB335 |

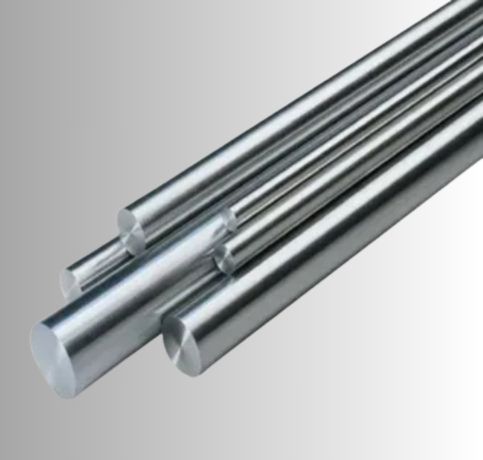

| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |

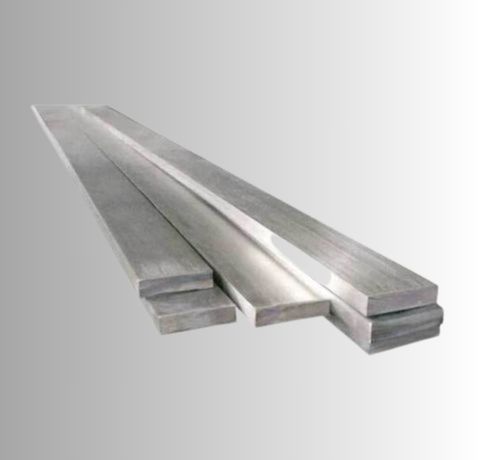

| Flat Bar Size | 2mm ~ 100mm |

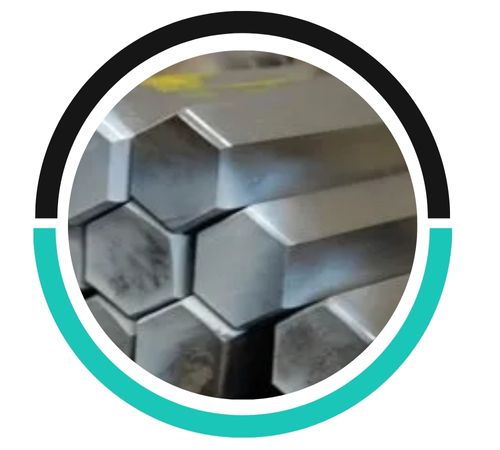

| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Mo | Cr | Fe | W | Mn | C | Al | Ti | Si |
| Hastelloy B3 | 65.0 min | 28.5 | 1.5 | 1.5 | 3.0 max | 3.0 max | 0.01 max | 0.50 max | 0.2 max | 10 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 9.2 g/cm3 | 1370 °C (2550 °F) | Psi – 1,15,000 , MPa –760 | Psi – 52,000 , MPa – 350 | 40% |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy B3 | 2.4600 | N10675 |
**Hastelloy B3 Rods and Bars** find broad application in **chemical reactors, agitators, heat exchangers, evaporators, pressure vessels**, and **valves** in equipment where **hydrochloric, sulfuric, acetic, and phosphoric acids** are used. The alloy excels when used in **pharmaceutical processing**, **pickling applications**, and **waste treatment plants**. Its resistance to localized corrosion and mechanical integrity in high-temperature service makes it an excellent choice for **chemical and petrochemical plants**, where process safety and equipment reliability are of utmost importance. Hastelloy B3 provides engineers with a reliable answer for aggressive, highly corrosive service conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
