Neil Metals, a well-respected manufacturer and supplier located in Kolkata, India, is dedicated to providing top-notch Hastelloy B2 Bars and Rods to a diverse range of industries. Known for their unwavering commitment to quality, Neil Metals ensures that their products adhere to rigorous international standards like ASTM and ASME. These bars and rods are celebrated for their exceptional corrosion resistance, particularly in reducing environments. Offered in various sizes and finishes, Hastelloy B2 Bars and Rods from Neil Metals are perfect for critical applications in sectors such as chemical processing, pharmaceuticals, power generation, and marine, where strength, reliability, and resilience against harsh conditions are essential.
The composition of Hastelloy B2 Bars and Rods primarily includes nickel (about 69%) and molybdenum (28–30%), with minimal amounts of carbon, iron, and silicon. This unique blend provides outstanding resistance to hydrochloric acid, hydrogen chloride, and other aggressive reducing chemicals. On the mechanical side, they boast a tensile strength of roughly 760 MPa, a yield strength of around 355 MPa, and an elongation of about 40%. These bars and rods maintain their structural integrity even under high stress and temperature, showcasing excellent ductility, toughness, and corrosion resistance in challenging chemical and industrial settings.
| Standard | ASTM B335, ASME SB335 |

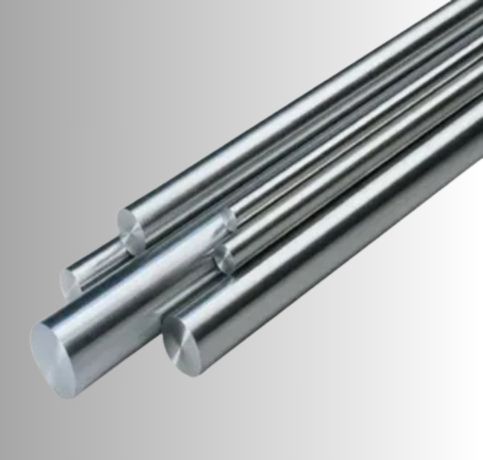

| Round Bar Size | 3mm~ 800mm |

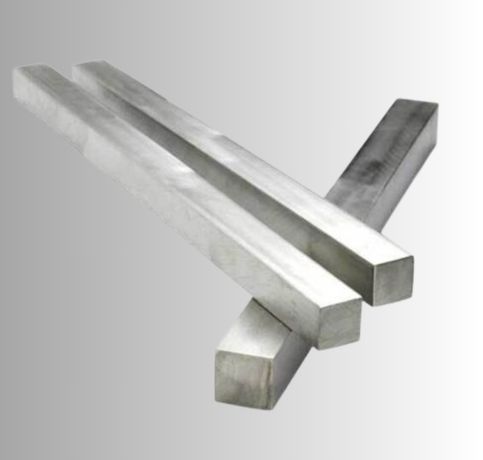

| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |

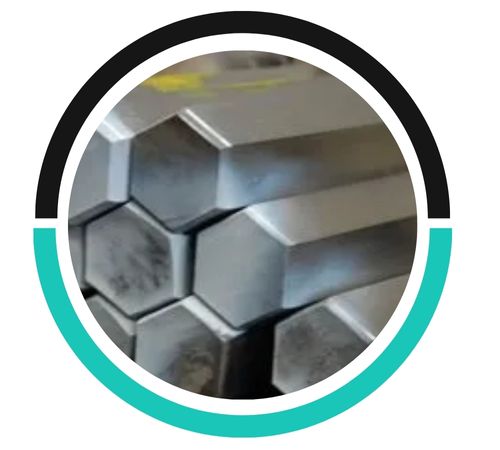

| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Mo | Cr | Fe | Mn | C | P | S | Si |
| Hastelloy B2 | Bal | 26 – 30 | 1.0 | – | 0.1 | 0.02 | 0.04 | 0.03 | 0.1 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 9.2 g/cm3 | 1370 °C (2550 °F) | Psi – 1,15,000 , MPa –760 | Psi – 52,000 , MPa – 350 | 40% |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
| Hastelloy C22 | 2.4602 | N06022 | – | – | NW 6022 | – | NiCr21Mo14W |
Yes, Hastelloy B2 rods can be welded. However, it requires proper techniques and filler materials to avoid cracking due to their sensitivity to heat-affected zones.
Hastelloy B2 bars offer exceptional resistance to hydrochloric acid and other corrosive environments, along with excellent weldability and high strength. They are highly resistant to pitting, stress corrosion, and localized corrosion.
Hastelloy B2 rods are available in various sizes, ranging from small diameters to larger rods, with common diameters including 0.125 inches to 4 inches. They typically come in a polished or cold-drawn finish, depending on the application requirements.
Hastelloy B2 Bars and Rods find extensive use in industries that deal with highly corrosive and reducing environments. In the chemical and petrochemical sectors, they are utilized in reactors, heat exchangers, and process vessels that come into contact with hydrochloric, acetic, and phosphoric acids. The pharmaceutical industry relies on them for equipment that demands contamination resistance. In power generation, they are employed in condensers, piping, and boiler systems that are exposed to harsh chemicals. Additionally, these bars are well-suited for marine applications where resistance to localized corrosion is crucial. Their durability and performance make them an excellent choice for long-term, high-stress operations in tough environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
