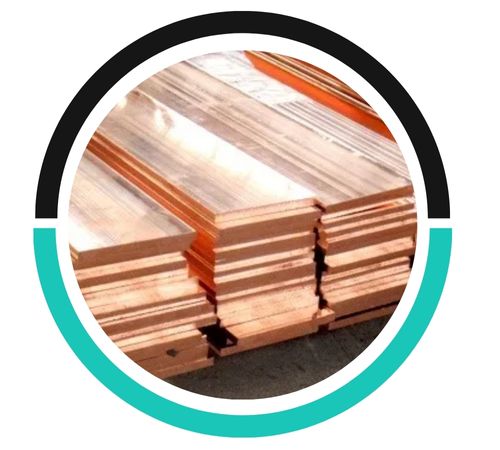

Neil Metals, located in Kolkata, India, has built a solid reputation as a reliable manufacturer and supplier of top-notch Copper Nickel Rectangular Bars. With a focus on precision engineering and a commitment to international quality standards, Neil Metals caters to a wide range of industries, including marine, oil and gas, and power generation. Their dedication to excellence means they provide bars that are not only durable but also resistant to corrosion and offer outstanding mechanical performance. By consistently delivering tailored solutions that meet specific industrial needs, Neil Metals has gained a loyal customer base and a reputation for reliability and satisfaction.
Typically, Copper Nickel Rectangular Bars are made up of 90% copper and 10% nickel, though variations like the 70/30 mix (70% Cu, 30% Ni) are also quite popular. These bars are known for their impressive corrosion resistance, particularly in saltwater environments, along with good strength and ductility. They boast a tensile strength of around 340-380 MPa and a yield strength of about 150 MPa, with an elongation of 30% or more. Their moderate thermal conductivity makes them suitable for both structural and heat-exchange applications, and their resistance to biofouling enhances their appeal in marine environments.
| Standard | ASTM B111, ASME SB111 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Metric | US Rods | ASTM/ Canadian | Japanese | ||||
|---|---|---|---|---|---|---|---|
| Rods Size | Diam. (mm) | Rods Size | Diam. (Inch) | Rods Size | Diam. (mm2) | Rods Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.600 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Rectangular Bars are customizable in terms of size, thickness, length, and alloy composition to meet specific requirements for various applications. Customization ensures optimal performance in marine, chemical, and industrial environments.
Copper Nickel Rectangular Bars find extensive use across various industries, thanks to their remarkable resistance to seawater corrosion and biofouling. In the marine sector, they are perfect for applications like shipbuilding, seawater piping, and condenser systems. The oil and gas industry relies on them for offshore platforms and heat exchangers, given their strength and durability. Additionally, they are employed in power plants, desalination units, and industrial cooling systems. Their excellent mechanical and thermal properties make them ideal for critical components that need to withstand harsh conditions over long periods.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
