Neil Metals, located in Kolkata, India, has built a solid reputation as a manufacturer and supplier of top-notch Copper C11500 Bars and Rods. With a strong dedication to precision and quality, Neil Metals ensures that their products align with global standards and industry needs. They prioritize customer satisfaction and consistent product performance, supplying Copper C11500 Bars and Rods to a variety of sectors, including electrical, construction, and industrial applications. Their advanced manufacturing process guarantees a superior finish, tight tolerances, and outstanding mechanical properties, making them a reliable partner in the non-ferrous metal industry.
Copper C11500, often referred to as electrolytic tough pitch (ETP) copper, boasts a minimum copper content of 99.9% along with trace amounts of oxygen. This unique composition provides exceptional electrical and thermal conductivity. In terms of mechanical properties, it has a tensile strength ranging from about 220 to 370 MPa, a yield strength of around 70 to 280 MPa, and elongation percentages between 15 and 45%, depending on the temper. Its hardness falls between 40 and 110 HV. These characteristics make it an ideal choice for applications that require high conductivity and moderate strength, while also ensuring good formability and corrosion resistance across various environments.
| Specification | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Size Range | 3.17 MM TO 350 MM DIA |
| Length | Random, Fix & Cut Length |

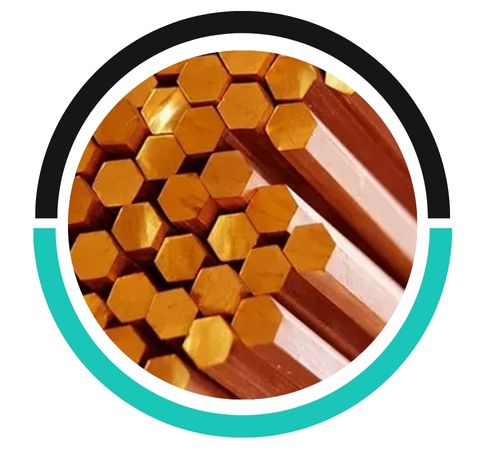

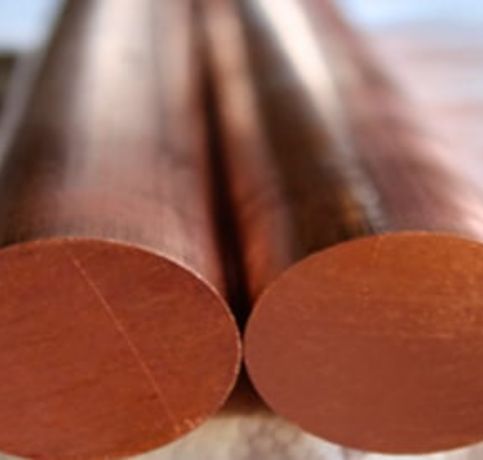

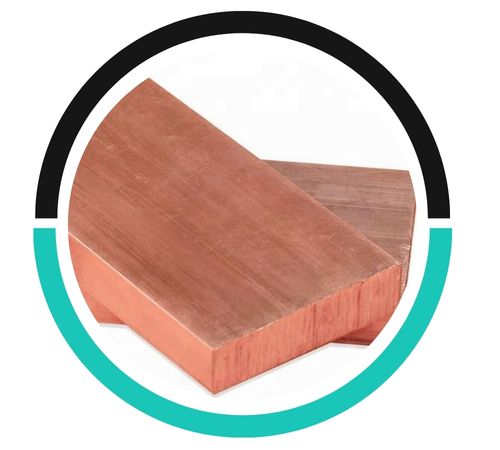

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Elements | ||
|---|---|---|
| Cu(1,2,3) | Ag(4) | |
| (1) Oxygen and trace elements may vary depending on the process. (2) This is a high conductivity copper which has, in the annealed condition a minimum conductivity of 100% IACS. (3) Cu value includes Ag. (4) Ag 0.054% min is the equivelant of, Ag 16 Troy Oz min. | ||
| Min (%) | 99.90 | 0.054 |
| Max (%) | – | – |
| Form | Temper | Temper Code | Tensile Strength (ksi) | YS-0.5% Ext (ksi) | Elongation (%) | Rockwell B scale | Rockwell F scale | Rockwell 30T scale | Shear Strength (ksi) | Section Size (in) | Cold Work (%) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| * Measured at room temperature, 68°F (20°C). | |||||||||||
| Rod | As Hot Rolled | M20 | 32 Typ | 10 Typ | 55 Typ | 40 Typ | 22 Typ | 1 | |||
| Hard | H04 | 55 Typ | 50 Typ | 10 Typ | 60 Typ | 94 Typ | 29 Typ | 0.25 | 40 | ||
| Hard | H04 | 45 Typ | 40 Typ | 20 Typ | 45 Typ | 85 Typ | 26 Typ | 2 | 16 | ||
| Hard | H04 | 48 Typ | 44 Typ | 16 Typ | 47 Typ | 87 Typ | 27 Typ | 1 | 35 | ||
| Nominal Grain Size 0.050 mm | OS050 | 32 Typ | 10 Typ | 55 Typ | 40 Typ | 22 Typ | 1 | ||||
Yes, Copper C11500 Bars and Rods can be susceptible to galvanic corrosion when in contact with dissimilar metals, especially in the presence of an electrolyte. Proper insulation or coatings can prevent this.
Yes, Copper C11500 Bars and Rods are suitable for hygienic and sanitary applications due to their natural antimicrobial properties. However, regular maintenance and cleaning are essential to maintain hygiene standards.
Copper C11500 Bars and Rods can be used for natural gas applications, offering excellent corrosion resistance and conductivity. However, they may require additional protective coatings in specific environments to prevent corrosion.

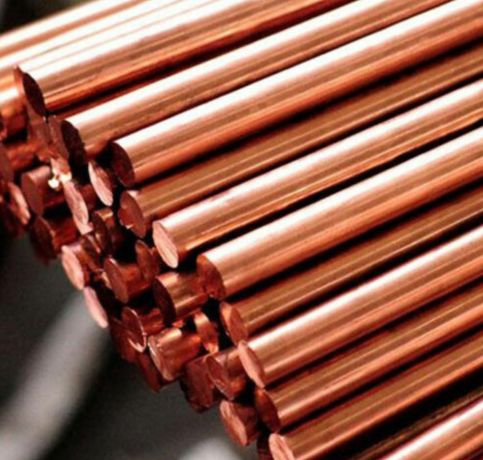

Copper C11500 Bars and Rods find extensive use in electrical applications, such as conductors, bus bars, and motor components, thanks to their impressive electrical conductivity. They are also utilized in architectural structures, plumbing systems, and heat exchangers due to their excellent thermal performance and resistance to corrosion. Industries like automotive, electronics, and renewable energy reap the benefits of these rods for their machinability and durability. Furthermore, they are essential in the fabrication of industrial machinery and grounding systems, where consistent performance and structural integrity are crucial for reliable operation.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
