Copper C10300 Bars/Rods

Neil Metals, located in Kolkata, India, has built a solid reputation as a manufacturer and supplier of top-notch Copper C10300 Bars and Rods, serving a wide range of industrial needs. They’re well-known for their high-purity, oxygen-free copper products, which guarantee excellent electrical and thermal conductivity, along with impressive workability and resistance to corrosion. With cutting-edge manufacturing techniques, rigorous quality checks, and a strong focus on customer satisfaction, Neil Metals caters to clients in the electrical, electronics, aerospace, and medical fields. They provide Copper C10300 Bars and Rods in various sizes and specifications, ensuring they meet both domestic and international standards while delivering reliable performance and prompt service.

C10300 Copper Round Bars India, Copper C10300 Hexagonal Bars Supplier in Kolkata, C10300 Copper Bus Bars Exporter in India, Copper C10300 Hex Bars Stockist in Kolkata, C10300 Copper Alloy Rectangular Bars Supplier in India,Copper C10300 Square Bars Distributor in Kolkata, 3/16" Copper C10300 Rod Stockist India, C10300 3/8" Copper Alloy Round Rod Price in India, Copper Flat Bars India

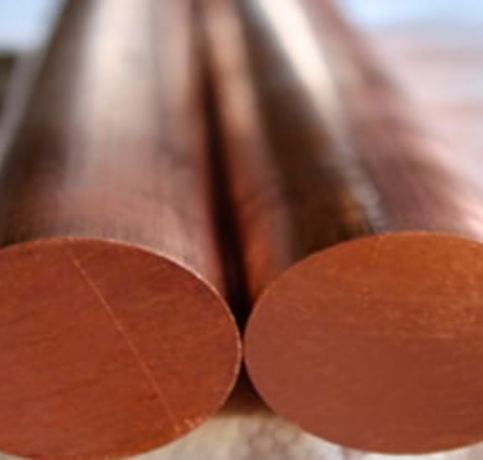

Copper C10300 Forging Rod

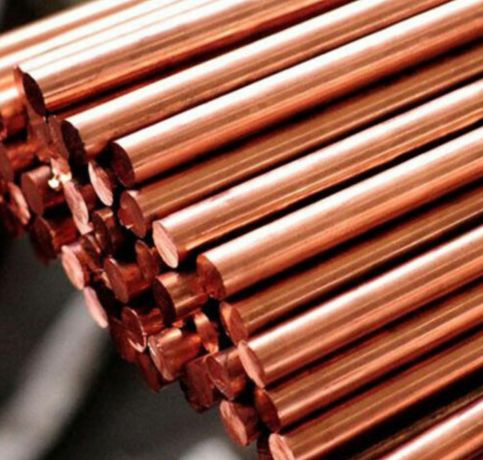

Copper C10300 Bus Bars

C10300 Copper Bright Rods

What is Copper C10300 Bars and Rods

These Copper C10300 Bars and Rods are crafted from oxygen-free electronic (OFE) copper, boasting a minimum copper content of 99.95%. They stand out for their remarkable electrical conductivity (over 101% IACS), excellent thermal conductivity, and strong resistance to hydrogen embrittlement. Their mechanical properties include a tensile strength ranging from 220 to 250 MPa and a yield strength of about 70 to 100 MPa, along with great ductility and workability. The lack of oxygen and impurities guarantees top-notch performance in high-conductivity and high-vacuum applications where purity and reliability are essential.

C10300 Copper Forging Rod Price List in Kolkata, Copper C10300 Threaded Bars Supplier in India, Copper C10300 Copper Hexagonal Bars Exporter in Kolkata, C10300 Pure Copper Rods Exporter in India, C10300 Copper Round Bars Manufacturer in India, Copper C10300 Round Bars Distributor in India, C10300 Copper Half Round Bars Dealer in Kolkata, Stockist of C10300 Copper Forged Bar in India, 20mm Copper C10300 Round Bar Supplier in India, C10300 Oxygen Free Copper Rectangle Rods Exporter in Kolkata

Copper C10300 Bar/Rods Specifications

Specifications	ASTM B187, ASTM B301 / ASME SB187, SB301
Range	3.17 MM TO 350 MM DIA
Form	Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Copper Grades	C10300

Copper C10300 Bar and Rods Thermal Properties

Treatment	Maximum*	Minimum*
* Temperature is measured in Fahrenheit.
Hot Working Temperature	1600	1400
Annealing	1200	700

Copper Alloy C10300 Rods Equivalent

Alloy Designation
DIN CEN/TS 13388	CW021A
EN	Cu-HCP
UNS	C10300

You Need Our Support, to Have Any Projects?

Copper C10300 Bars & Rods Physical Properties

Typical values in annealed temper at 20 °C
Thermal expansion coefficient	20 .. 300 °C	16.9	10-6/K
Density		8.92 g/cm³
Thermal conductivity		385	W/(m·K)
Modulus of elasticity	GPa	130	GPa
Specific heat capacity		0.385 J/(g·K)
Electrical conductivity	IACS	98 %
Electrical conductivity	MS/m	57	MS/m
Thermal coefficient of electrical resistance	(0 .. 100 °C)	3.7	10-3/K

Test Certificate

Why Neil Metals?

Packaging

Copper C10300 Bar/Rods Mechanical Properties

Tensile Strength Rm	Hardness HV *	Temper	Yield Strength Minimum Rp0.2	Elongation Minimum A50mm	Bending 90° gw bw rel. Bending Radius R/T
Mechanical Properties (EN 1652)
MPa	HV		MPa %		Strip Thickness ≤ 0.50mm
≥ 360	≥ 110	R360	320	2	0	0.5
240 .. 300	65 .. 95	R240	180	8	0	0
220 .. 260	40 .. 65	R220	≤ 140 *	33	0	0
290 .. 360	90 .. 110	R290	250	4	0	0

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper C10300 Bar/Rods Types

C10300 Wrought Copper Alloy Rod & Bar Size Chart, C10300 Copper Round Rods Price in India, Copper C10300 Round Bars Supplier in Kolkata, C10300 Copper Bus Bar Stockist in India, Copper C10300 Half Round Bar Supplier in Kolkata, C10300 Copper Forged Bar Dealer in Kolkata, 20mm Copper C10300 Round Bar Manufacturer in Kolkata, C10300 Copper Round Rods Supplier in Kolkata

Frequently Asked Questions (FAQ)

How Do I Select The Right Copper C10300 Bars and Rods For My Application?

To select the right Copper C10300 Bars and Rods, consider factors such as conductivity, corrosion resistance, strength requirements, and the specific environmental conditions of your application.

Are Copper C10300 Bars and Rods are Recyclable?

Yes, Copper C10300 Bars and Rods are fully recyclable, retaining their properties even after recycling, making them an eco-friendly option for sustainable industrial applications.

Can Copper C10300 Bars and Rods Be Used For Potable Water Applications?

Yes, Copper C10300 Bars and Rods can be used for potable water applications due to their corrosion resistance, antimicrobial properties, and compliance with drinking water standards.

Copper C10300 Bar/Rods Uses

Copper C10300 Bars and Rods find extensive use in areas that require high conductivity, purity, and resistance to embrittlement. They play a crucial role in the electrical and electronics industries for making busbars, anodes, connectors, and components for vacuum tubes. In aerospace and defense, these rods are vital for applications that need low outgassing and high conductivity, such as satellite systems and cryogenic devices. They’re also utilized in medical equipment, semiconductors, and precision instrumentation. Copper C10300 is perfect for environments that require dependable performance under high thermal and electrical loads with minimal contamination.
