Neil Metals, a well-respected manufacturer and supplier located in Kolkata, India, is dedicated to delivering top-notch Copper C10100 bars and rods. With a solid reputation for quality and dependability, the company provides precision-engineered products that adhere to international standards. Copper C10100, often referred to as OFHC (Oxygen-Free High Conductivity) copper, is celebrated for its exceptional electrical and thermal conductivity, making it perfect for demanding industrial applications. Neil Metals prioritizes strict quality control and timely delivery, serving clients across various sectors, including electrical, electronics, and engineering, and establishing itself as a reliable partner for copper-based solutions.

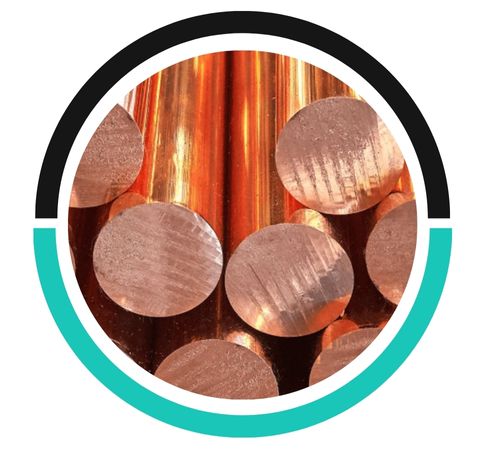

The Copper C10100 bars and rods consist of 99.99% pure copper with very low oxygen content, ensuring outstanding conductivity and resistance to corrosion. Their mechanical properties feature a tensile strength of around 220–400 MPa, yield strength of 50–400 MPa, and impressive elongation between 30–50%, depending on the temper. This material also showcases remarkable ductility, thermal conductivity exceeding 390 W/m·K, and a hardness range of 40–110 HB. These attributes make Copper C10100 an excellent choice for applications that demand high purity, superior conductivity, and great forming capabilities.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

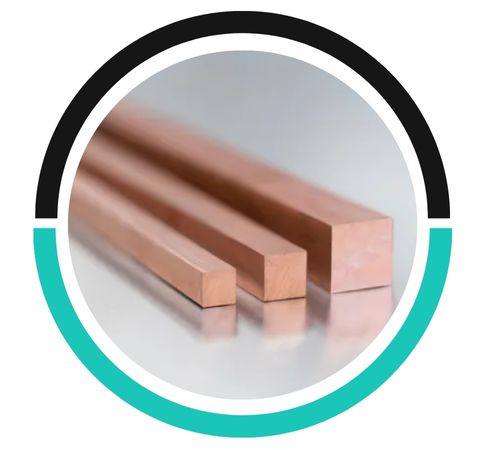

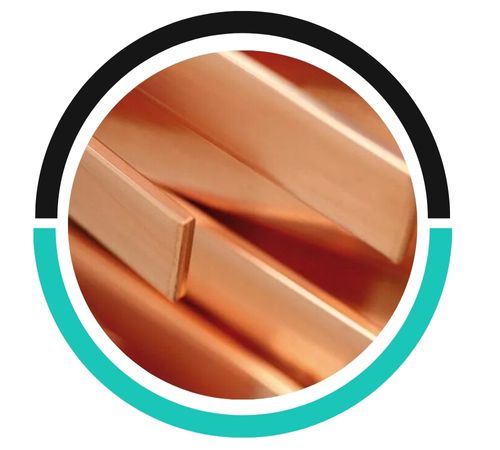

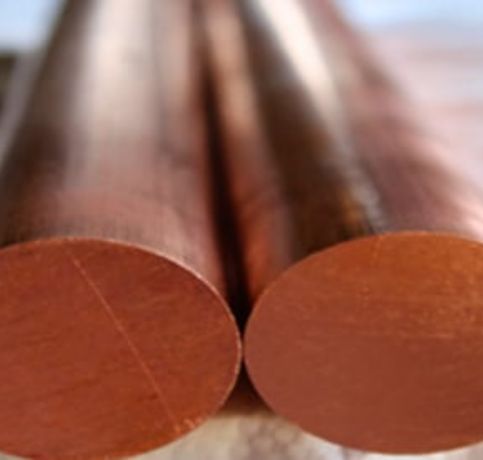

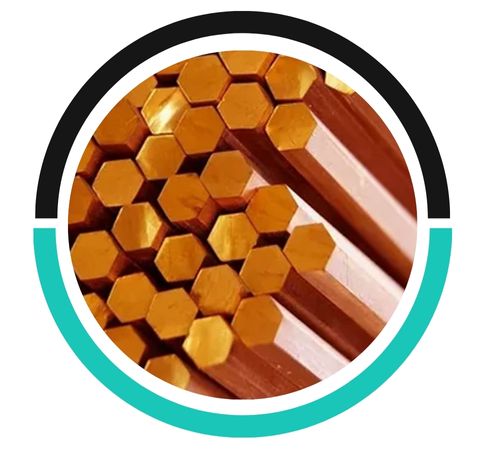

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10100 |
| Size in mm | Size in inch |
|---|---|
| .0938 | 3/32 |
| .125 | 1/8 |
| .1875 | 3/16 |
| .250 | 1/4 |
| .2813 | 9/32 |
| .3125 | 5/16 |
| .375 | 3/8 |
| .4375 | 7/16 |
| .500 | 1/2 |
| .5625 | 9/16 |
| .625 | 5/8 |
| .6875 | 11/16 |
| .750 | 3/4 |
| .8125 | 13/16 |
| .875 | 7/8 |
| .9375 | 15/16 |
| 1 | 1 |
| 1.0625 | 1-1/16 |
| 1.125 | 1-1/8 |
| 1.1875 | 1-3/16 |
| 1.250 | 1-1/4 |
| 1.3125 | 1-5/16 |
| 1.375 | 1-3/8 |
| 1.500 | 1-1/2 |
| 1.625 | 1-5/8 |
| 1.750 | 1-3/4 |
| 1.8125 | 1-13/16 |
| 1.875 | 1-7/8 |
| 2 | 2 |
| 2.250 | 2-1/4 |
| 2.500 | 2-1/2 |
| 2.625 | 2-5/8 |
| 2.750 | 2-3/4 |
| 3 | 3 |
| 3.250 | 3-1/4 |
| 3.500 | 3-1/2 |
| 4 | 4 |
| 4.500 | 4-1/2 |
| 5 | 5 |
| 6 | 6 |
| Diameter of round bar in milimeter | Kilogram/meter |
|---|---|
| 3 | .064 |
| 5 | .179 |
| 6 | .257 |
| 8 | .448 |
| 10 | .715 |
| 12 | 1.029 |
| 15 | 1.575 |
| 16 | 1.78 |
| 20 | 2.79 |
| 25 | 4.375 |
| 28 | 5.48 |
| 30 | 6.27 |
| 35 | 8.575 |
| 40 | 11.2 |
| 45 | 14.175 |
| 50 | 17.46 |
| Grade | Sn | Sb | Bi | Zn | Pb | P | Ni | As | Fe | S | O |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNS C10100 | .002 | .002 | .001 | .003 | .003 | .002 | .002 | .002 | .004 | .004 | .002 |
Yes, Copper C10100 Bars and Rods are fully recyclable. Copper retains its properties after recycling, making it an environmentally friendly material for sustainable industrial use.
Yes, Copper C10100 Bars and Rods can be used for natural gas applications due to their excellent corrosion resistance and suitability for non-aggressive gas environments, ensuring reliable performance.
Common grades of copper used in bars and rods manufacturing include C10100 (oxygen-free copper), C11000 (electrical copper), and C10200 (semi-oxygen-free copper), each offering varying conductivity and corrosion resistance.

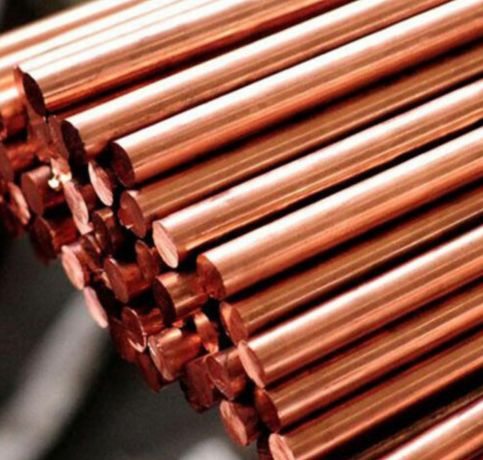

Copper C10100 bars and rods are extensively utilized across various industries due to their remarkable electrical and thermal conductivity. In the electrical sector, they are perfect for busbars, connectors, and grounding systems. Their high purity and resistance to hydrogen embrittlement make them ideal for vacuum and high-frequency electronic applications. They also find use in cryogenic systems, heat exchangers, and semiconductor manufacturing equipment. Furthermore, their formability and corrosion resistance make them suitable for architectural, plumbing, and marine environments. These features position Copper C10100 as a versatile material for both standard and specialized industrial requirements.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
