Neil Metals, located in Kolkata, India, stands out as a leading manufacturer and supplier of top-notch copper bars and rods. With a reputation for precision engineering and a strong commitment to excellence, Neil Metals provides high-quality copper products designed to meet a wide range of industrial needs. The company places a significant emphasis on quality assurance, catering to a diverse clientele across various sectors, including electrical, construction, and manufacturing. Their copper bars and rods are crafted using cutting-edge technology and rigorous quality controls, ensuring they are durable, conductive, and perform exceptionally well. In the Indian metal industry, Neil Metals is well-regarded for its reliability, prompt delivery, and customer-focused approach.
These copper bars and rods are primarily made from pure copper, boasting a minimum copper content of 99.9%, which guarantees outstanding thermal and electrical conductivity. On a mechanical level, these products showcase impressive tensile strength, ductility, and resistance to corrosion. Typical mechanical properties include a tensile strength ranging from 200 to 250 MPa and an elongation of about 30% or more, depending on the specific grade and temper. The rods and bars maintain their structural integrity under various conditions, making them perfect for forming, machining, and welding. Their consistent performance under mechanical stress makes them ideal for demanding industrial and electrical applications.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Material | Copper |
| ETP GRADE | |
|---|---|

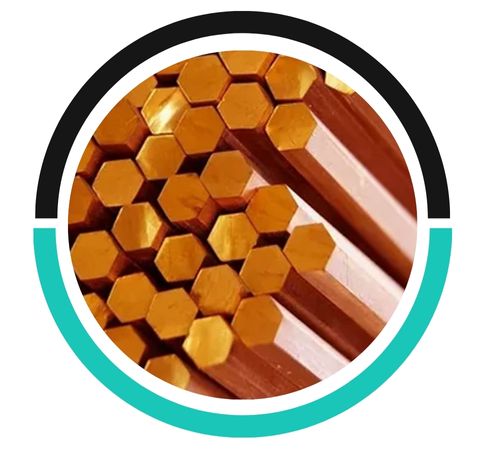

| Copper Hex Bar | ø 8 mm to 110 mm |
| Copper Round | ø 7 mm to 120 mm |

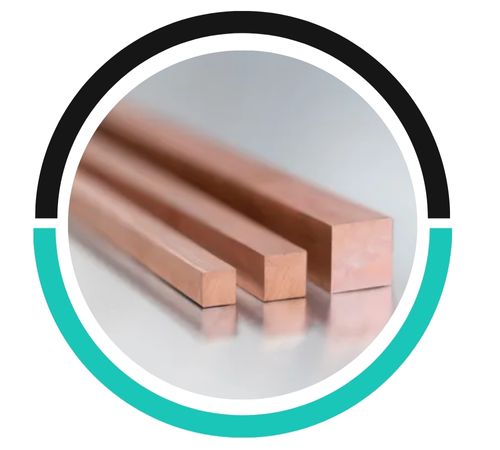

| Copper Square Bar | 10*10 mm to 90*90 mm |
| Electrical Conductivity: – (% IACS) | 98.5% min |
| Standards | BS EN 13601:2013, IS: 191, 1897 & 613 |
| Specifications | Cu : 99.90%, 02<400ppm |
| Copper Round Rod C101 | |
|---|---|
| 6.3mm (1/4″) | 38.1mm (1 1/2″) |
| 9.5mm (3/8″) | 30mm |
| 12.7mm (1/2″) | 25.4mm (1″) |
| 12mm | 25mm |
| 10mm | 20mm |
| 16mm | 19mm (3/4 |
| Diameter in mm | Weight in Kg/m |
|---|---|
| 8 | 0,447 |
| 6 | 0,252 |
| 9,5 | 0,631 |
| 12 | 1,007 |
| 11 | 0,846 |
| 60 | 25,164 |
| 12,5 | 1,092 |
| 14 | 1,370 |
| 42 | 12,330 |
| 13 | 1,181 |
| 70 | 34,251 |
| 16 | 1,789 |
| 80 | 44,736 |
| 38 | 10,094 |
| 35 | 8,563 |
| 50 | 17,475 |
| 40 | 11,184 |
| 20 | 2,796 |
| 19 | 2,523 |
| 22 | 3,383 |
| 28 | 5,480 |
| 30 | 6,291 |
| 25 | 4,369 |
| 32 | 7,158 |
| 45 | 14,155 |
| Molecular Weight | 63.55 |
|---|---|
| Boiling Point | 2567 °C |
| Melting Point | 1083.4 °C |
| Density | 8.96 g/cm3 |
| Electrical Resistivity | 1.678 microhm-cm @ 20 °C |
| Appearance | Reddish Metal |
| Young’s Modulus | 110–128 GPa |
| Solubility in H2O | N/A |
| Heat of Fusion | 3.11 Cal/gm mole |
| Electronegativity | 1.9 Paulings |
| Poisson’s Ratio | 0.34 |
| Heat of Vaporization | 72.8 K-cal/gm atom at 2567 °C |
| Tensile Strength | N/A |
| Specific Heat | 0.092 Cal/g/K @ 25 °C |
| Thermal Expansion | (25 °C) 16.5 µm·m-1·K-1 |
| Thermal Conductivity | 4.01 W/cm/K @ 298.2 K |
| Vickers Hardness | 369 MPa |
Yes, Copper Bars and Rods can be susceptible to galvanic corrosion when in contact with dissimilar metals, particularly in the presence of moisture or electrolytes. Proper insulation helps prevent this.
Yes, Copper Bars and Rods are fully recyclable. The material retains its properties after recycling, making it an eco-friendly choice for sustainable industrial applications and reducing environmental impact.
Yes, Copper Bars and Rods can be used for natural gas applications. They offer excellent corrosion resistance and conductivity, making them suitable for gas systems, provided they are properly maintained.
Copper bars and rods are extensively utilized across different industries due to their remarkable conductivity, malleability, and corrosion resistance. In the electrical sector, they play a crucial role in the production of busbars, grounding systems, connectors, and switchgear components. In construction, they are commonly used for plumbing, roofing, and architectural elements. The manufacturing industry relies on copper rods for creating fasteners, machine parts, and heat exchangers. They are also employed in renewable energy systems, such as solar and wind installations. Their versatility, along with their recyclability, makes copper bars and rods a sustainable choice for contemporary industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
