Neil Metals is a well-respected manufacturer and supplier of Carbon Steel Bright Bars and Rods, proudly based in Kolkata, India. With a strong focus on quality and precision, this company specializes in crafting high-strength, dimensionally accurate carbon steel bars that cater to a wide range of industrial needs. Over the years, Neil Metals has built a solid reputation in the steel industry for consistently delivering products that adhere to both national and international standards. Supported by modern infrastructure and a team of skilled professionals, they guarantee timely deliveries, unwavering quality, and competitive pricing, serving various sectors including automotive, construction, engineering, and fabrication, both in India and around the globe.
When it comes to Carbon Steel Bright Bars and Rods, they typically have a carbon content that ranges from 0.15% to 0.60%, along with small amounts of manganese, silicon, and other elements. These bars are known for their impressive mechanical properties, such as high tensile strength, good ductility, and exceptional toughness. Depending on the specific grade, tensile strength can range from 400 to 800 MPa, with yield strength falling between 250 to 600 MPa. Their machinability and hardness can be improved through cold working or heat treatment, making them perfect for applications that demand strength, wear resistance, and dimensional stability under stress.

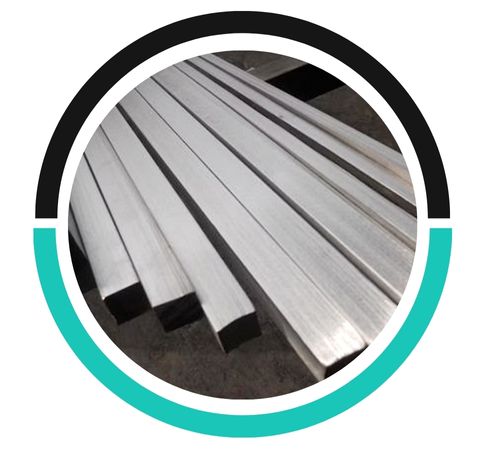

Carbon Steel Bright Square Bar Size: 4 to 100mm

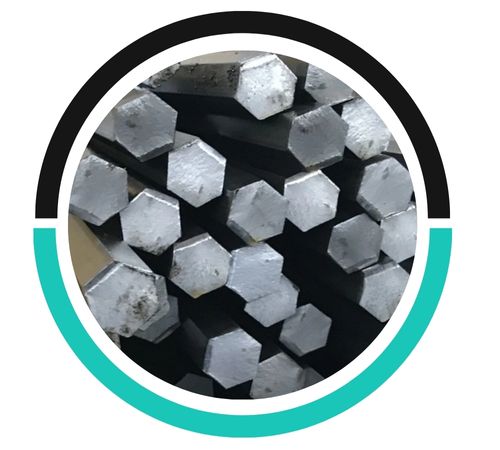

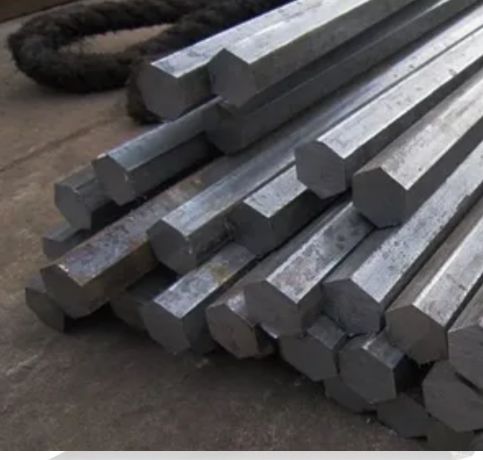

Steel Low Carbon Bright Hex Bar Sizes : 2 to 100 mm A/F
Medium Carbon Steel Bright Angle Bar Size : 3*20*20~12*100*100 mm
Quenching High Carbon Steel Billet Sizes : 1/2″ – 495 mm Dia
Killed Carbon Steel Bright Cold Drawn Bar Processing : Bar cutting to 650mm
Plain Carbon Steel Section Bar Size Range : 3 to 12 mm thickness
| Carbon Steel Grades | C | Mn | Si | S Max. | P Max. |
|---|---|---|---|---|---|
| Ck 45 | 0.42/0.50 | 0.50/0.80 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 55 | 0.52/0.60 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 60 | 0.57/0.65 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| SAE1006 | 0.08 max | 0.25/0.40 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1008 | 0.10 max | 0.30/0.50 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1010 | 0.08/0.13 | 0.30/0.60 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1018 | 0.15/0.20 | 0.60/0.90 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1020 | 0.18/0.23 | 0.30/0.60 | 0.10/0.30 | 0.09 | 0.04 |
| SAE1030 | 0.28/0.34 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1035 | 0.32/0.38 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1040 | 0.37/0.44 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1045 | 0.40/0.50 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| En-8D | 0.40/0.45 | 0.70/0.90 | 0.05/0.35 | 0.06 | 0.06 |
| En-9 | 0.50/0.60 | 0.50/0.80 | 0.05/0.35 | 0.06 | 0.06 |
| Grade | Yield Strength, | Tensile Strength, | Elongation at Break (in 50 mm) | Bulk Modulus (typical for steel) | Modulus of Elasticity | HBW | Poissons Ratio | Fatigue strength coefficient, of (Mpa) | Shear Modulus | Impacting Energy | Reduction of area, min: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| a36 | 250 MPa | 400 – 550 MPa | 23.00% | 140 GPa | 200 GPa | 0.26 | 79.3 GPa | ||||
| 36300 psi | 58000 – 79800 psi | 23.00% | 20300 ksi | 29000 ksi | 0.26 | 11500 ksi | |||||
| EN45 | 35 (241) | 80 (551) | 40% | 204 Gpa | 948 | ≥63 | |||||
| EN19 | ≥930 Mpa | ≥1080 Mpa | ≥12 | 217 | ≥45 | ||||||
| 105 | 36,000 psi [250 MPa] | 70,000 psi (485 MPa] | 187 | 30% min | |||||||
| EN8 | ≥210 | ≥380 | ≥25 | ≤111HB | ≥50 |
Yes, carbon steel bright bars can attract magnets. Carbon steel is generally magnetic due to its iron content, which exhibits magnetic properties when in a solid, non-alloyed form.
Carbon steel bright bars and rods come in various grades, including mild steel, medium carbon steel, high carbon steel, alloy steel, and tool steel. These types vary in strength, hardness, and flexibility.
Yes, carbon steel bright bars can be recycled after use. The recycling process involves melting down the material, removing impurities, and then reusing it to produce new steel products.
Carbon Steel Bright Bars and Rods find extensive use in various industrial applications thanks to their strength, precision, and versatility. In the automotive sector, they are commonly used to manufacture shafts, axles, and fasteners. In construction, they play a vital role in structural frameworks, support systems, and reinforcement components. Their excellent machinability makes them ideal for creating precision components in engineering and machinery. Additionally, these rods are utilized in tools, hardware, and fabrication units. Their combination of durability, corrosion resistance, and formability ensures they perform reliably in both high-load and high-wear environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
